| Specifications | |||

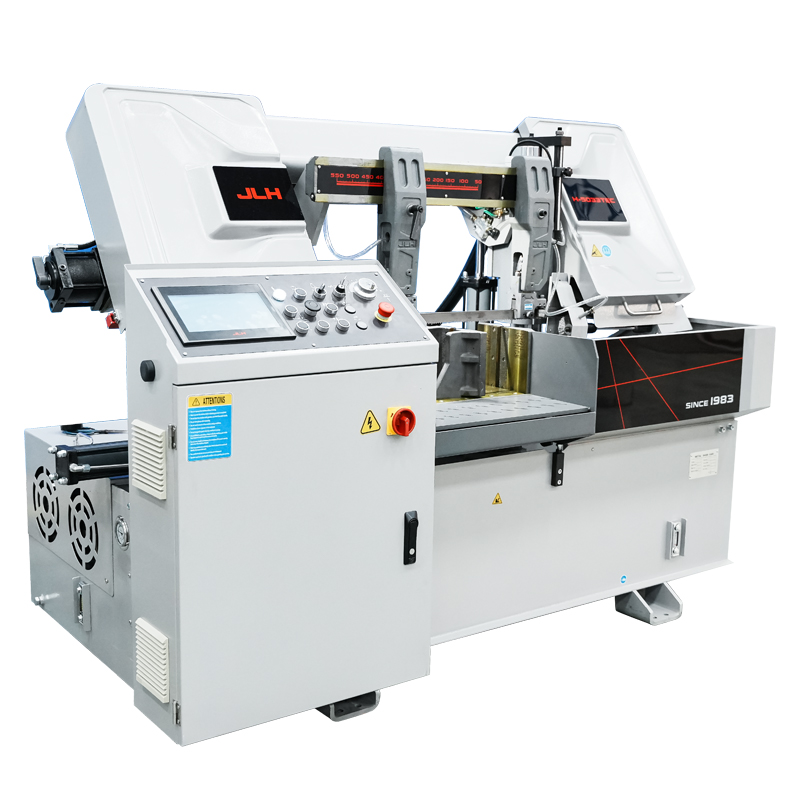

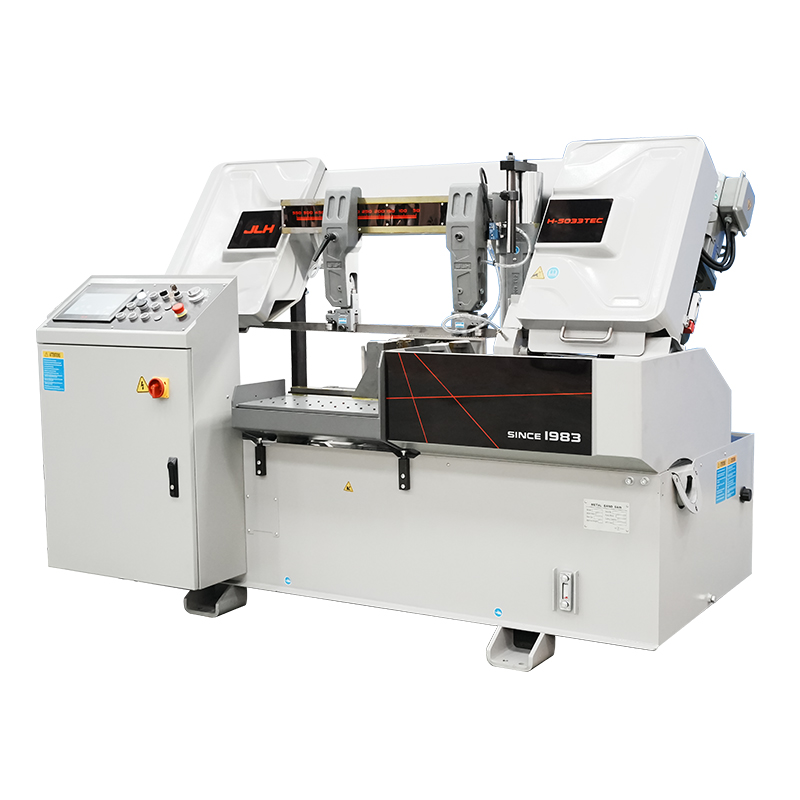

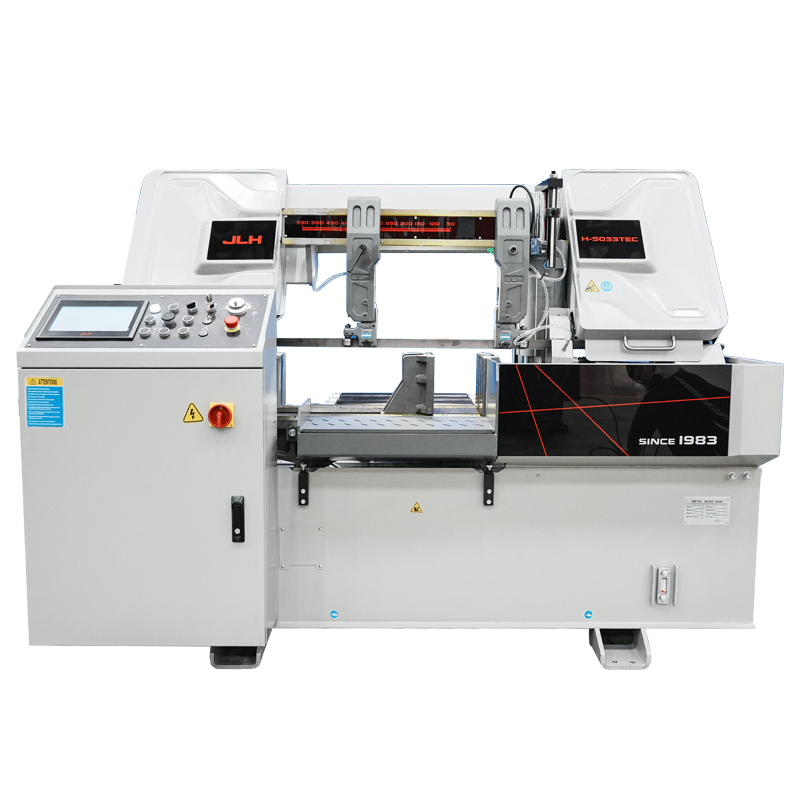

| H-5033TEC | |||
Cutting range | Cutting range round | Ø330mm | Ø13in |
Cutting range square (W x H) | 500*330mm | 19.7*13in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-500mm | 0-19.7in | |
| Dimensions and weight | Length | 1350mm | 53.2in |
| Width incl. chip conveyor | 2710mm/ | 106.7in | |
| Height | 1760mm/ | 69.3in | |
| Material support height | 750mm/ | 29.5in | |
Total weight | ≈1600kg | ≈3527lb | |
| Performance characteristics | Total connected load | 6.2kw/ | 8.27hp |
Power of saw motor | 5kw/ | 6.66hp | |
Hydraulic motor | 0.75kw/ | 1hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Dimensions of saw blade | 4420*34*1.1mm | 174 *1.3*0.04in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-5033TEC |
| Saw Feed System | Saw Master | ● |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ○ | |
| HMI+Buttons | ● | |
| Inverter | ● | |
| Deviation detector | ○ | |
| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Hydraulic blade guide clamping | ○ | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Hydraulic cooling fan | ● | |
| Mechanical structure | Main drive precision gear reducer | ● |
| Split Vise clamping | ● | |
| Chip collection box 40(L) | ● | |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
