| Specifications | |||
| H-7043TEC | |||
Cutting range | Cutting range round | Ø430mm | Ø17in |
Cutting range square (W x H) | 700*430mm | 27.5*17in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-700mm | 0-27.5in | |
| Dimensions and weight | Length | 1350mm | 53.2in |
| Width incl. chip conveyor | 3330mm | 131.1in | |
| Height | 2010mm | 79.1in | |
| Material support height | 750mm | 29.5in | |
Total weight | ≈2400kg | ≈5291lb | |
| Performance characteristics | Total connected load | 8.7kw | 11.6hp |
Power of saw motor | 7.5kw | 10hp | |
Hydraulic motor | 0.75kw | 1hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Dimensions of saw blade | 5750*41*1.3mm | 226.4 *1.6*0.05in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-7043TEC |
| Saw Feed System | Saw Master | ● |

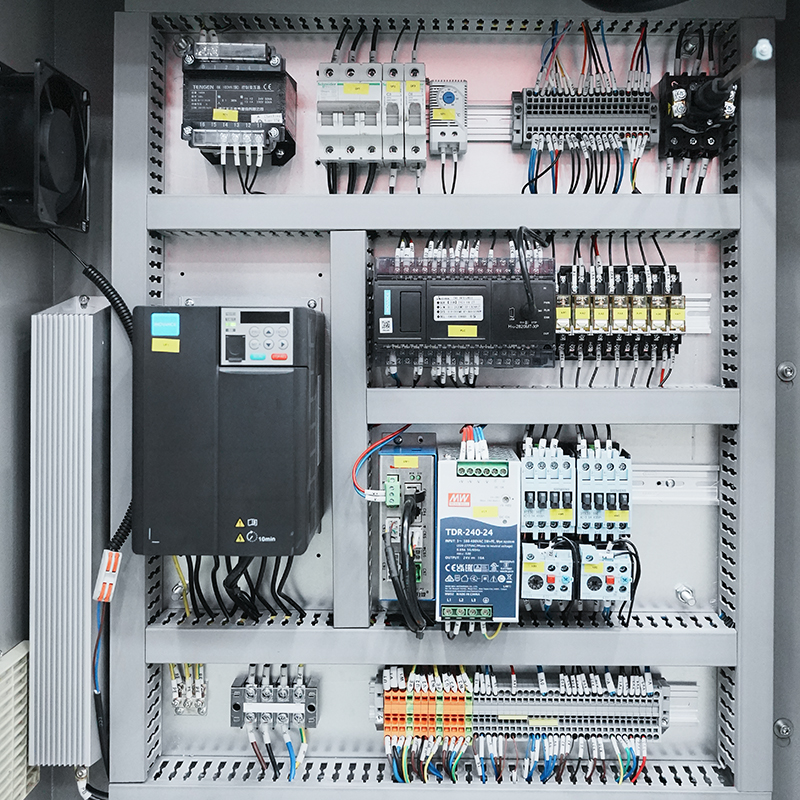

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ○ | |
| HMI+Buttons | ● | |
| Inverter | ● | |
| Deviation detector | ○ | |

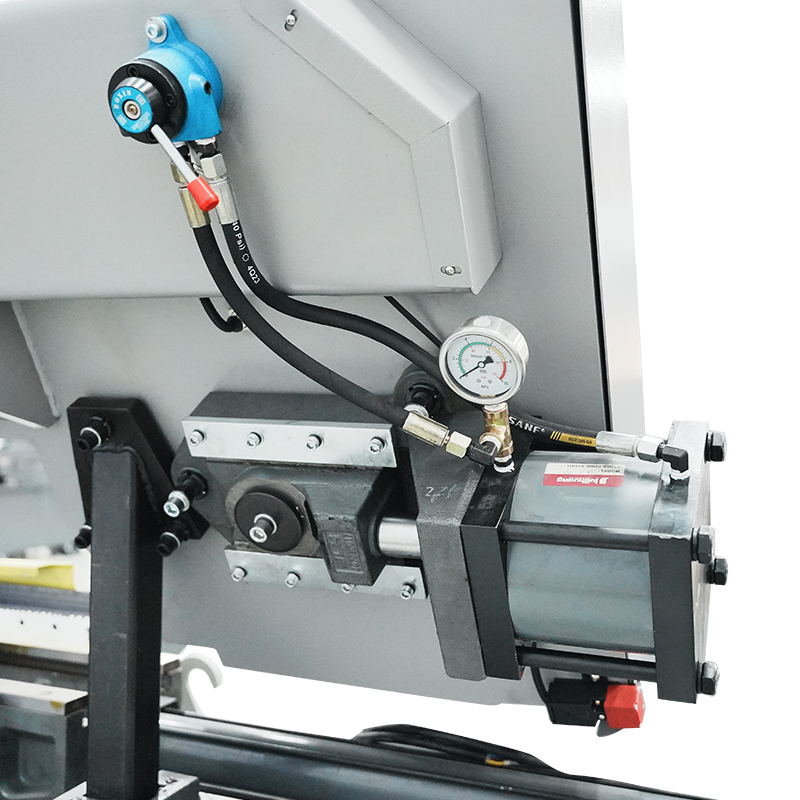

| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Hydraulic blade guide clamping | ○ | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Hydraulic cooling fan | ● | |
| Mechanical structure | Main drive precision gear reducer | ● |

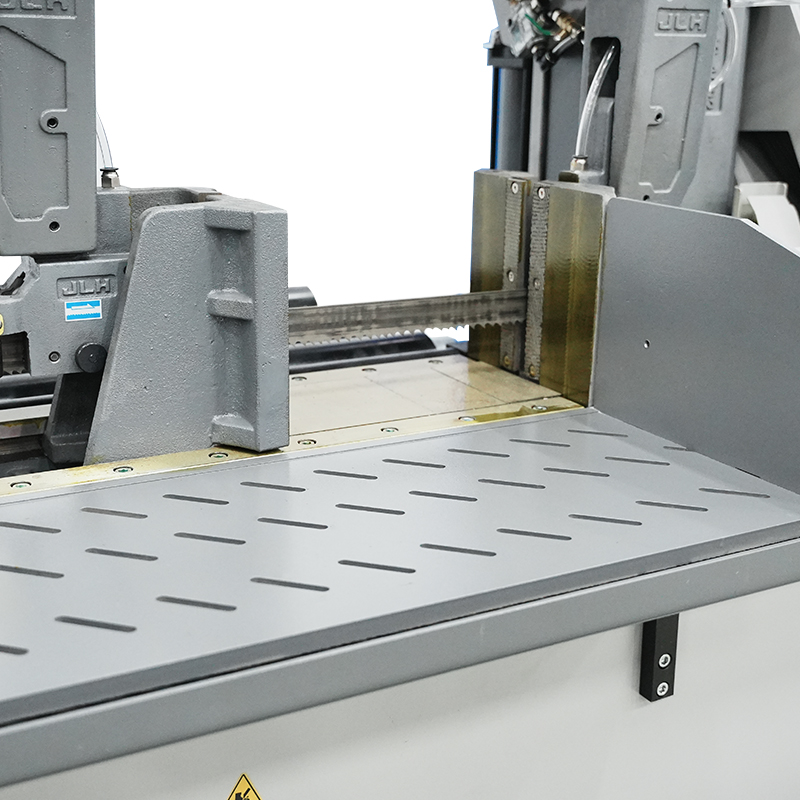

| Split Vise clamping | ● | |
| Chip collection box 40(L) | ● | |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
