- Specifications
- Configuration Table
| Specifications | |||

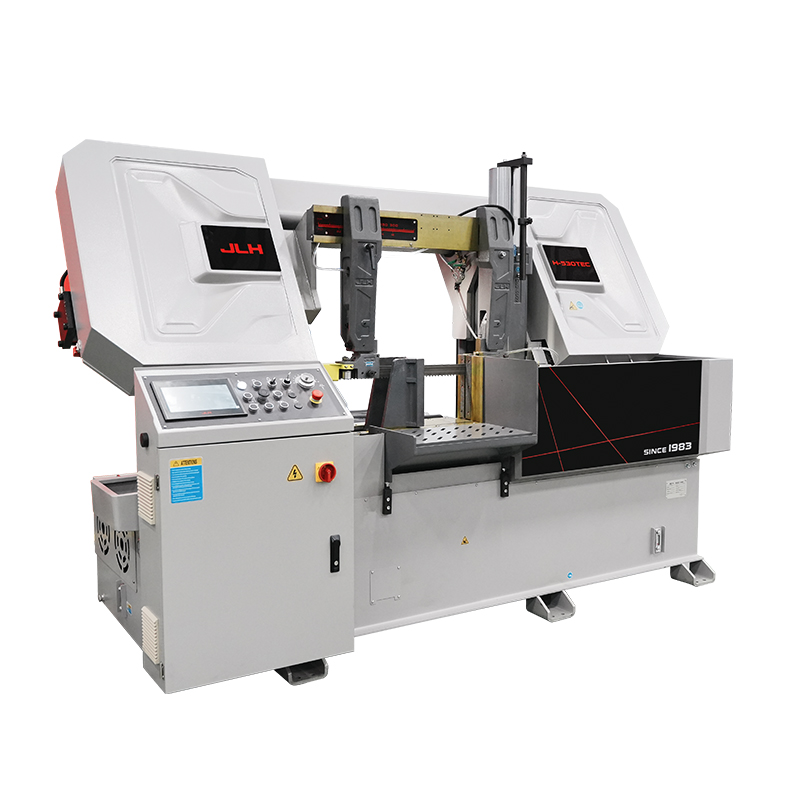

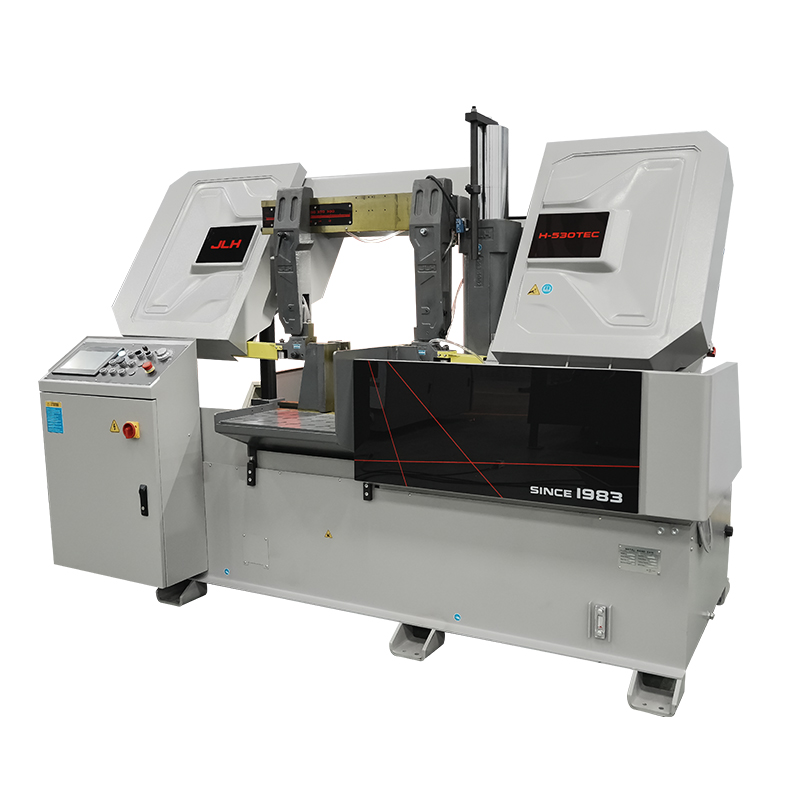

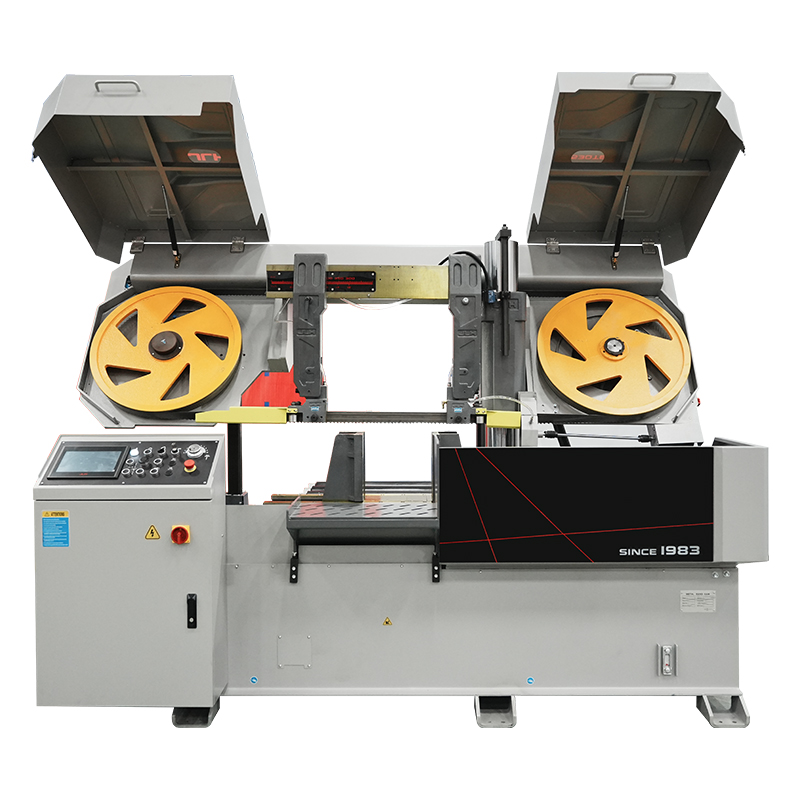

| H-530TEC | |||
Cutting range | Cutting range round | Ø530mm | Ø21in |
Cutting range square (W x H) | 530*530mm | 21*51in | |
Smallest size to be cut | 20*20mm | 0.8*0.8in | |
Clamping range | 0-530mm | 0-21in | |
| Dimensions and weight | Length | 1400mm | 55.1in |
| Width incl. chip conveyor | 3310mm | 130.3in | |
| Height | 2230mm | 87.8in | |
| Material support height | 860mm | 33.86in | |
Total weight | ≈2700kg | ≈5952lb | |
| Performance characteristics | Total connected load | 9.5kw | 12.67hp |
Power of saw motor | 7.5kw | 10hp | |
Hydraulic motor | 1.1kw | 2hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Dimensions of saw blade | 6300*54*1.6mm | 248 *2.1*0.06in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-530TEC |
| Saw Feed System | Saw Master | ● |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ○ | |

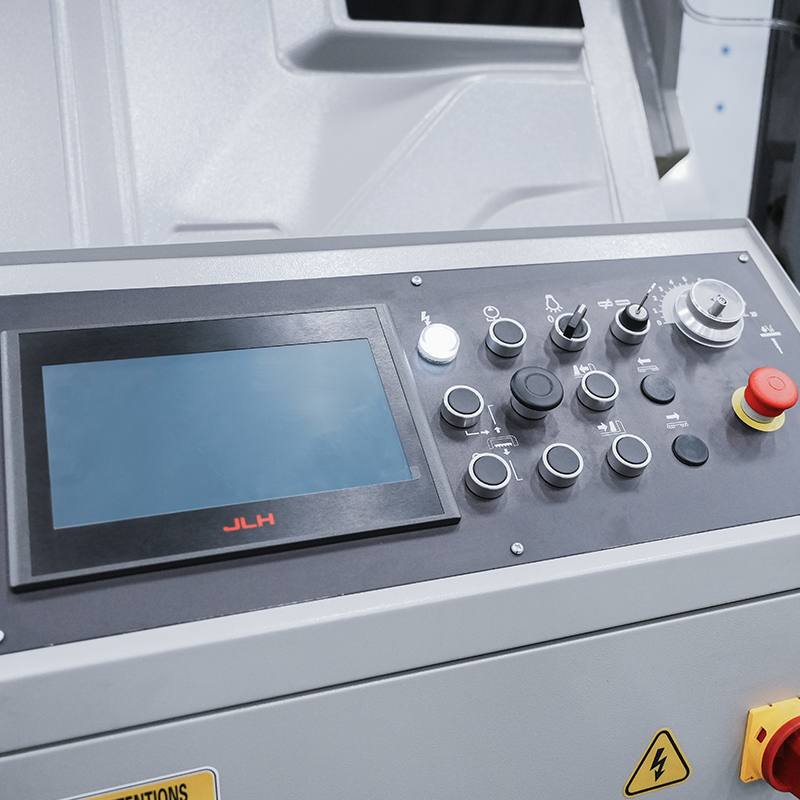

| HMI+Buttons | ● | |
| Inverter | ● | |
| Deviation detector | ○ | |
| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Hydraulic blade guide clamping | ○ | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Hydraulic cooling fan | ● | |
| Mechanical structure | Main drive precision gear reducer | ● |

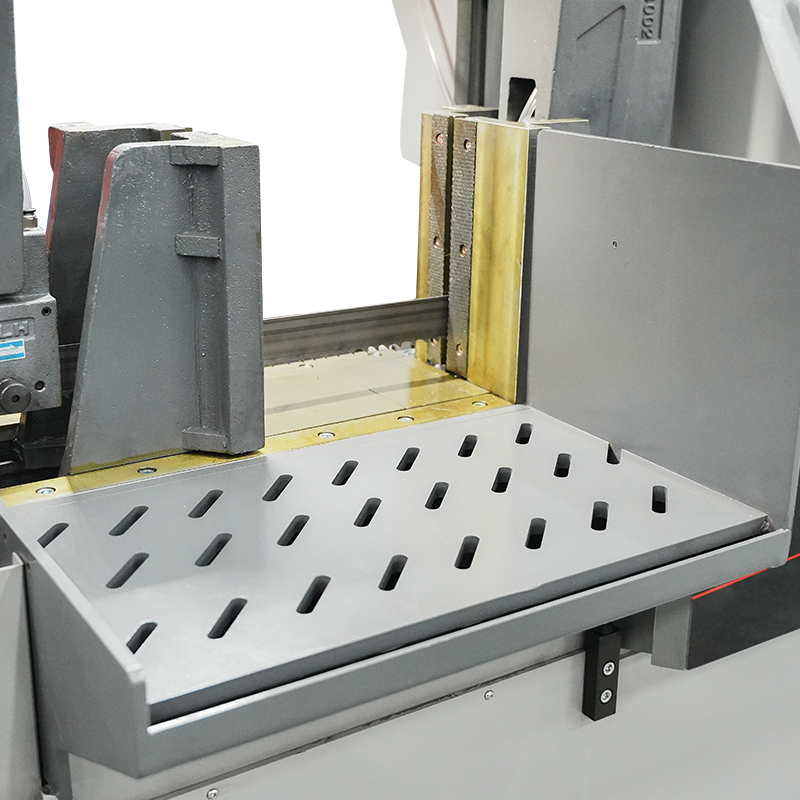

| Split Vise clamping | ● | |
| Chip collection box 40(L) | ● | |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
