Specifications

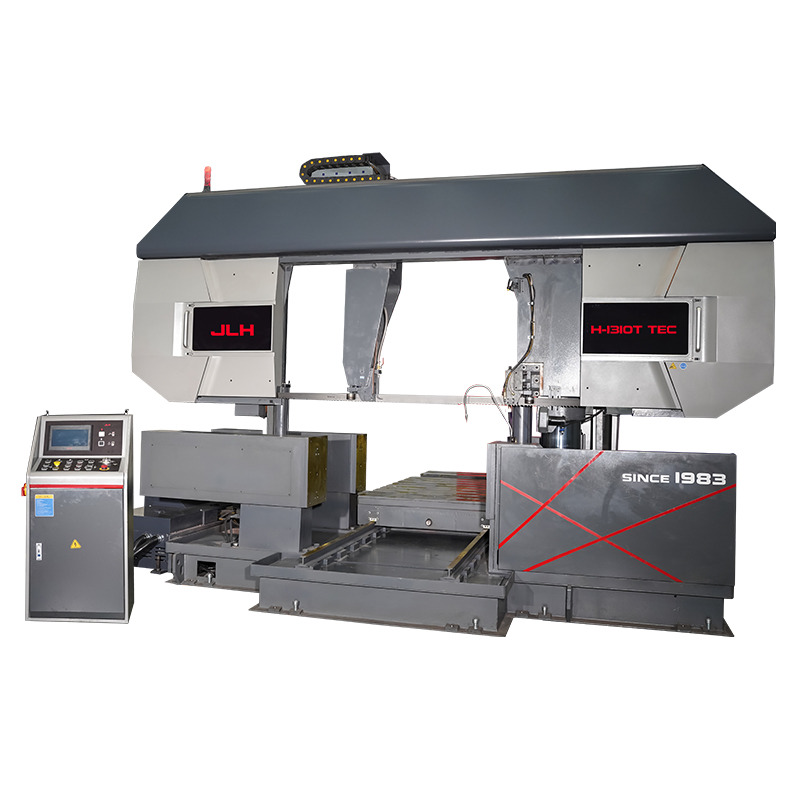

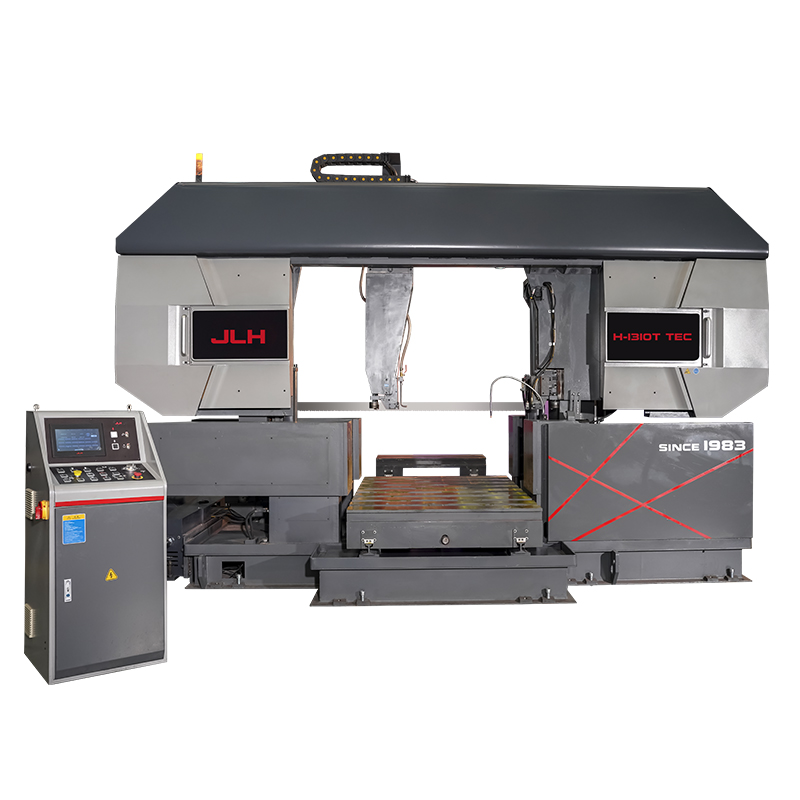

		H-1310T TEC
Cutting range	Cutting range round	Ø1000mm	Ø39.4in
	Cutting range square (W x H)	1300*1000mm	51.2*39.4in
	Smallest size to be cut	600*600mm	23.7*23.7in
	Clamping range	600-1300mm	23.7-51.2in
	Feeding platform length	2000mm	78.74in
	Feeding platform travel distance	2000mm	78.74in
Dimensions and weight	Length	5270mm	207.48in
	Width incl. chip conveyor	5650mm	222.44in
	Height	2810mm	110.63in
	Material support height	623mm	24.53in
	Total weight	≈14500kg	≈31972.5lb
Performance characteristics	Total connected load	33kw	44hp
	Power of saw motor	22kw	30hp
	Hydraulic motor	3.75kw	5hp
	Cutting speed infinitely variable with	20-80m/min	65.6-262.4ft/min
	Saw feed speed	1-300 mm/min	0.04-11.8in/min
	Dimensions of saw blade	10900671.6mm	429.132.640.06in

Configuration Table
Category of configuration	Functional description	H-1310T TEC
Saw Feed System	JLH-EHA	●
Saw Feed System	Saw Master	●
ELECTRICS	CE Electrical Safety	●
	UL Electrical Safety	○
	Permanent Magnetic synch. Motor	●
	Sawbow anti-collision detection	●
	LED working light	●
	Laser line projection	●
	Blade breakage detection	●
	Sawing Depth Control	●

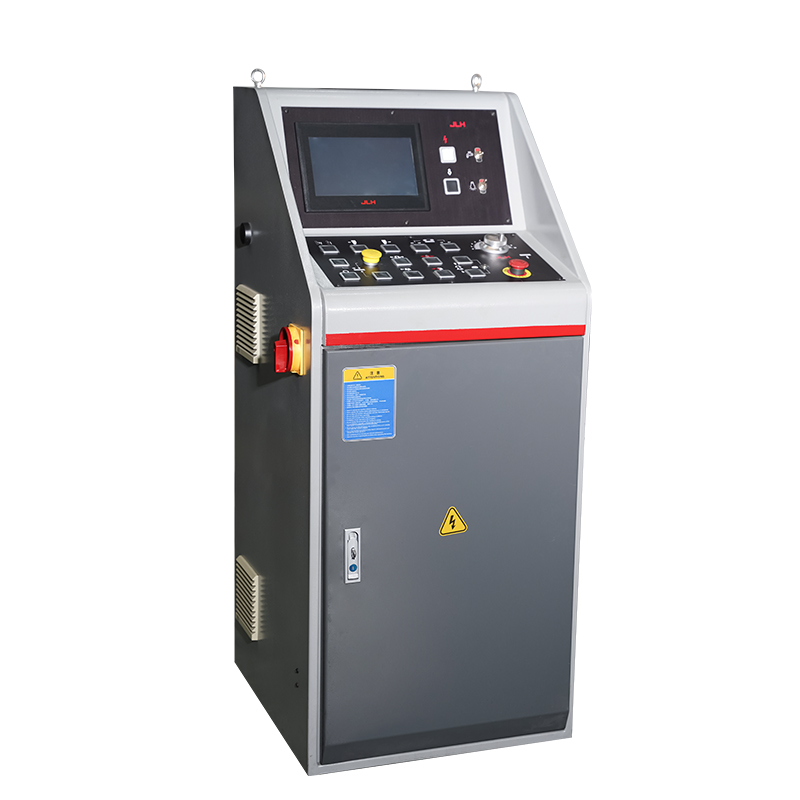

	HMI+Buttons	●
	Inverter	●
	Deviation detector	○
HYRAULICS	Hydraulic Blade tension	●
	Automatic chip conveyor (spiral)	●
	Hydraulic saw guide clamping	●

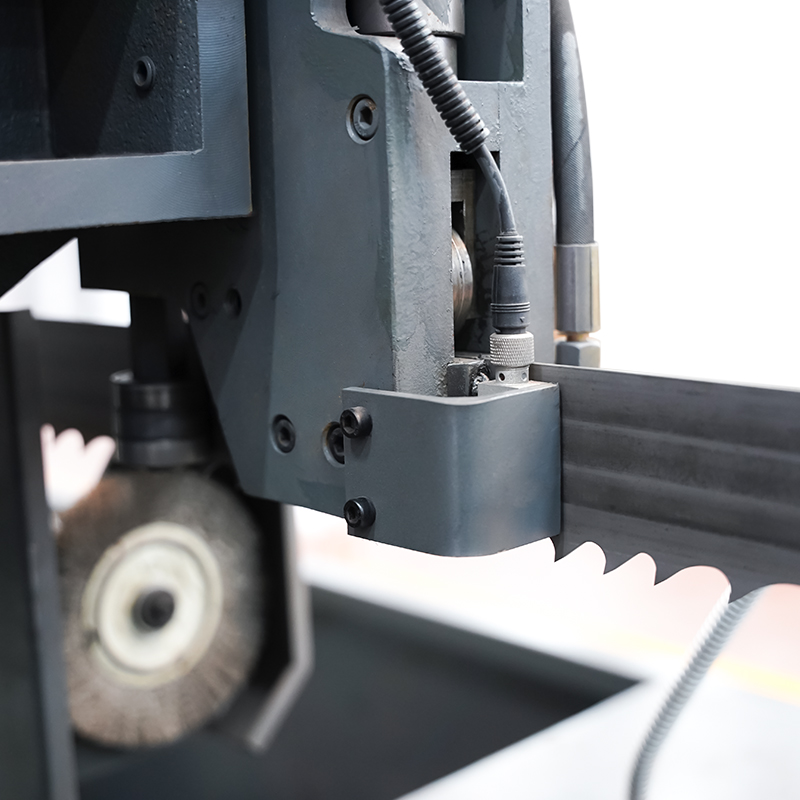

	Motorized chip brush	●
	Hydraulic cooling fan	●
	Auto Lubrication device	×

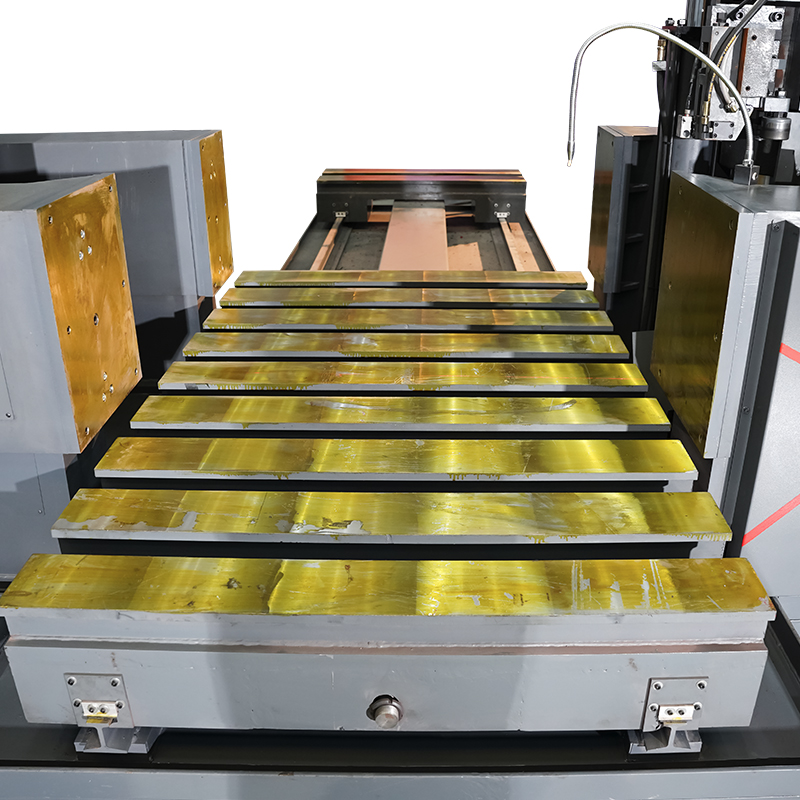

	Hydraulic Table movement	●

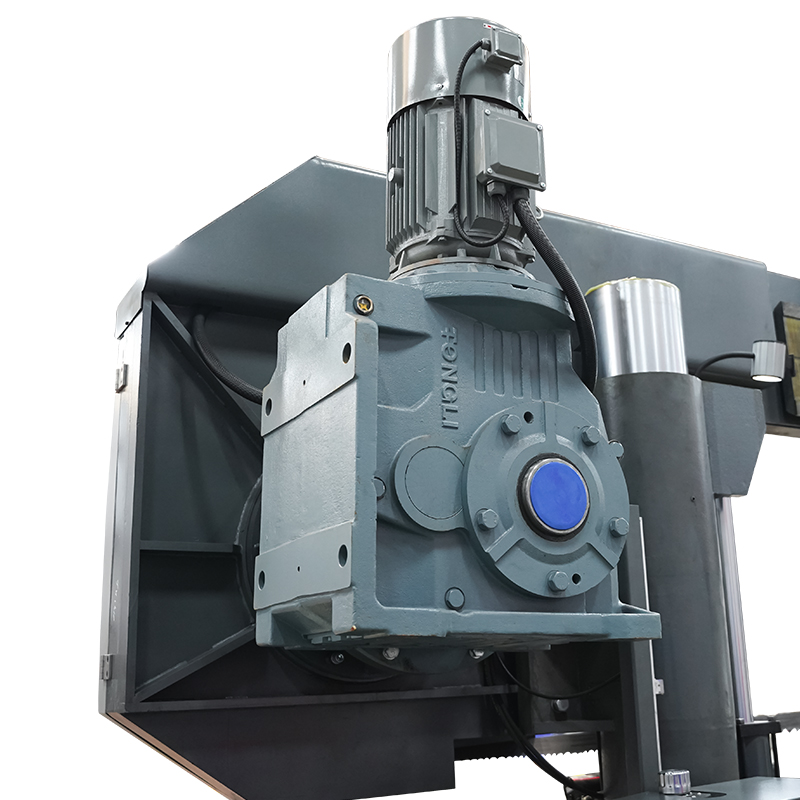

Mechanical structure	Main drive precision gear reducer	●
	Single Vise Clamping	●
	Split Vise clamping	×

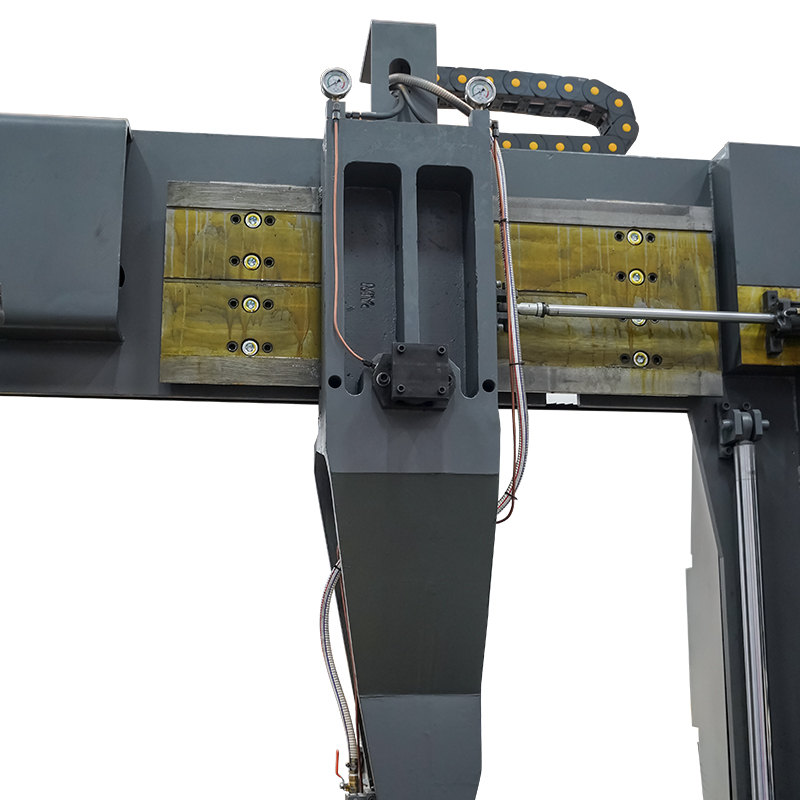

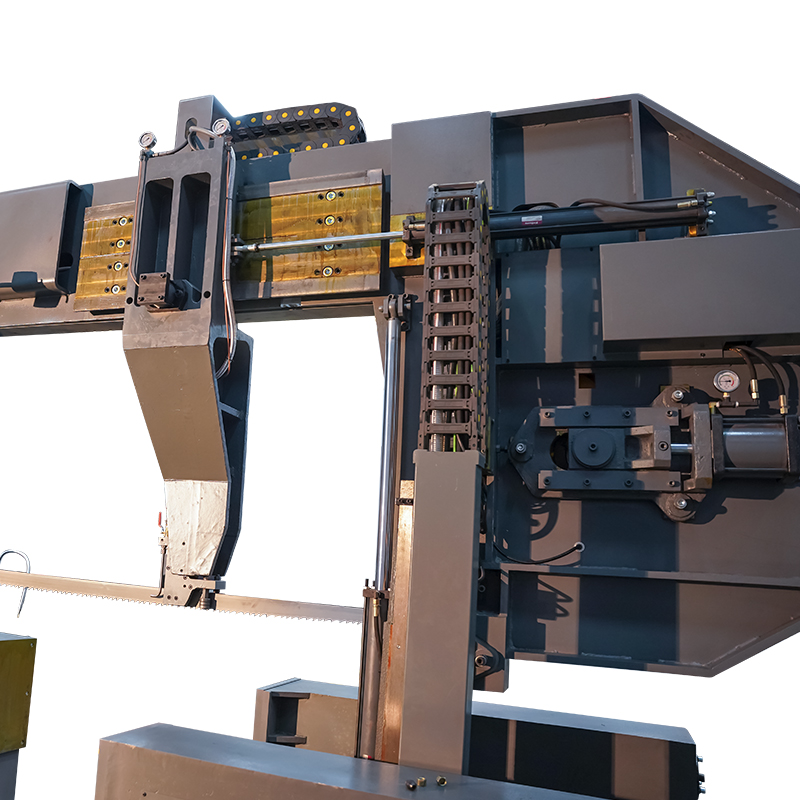

	Hydraulic movable Guide arm	●
	Manual movable Guide arm	×
Other	Chip collection box 40(L)	●
	Chip collection box (movable) 70 (L)	○
	Tool box (wire brush, levelling pads, spare paint)	●
	One piece Saw blade	●
	Transport underframe for containers	○
● : Standard ○ : Optional × : Non-optional
