Specifications

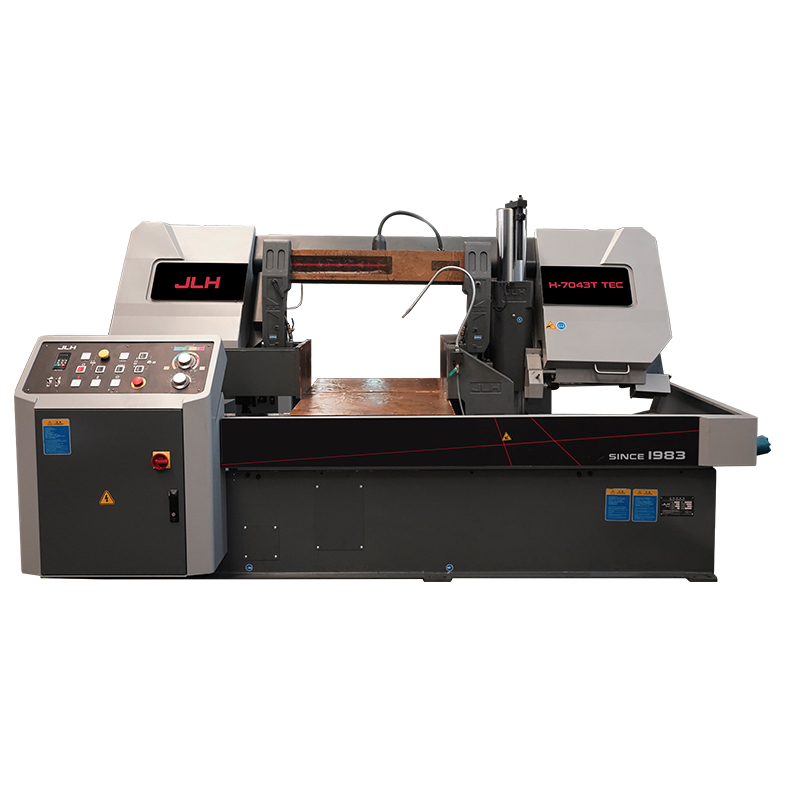

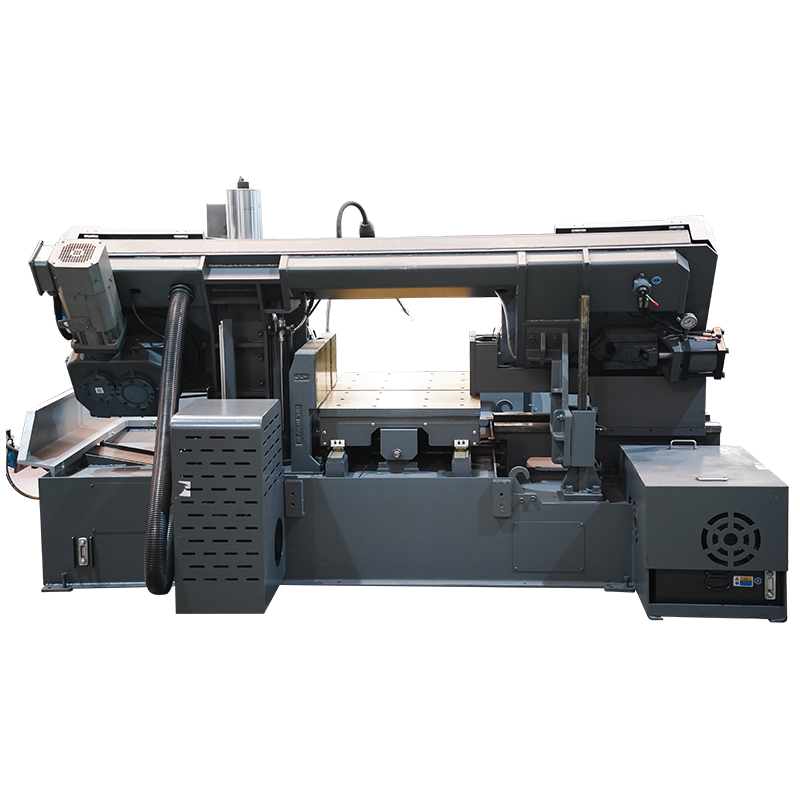

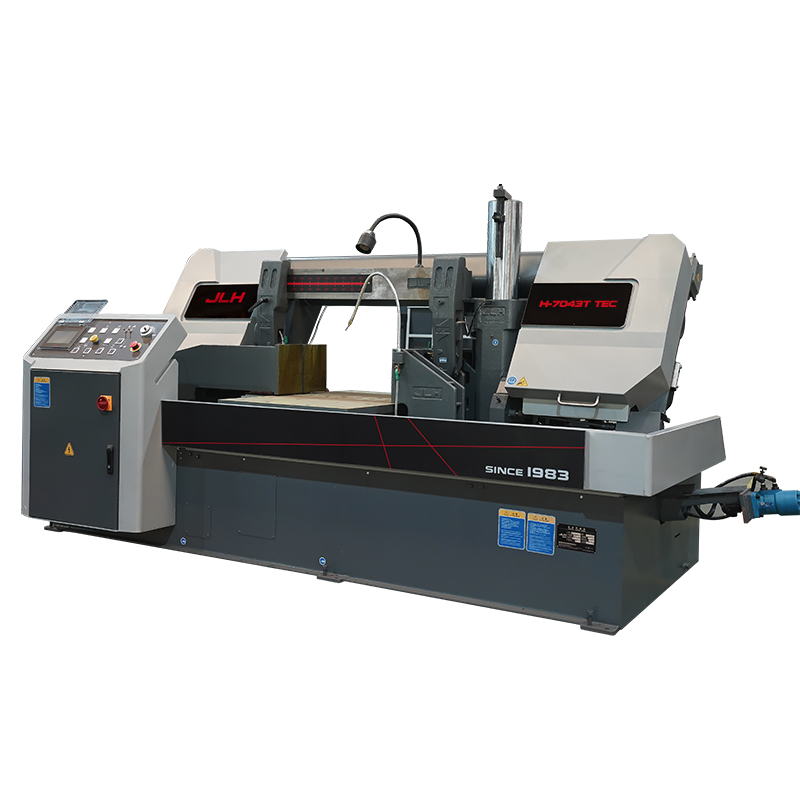

		H-7043T TEC
Cutting range	Cutting range round	Ø430mm	Ø17in
	Cutting range square (W x H)	700*430mm	27.5*17in
	Smallest size to be cut	200*200mm	8*8in
	Clamping range	200-700mm	8-27.5in
	Feeding platform length	1100mm	70.9in
	Feeding platform travel distance	900mm	43.3in
Dimensions and weight	Length	3030mm	119.3in
	Width incl. chip conveyor	3450mm	135.8in
	Height	2060mm	81.1in
	Material support height	820mm	32.28in
	Total weight	≈3700kg	≈8157lb
Performance characteristics	Total connected load	9.5kw	13.67hp
	Power of saw motor	7.5kw	10hp
	Hydraulic motor	1.5kw	2hp
	Cutting speed infinitely variable with	20-80m/min	65.6-262.4ft/min
	Saw feed speed	1-300 mm/min	0.04-11.8in/min
	Dimensions of saw blade	6000411.3mm	236.21.60.05in

Configuration Table
Category of configuration	Functional description	H-7043T TEC
Saw Feed System	JLH-EHA	○
Saw Feed System	Saw Master	●

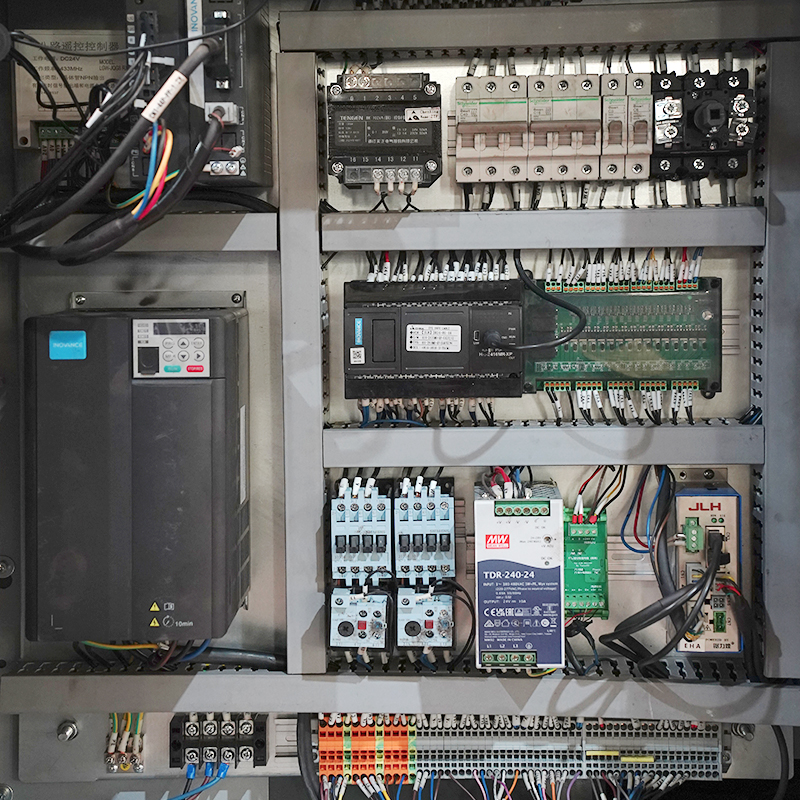

ELECTRICS	CE Electrical Safety	●
	UL Electrical Safety	○
	Permanent Magnetic synch. Motor	●
	Sawbow anti-collision detection	●
	LED working light	●
	Laser line projection	○
	Blade breakage detection	●
	Sawing Depth Control	○

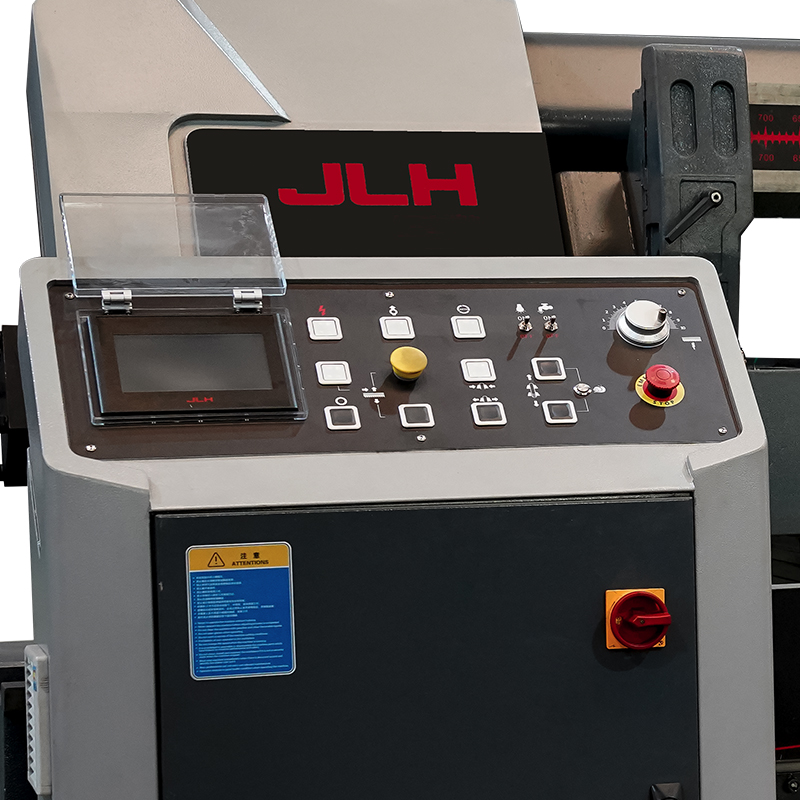

	HMI+Buttons	●
	Inverter	●
	Deviation detector	○

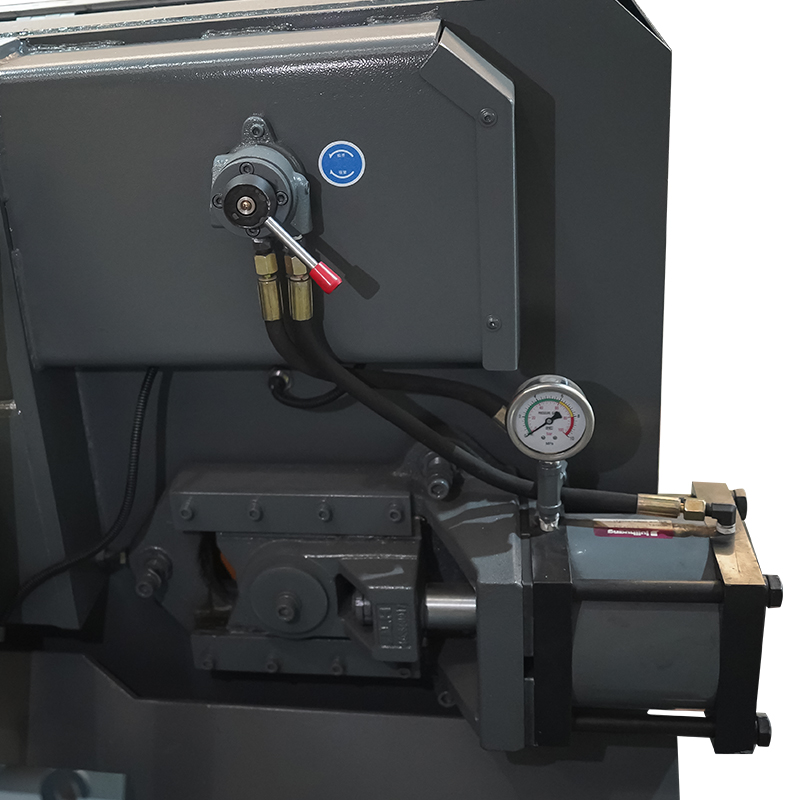

HYRAULICS	Hydraulic Blade tension	●

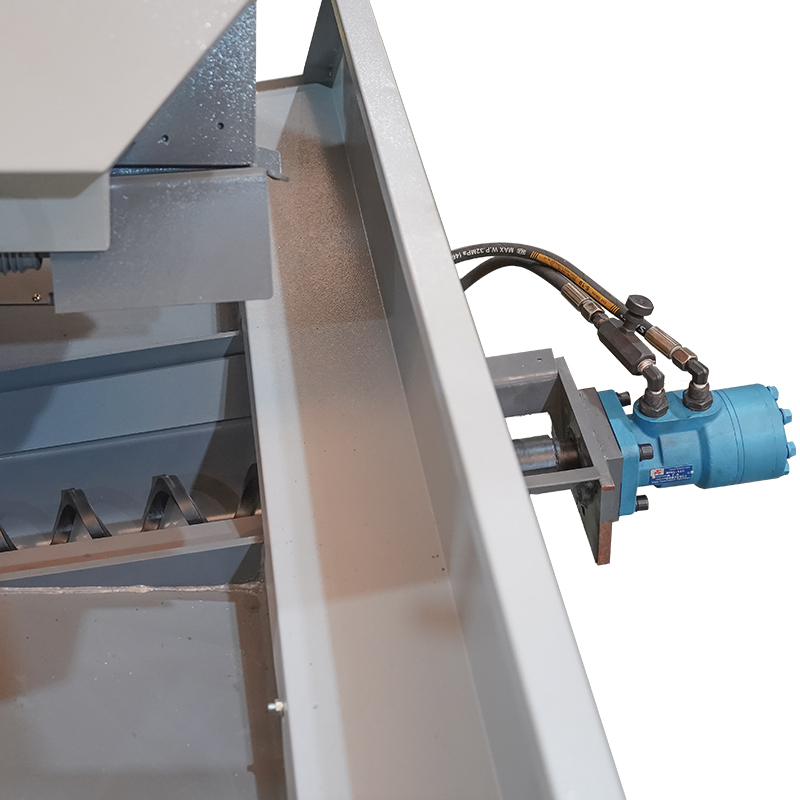

	Automatic chip conveyor (spiral)	●
	Hydraulic saw guide clamping	○
	Motorized chip brush	●
	Hydraulic cooling fan	●
	Auto Lubrication device	×

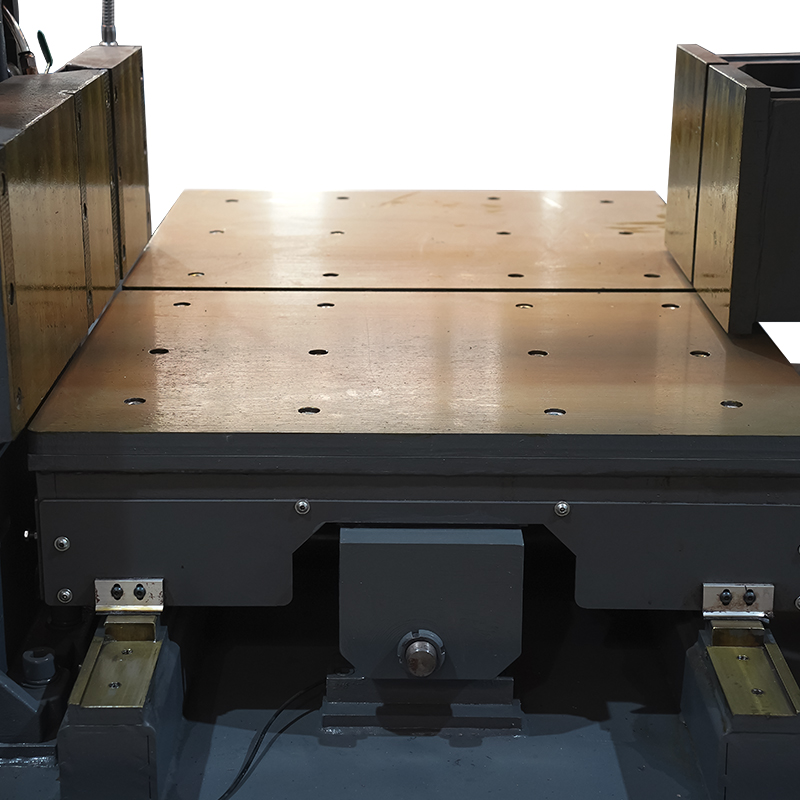

	Hydraulic Table movement	●

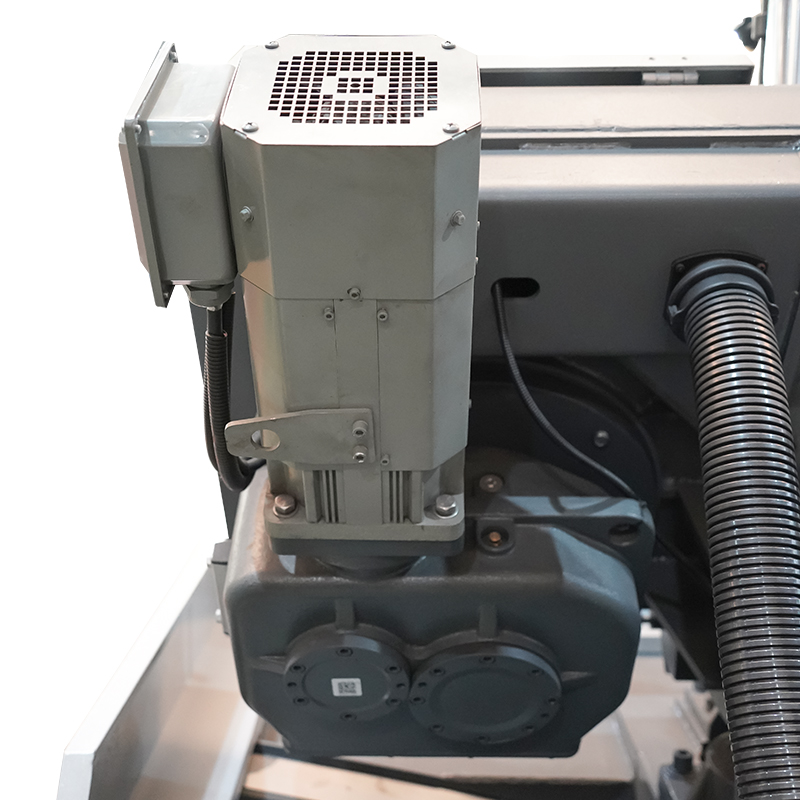

Mechanical structure	Main drive precision gear reducer	●
	Single Vise Clamping	×
	Split Vise clamping	●
	Hydraulic movable Guide arm	×
	Manual movable Guide arm	●
Other	Chip collection box 40(L)	●
	Chip collection box (movable) 70 (L)	○
	Tool box (wire brush, levelling pads, spare paint)	●
	One piece Saw blade	●
	Transport underframe for containers	○
● : Standard ○ : Optional × : Non-optional
