Specifications

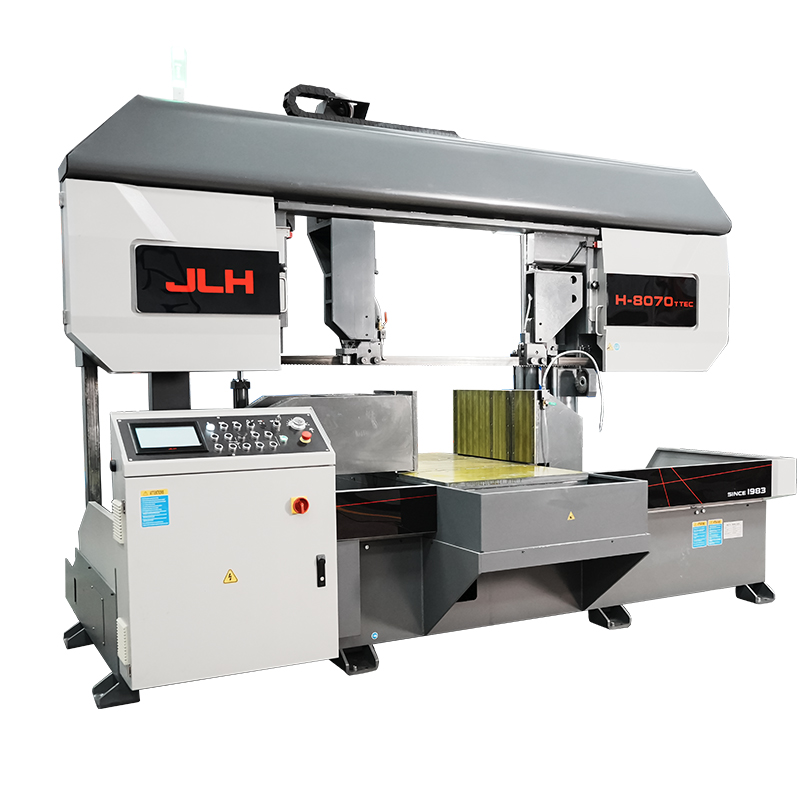

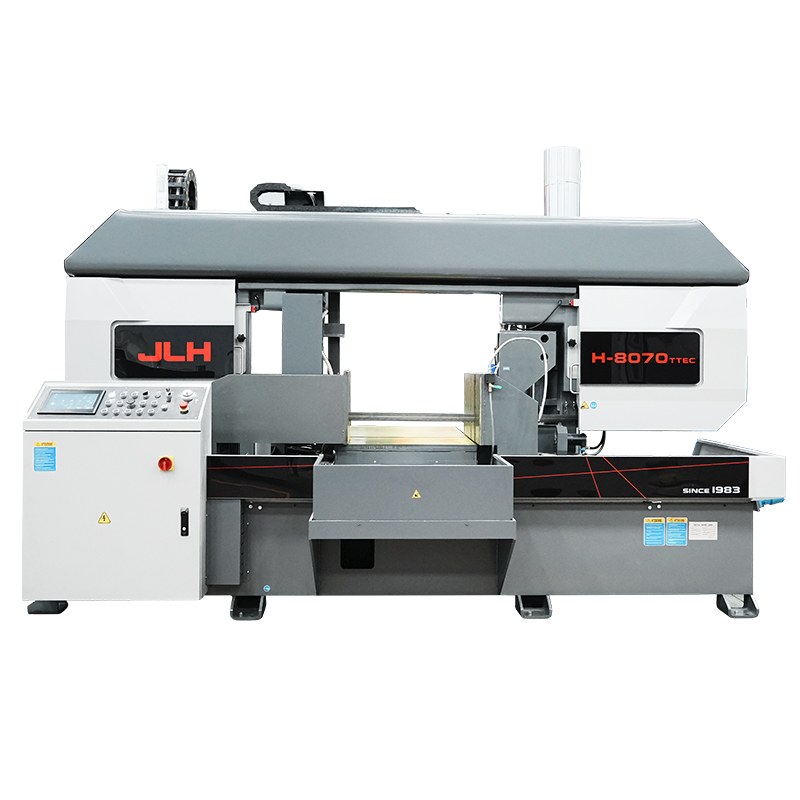

		H-8070T TEC
Cutting range	Cutting range round	Ø700mm	Ø27.6in
	Cutting range square (W x H)	800*700mm	31.5*27.6in
	Smallest size to be cut	300*300mm	11.8*11.8in
	Clamping range	300-800mm	11.8-39.37in
	Feeding platform length	1500mm	59.05in
	Feeding platform travel distance	1450mm	57.09in
Dimensions and weight	Length	3450mm	135.8in
	Width incl. chip conveyor	4130mm	162.6in
	Height	2970mm	116.9in
	Material support height	820mm	81.1in
	Total weight	≈6300kg	≈13889lb
Performance characteristics	Total connected load	16kw	21.3hp
	Power of saw motor	11kw	14.66hp
	Hydraulic motor	2.2kw	2.93hp
	Cutting speed infinitely variable with	20-80m/min	65.6-262.4ft/min
	Saw feed speed	1-300 mm/min	0.04-11.8in/min
	Dimensions of saw blade	8100541.6mm	318.92.10.06in

Configuration Table
Category of configuration	Functional description	H-8070T TEC
Saw Feed System	JLH-EHA	●
Saw Feed System	Saw Master	●
ELECTRICS	CE Electrical Safety	●
	UL Electrical Safety	○
	Permanent Magnetic synch. Motor	●
	Sawbow anti-collision detection	●
	LED working light	●
	Laser line projection	○
	Blade breakage detection	●
	Sawing Depth Control	●
	HMI+Buttons	●
	Inverter	●
	Deviation detector	○
HYRAULICS	Hydraulic Blade tension	●
	Automatic chip conveyor (spiral)	●
	Hydraulic saw guide clamping	●

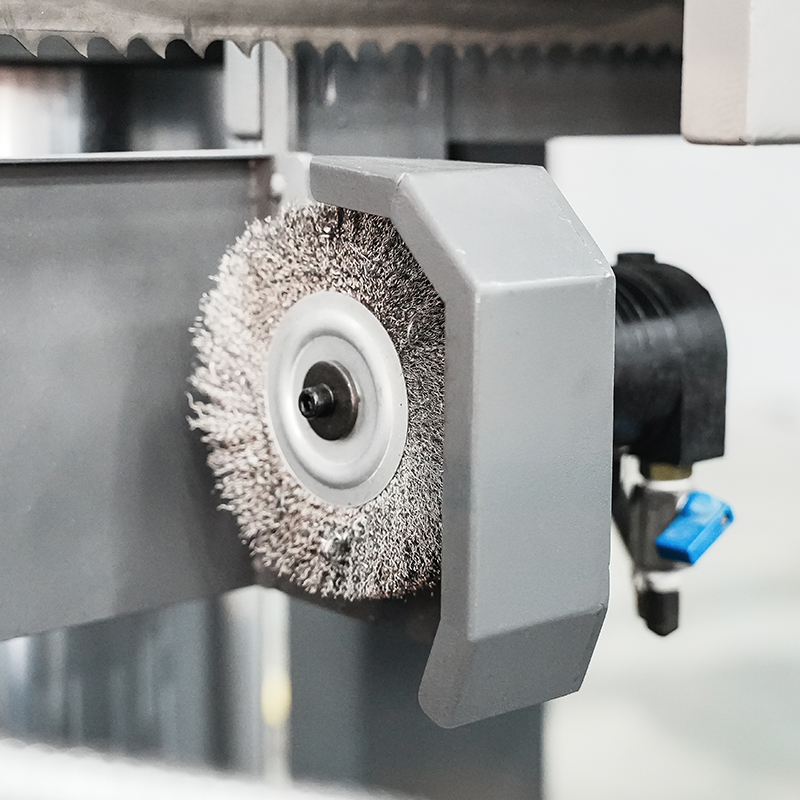

	Motorized chip brush	●
	Hydraulic cooling fan	●
	Auto Lubrication device	●
	Hydraulic Table movement	●

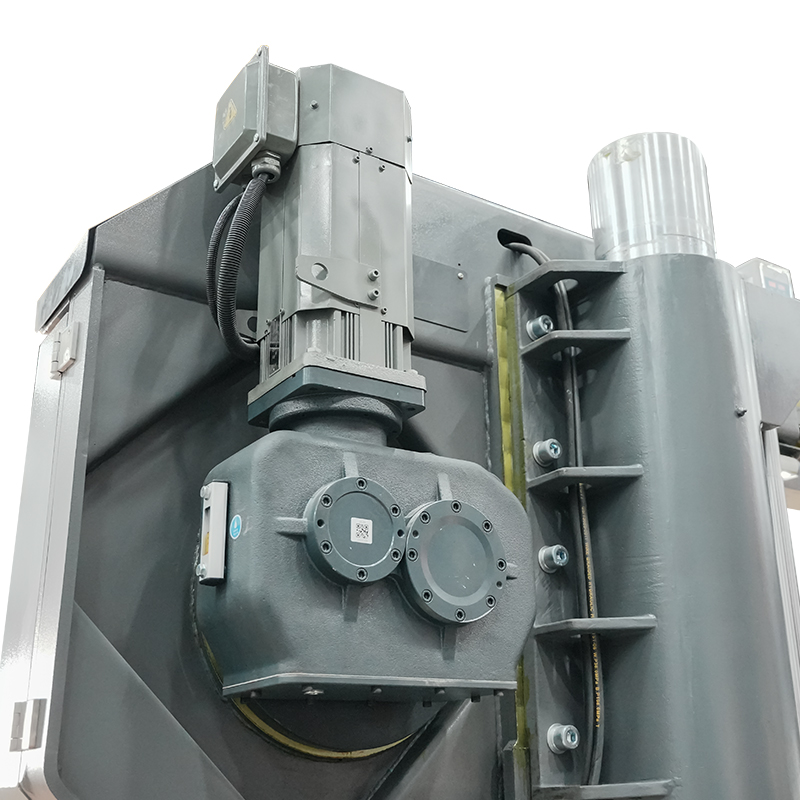

Mechanical structure	Main drive precision gear reducer	●
	Single Vise Clamping	×
	Split Vise clamping	●
	Hydraulic movable Guide arm	●
	Manual movable Guide arm	×
Other	Chip collection box 40(L)	●
	Chip collection box (movable) 70 (L)	○
	Tool box (wire brush, levelling pads, spare paint)	●
	One piece Saw blade	●
	Transport underframe for containers	○
● : Standard ○ : Optional × : Non-optional
