| Specifications | |||

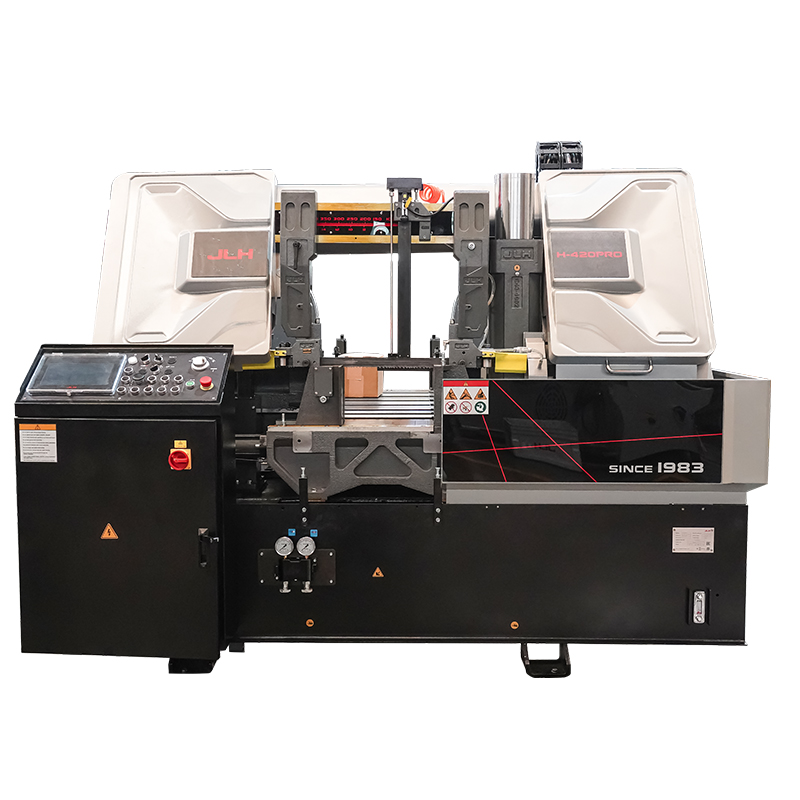

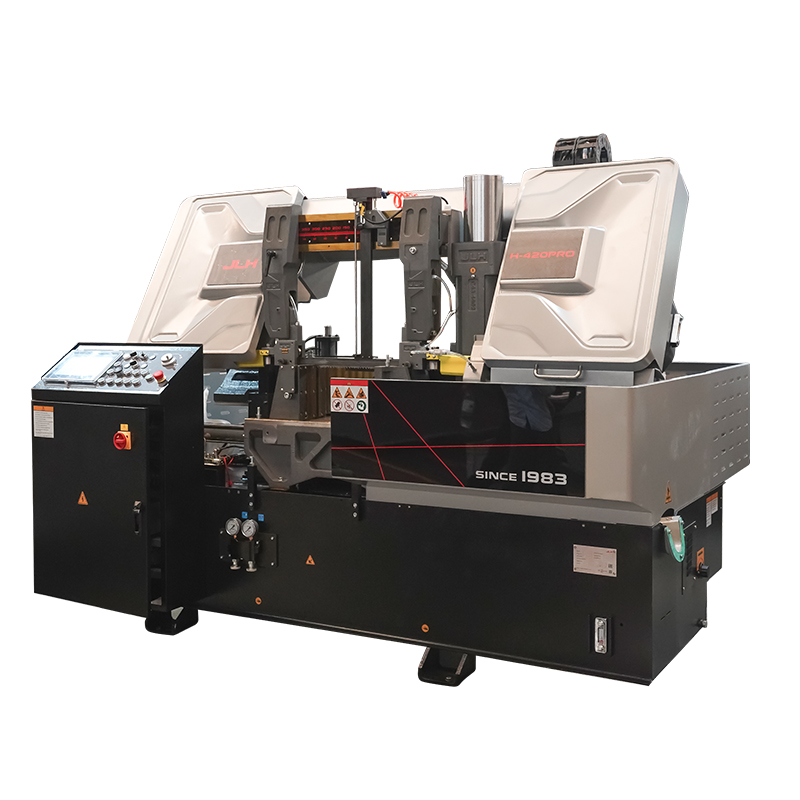

| H-420PRO | |||
Cutting range | Cutting range round | Ø420mm | Ø16.5in |
Cutting range square (W x H) | 420*420mm | 16.5*16.5in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-420mm | 0-16.5in | |
Bundle cutting range (Min.W x H - Max. W x H ) | 160*130-260*160mm | 6.3*5.1-10.2*6.3in | |
Shortest length of cut-off piece | 5mm | 0.2in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 190mm | 7.48in | |
Shortest remnant length individual cut | 20mm | 0.8in | |
| Dimensions and weight | Length | 2220mm | 87.4in |
| Width incl. chip conveyor | 3050mm | 120.1in | |
| Height | 2100mm | 82.7in | |
| Material support height | 860mm | 33.85in | |
Total weight | ≈2850kg | ≈6283lb | |
| Performance characteristics | Total connected load | 9.5kw | 12.67hp |
Power of saw motor | 7.5kw | 10hp | |
Hydraulic motor | 1.5kw | 2hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Automatic material feed length, single stroke | 500mm | 19.69in | |
Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
Dimensions of saw blade | 5150*41*1.3mm | 202.76*1.6*0.05in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-420PRO |
| Exterior Protection | CE safety protection | ● |
| Saw Feed System | JLH-EHA | × |
| Saw Master | ● | |

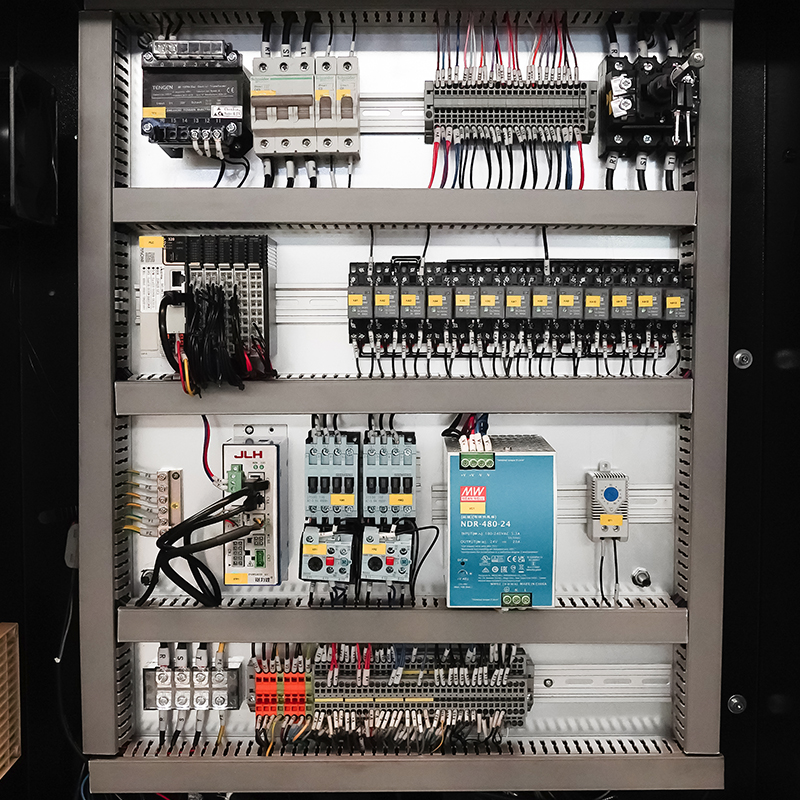

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |

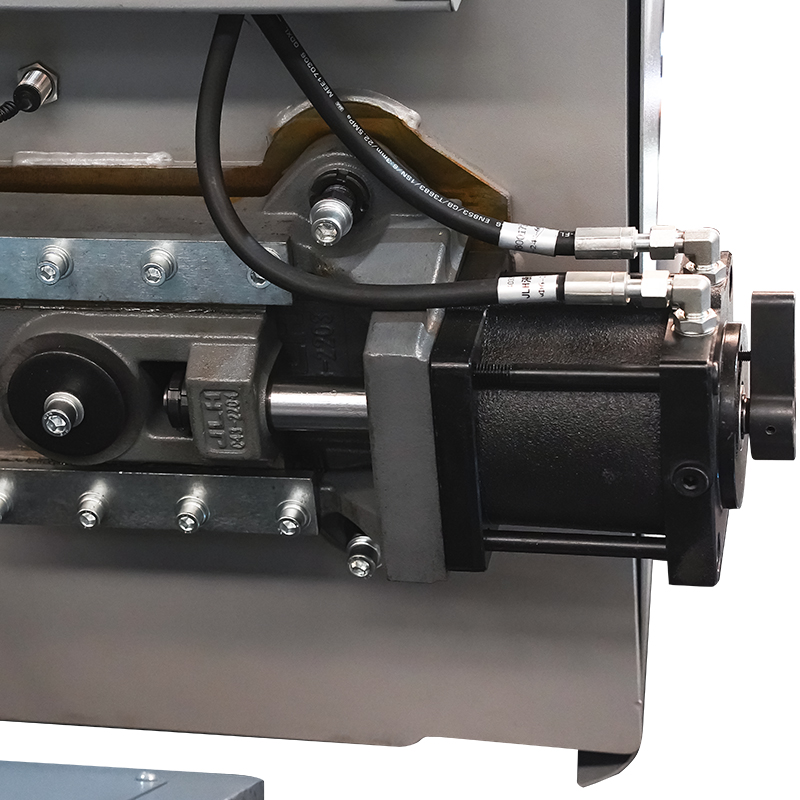

Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ○ | |

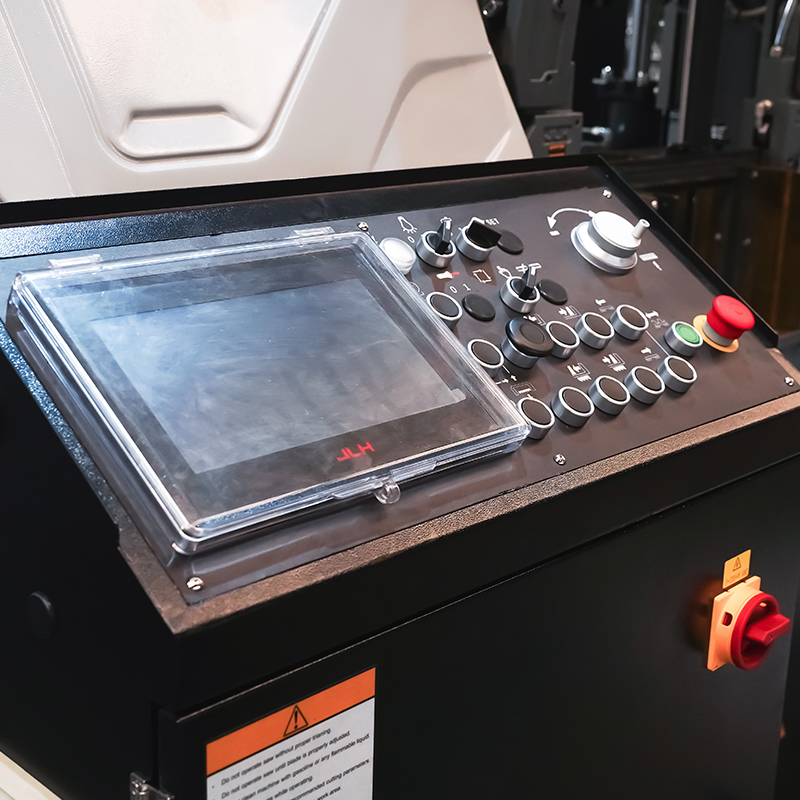

| HMI+Buttons | ● | |
| Inverter | ● | |
| Deviation detector | ○ | |
| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Hydraulic saw guide clamping | ○ | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ○ | |
| Roller type work table | ● | |
| Simple Roller table | × | |
| MATERIAL FEEDING | Hydraulic driven | ● |
| Servo driven | ○ | |
| Mechanical structure | Main drive precision gear reducer | ● |
| Single Vise Clamping | × | |
| Split Vise clamping | ● | |
| Hydraulic movable Guide arm | ○ | |
| Manual movable Guide arm | ● | |
| Other | Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
