- Specifications
- Configuration Table
| Specifications | |||

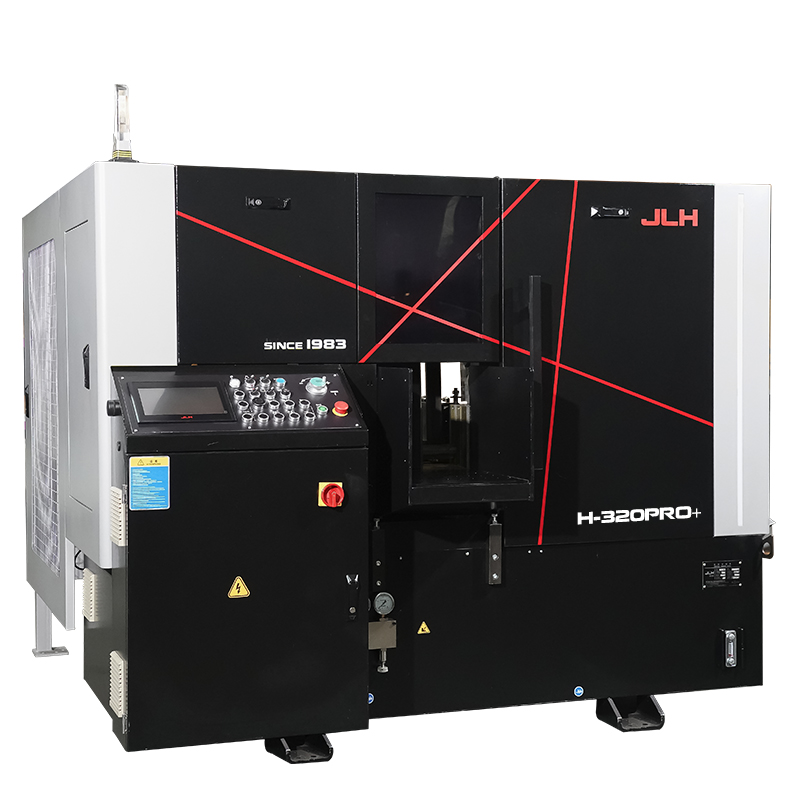

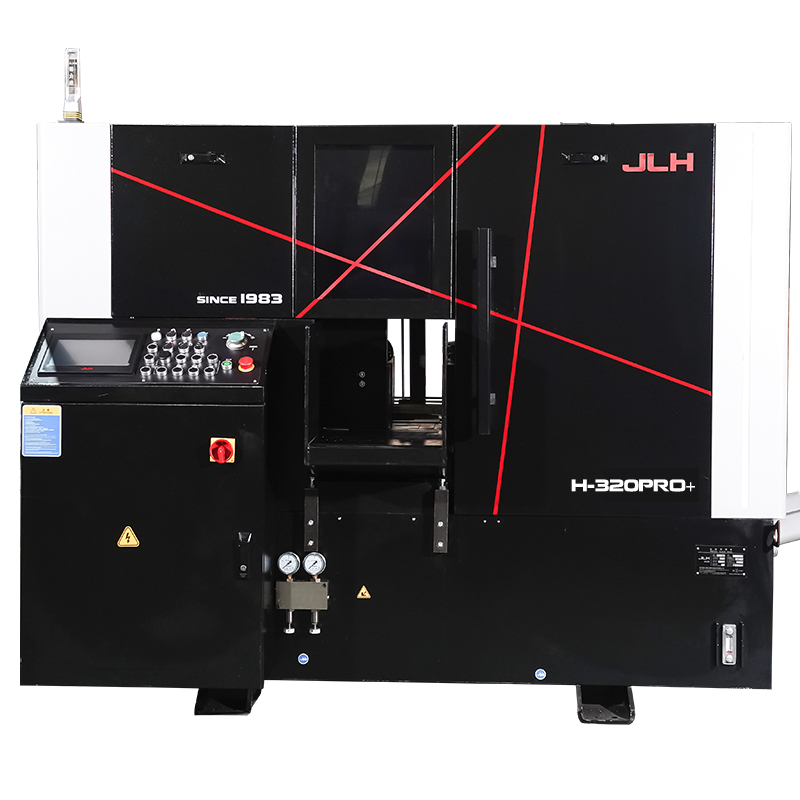

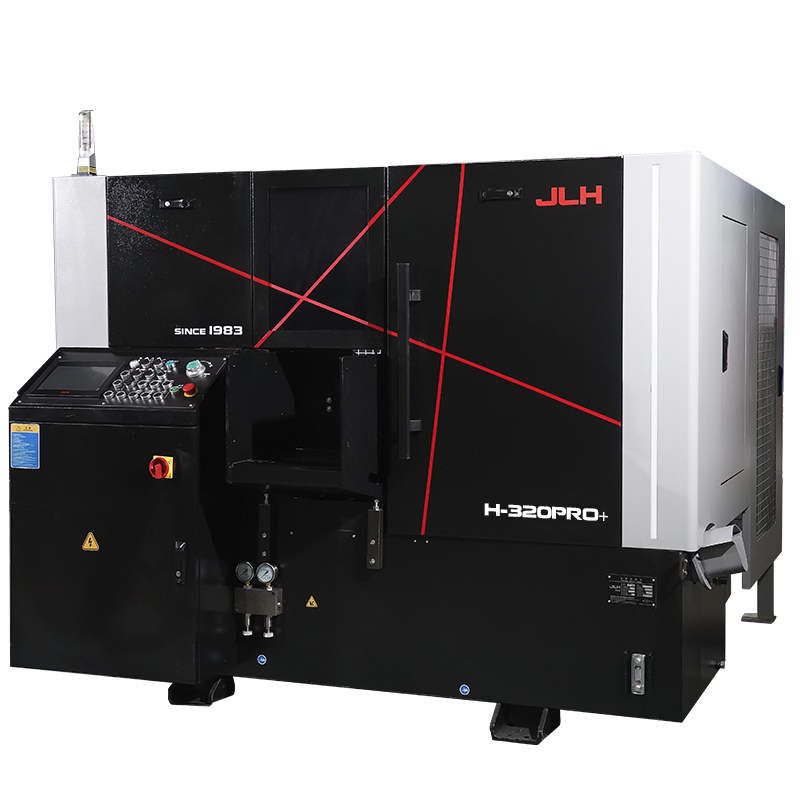

| H-320PRO+ | |||
Cutting range | Cutting range round | Ø320mm | Ø12.6in |
Cutting range square (W x H) | 320*320mm | 12.6*12.6in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-320mm | 0-12.6in | |
Bundle cutting range (Min.W x H - Max. W x H ) | 160*100-260*130mm | 6.3*3.9-10.2*5.1in | |
Shortest length of cut-off piece | 5mm | 0.2in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 130mm | 5.12in | |
Shortest remnant length individual cut | 20mm | 0.8in | |
| Dimensions and weight | Length | 2250mm | 88.6in |
| Width incl. chip conveyor | 2630mm | 103.5in | |
| Height | 1980mm | 78in | |
| Material support height | 830mm | 32.7in | |
Total weight | ≈1900kg | ≈4188lb | |
| Performance characteristics | Total connected load | 8.2kw | 10.9hp |
Power of saw motor | 5kw | 6.66hp | |
Hydraulic motor | 0.75kw | 1hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Automatic material feed length, single stroke | 500mm | 19.69in | |
Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
Dimensions of saw blade | 4115*34*1.1mm | 162*1.3*0.04in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-320PRO+ |

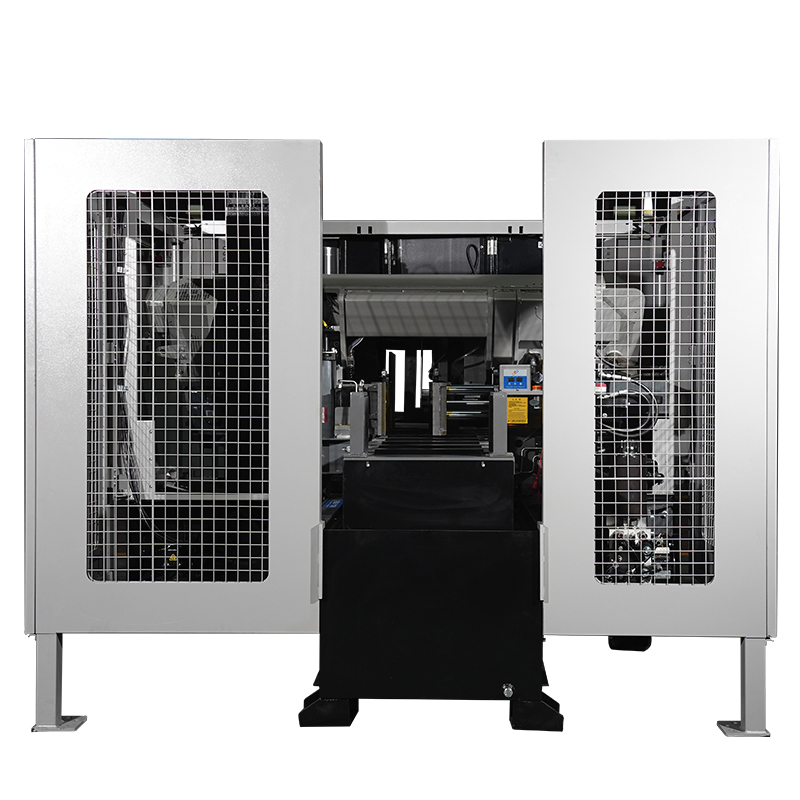

| Exterior Protection | CE safety protection | ● |
| Saw Feed System | JLH-EHA | ● |
| Saw Master | ● | |

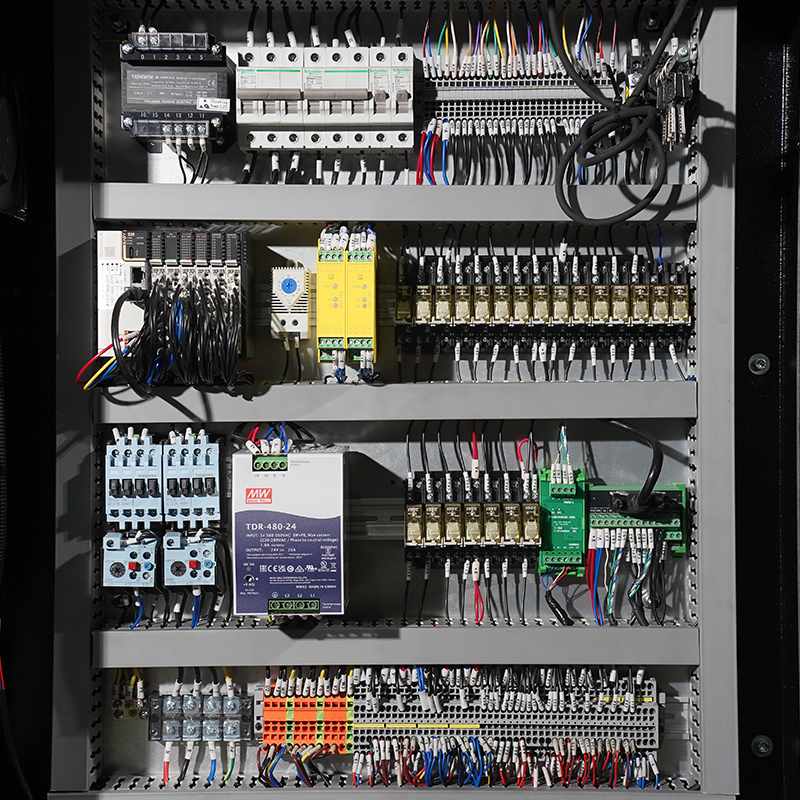

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ● | |

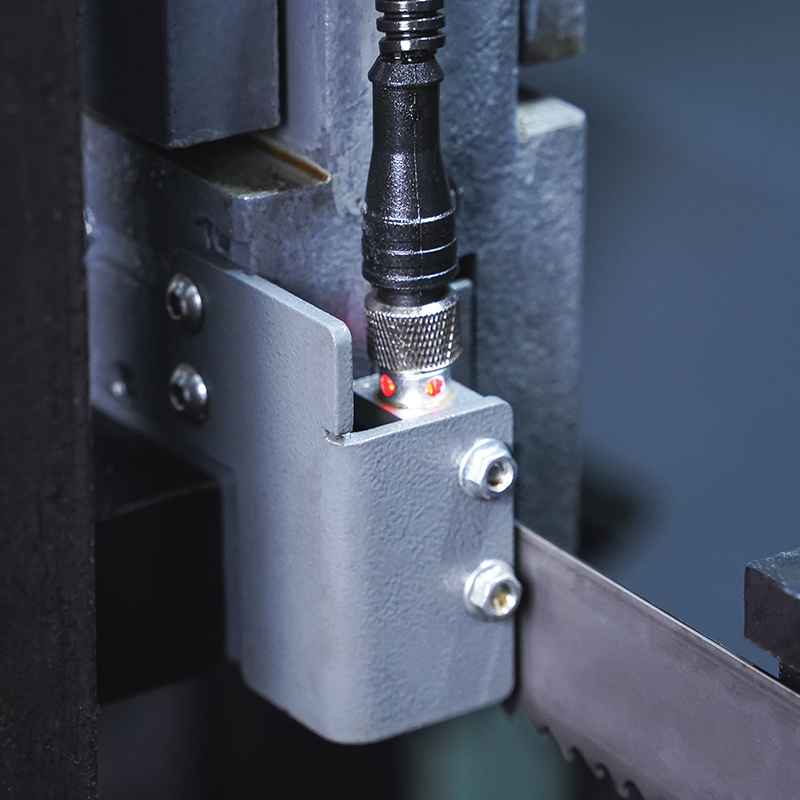

Blade breakage detection | ● | |

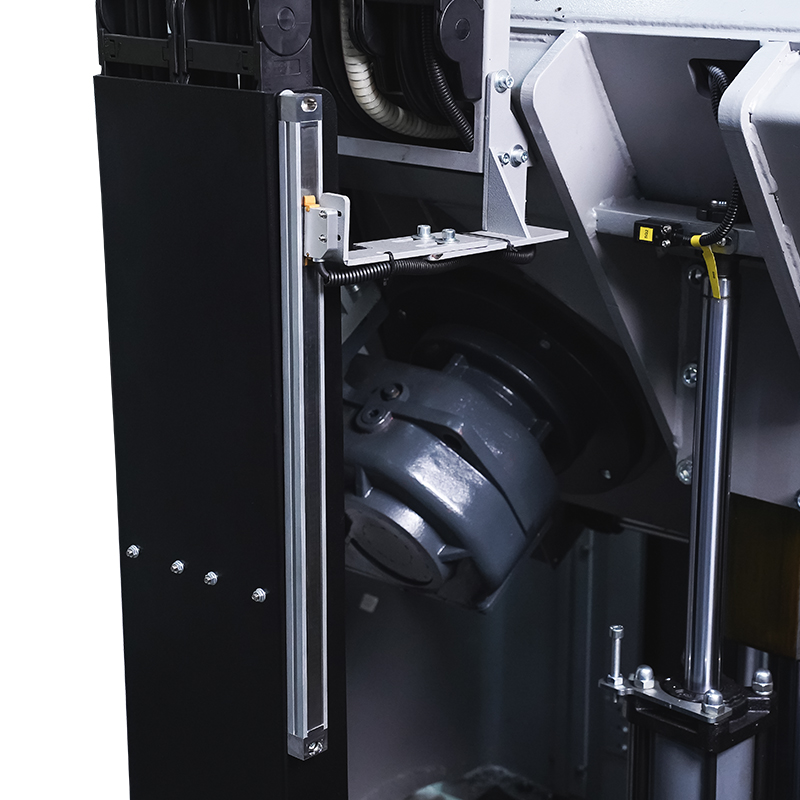

Sawing Depth Control | ● | |
| HMI+Buttons | ● | |
| Inverter | ● | |
| 0-start (first cut option) | ○ | |
| Deviation detector | ● | |
| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Automatic chip conveyor (belt) | × | |

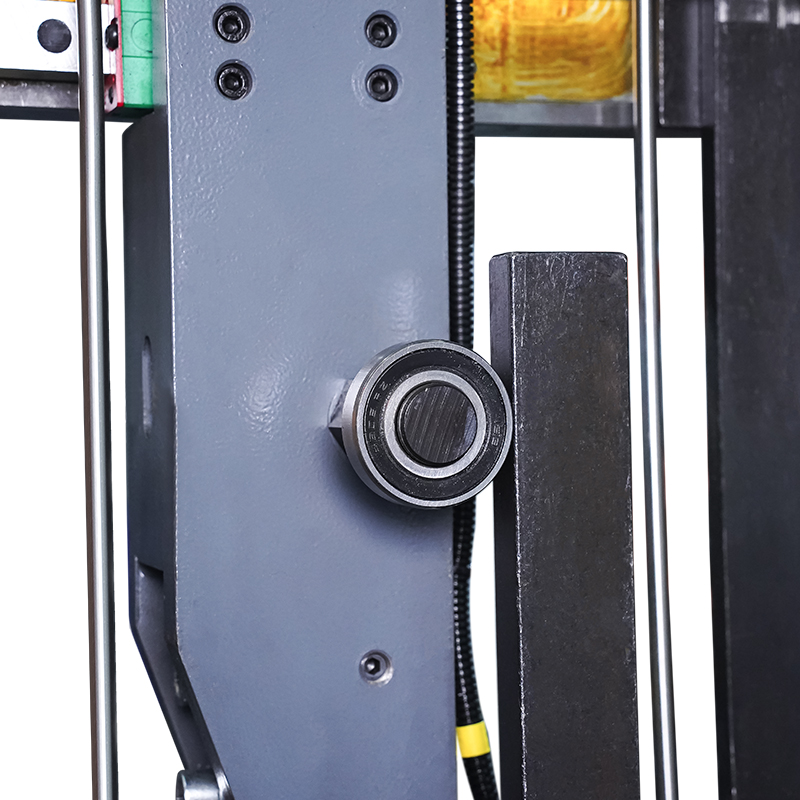

| Hydraulic saw guide clamping | ● | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |

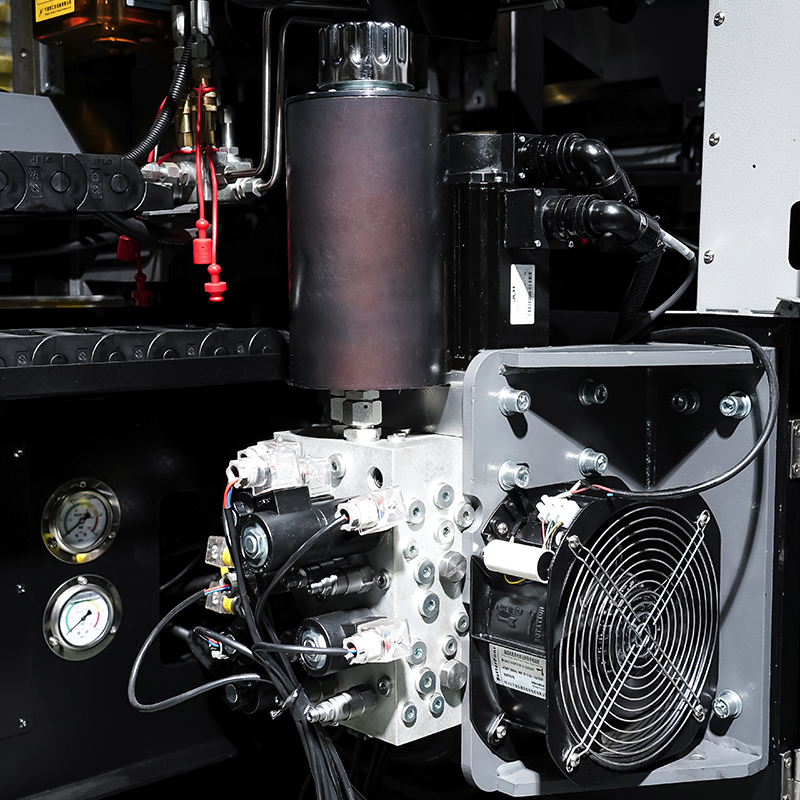

| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ● | |
| Roller type work table | ● | |
| MATERIAL FEEDING | Hydraulic driven | ● |
| Servo driven | ○ | |
| Mechanical structure | Main drive precision gear reducer | ● |
| Single Vise Clamping | × | |
| Split Vise clamping | ● | |
| Hydraulic movable Guide arm | ● | |
| Other | Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
