- Specifications
- Configuration Table
| Specifications | |||

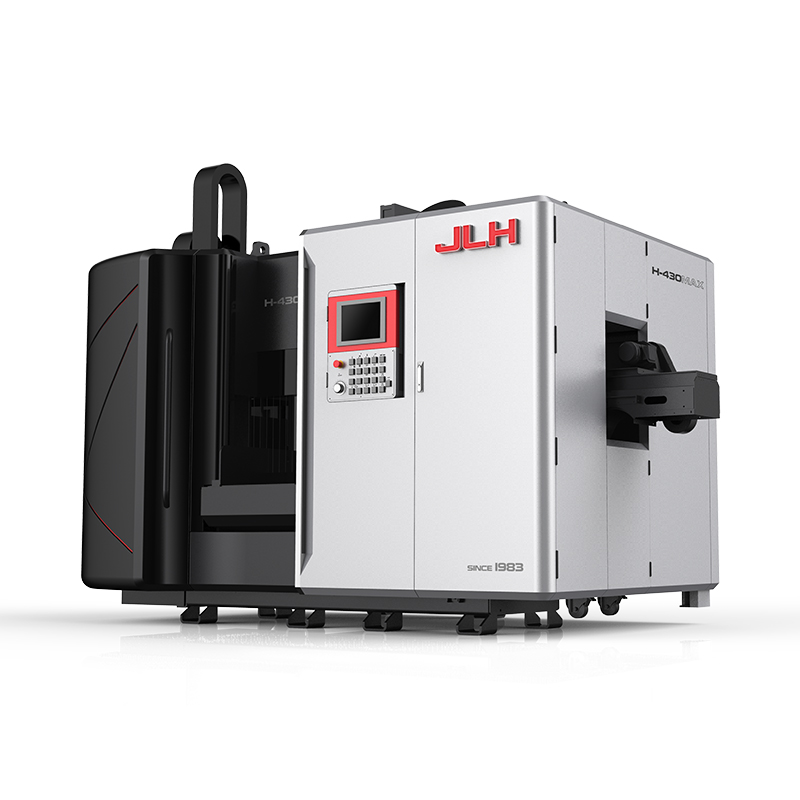

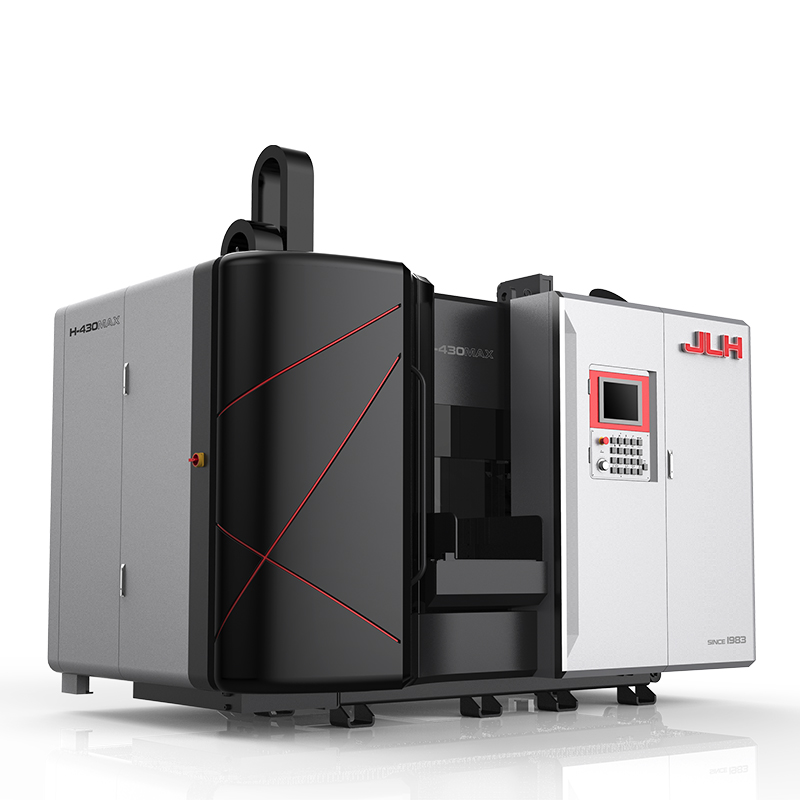

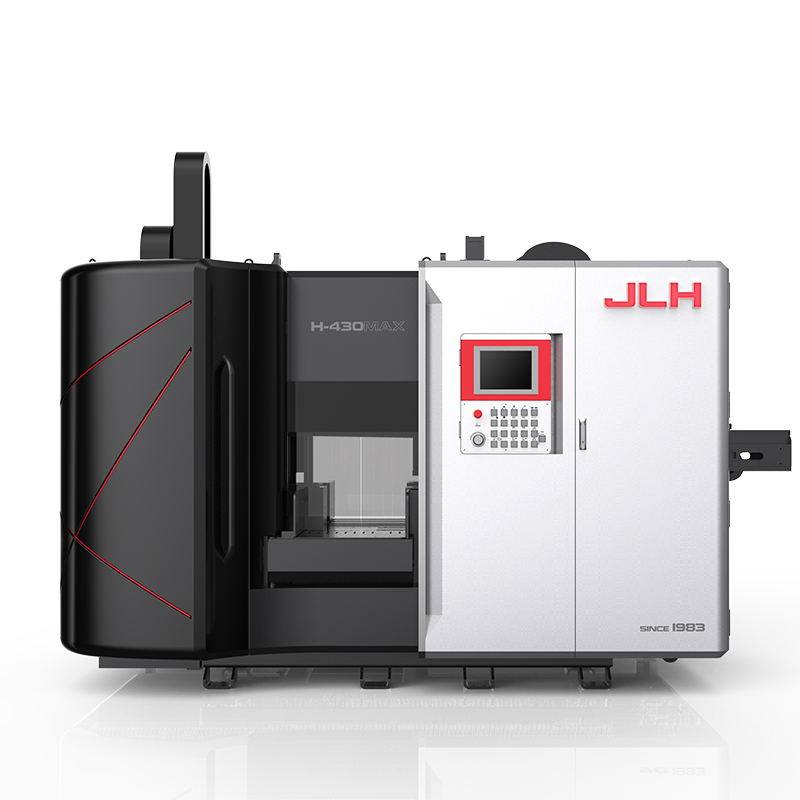

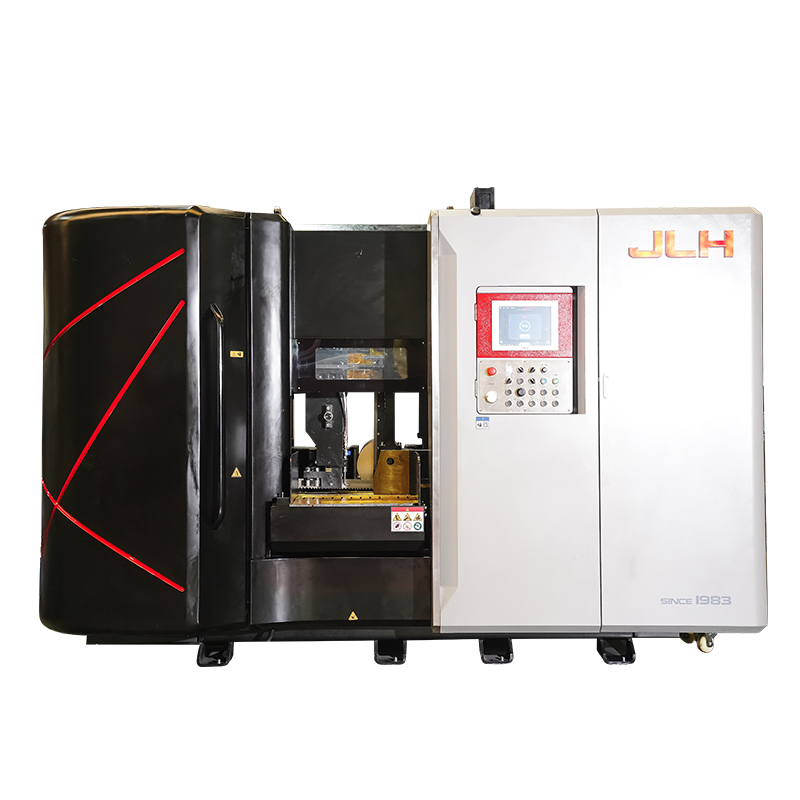

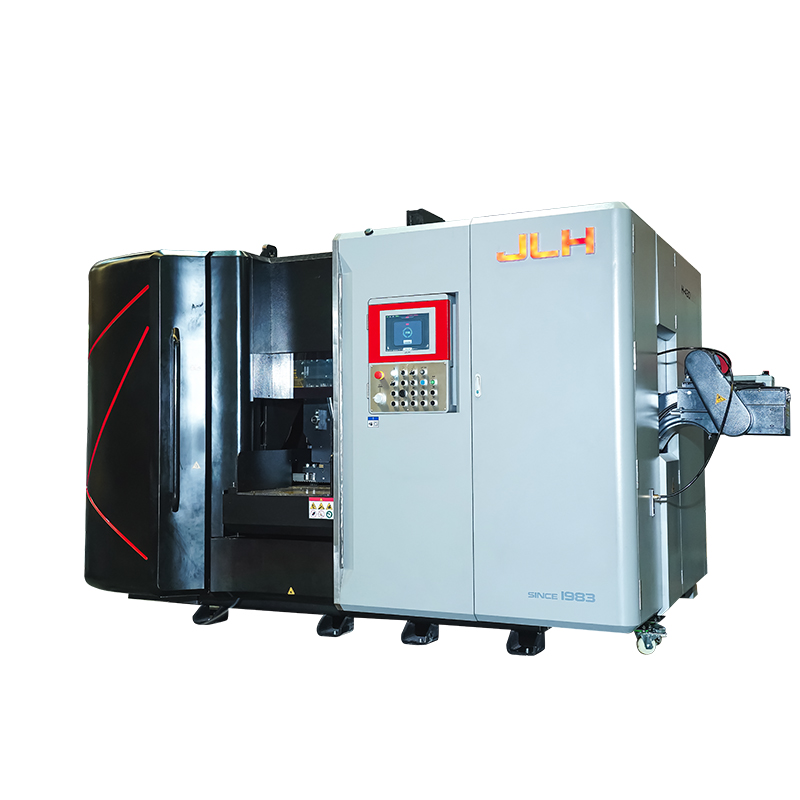

| H-430MAX | |||
Cutting range | Cutting range round | Ø430mm | Ø17in |
Cutting range square (W x H) | 430*430mm | 17*17in | |
Smallest size to be cut | 30*30mm | 1.2*1.2in | |
Clamping range | 30-430mm | 1.2-17in | |
| Shortest length of cut-off piece | 25mm | 1in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 170mm | 6.7in | |
Shortest remnant length individual cut | 40mm | 1.6in | |
| Dimensions and weight | Length | 2500mm | 98.4in |
| Width incl. chip conveyor | 3900mm | 153.5in | |
| Height | 2500mm | 98.4in | |
| Material support height | 805mm | 3.7in | |
Total weight | ≈6400kg | ≈14109lb | |
| Performance characteristics | Total connected load | 17kw | 22.6hp |
Power of saw motor | 11kw | 14.6hp | |
Hydraulic motor | 2.2kw | 3hp | |
Cutting speed infinitely variable with | 30-150m/min | 98.5-492ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Automatic material feed length, single stroke | 500mm | 19.69in | |
Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
Dimensions of saw blade | 6100*54*1.6mm | 240*2.1*0.06in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-430MAX |
| Exterior Protection | CE standard fully enclosed protection | ● |
| Downfeed System | JLH-EHA | ● |
| Saw Master | ● | |

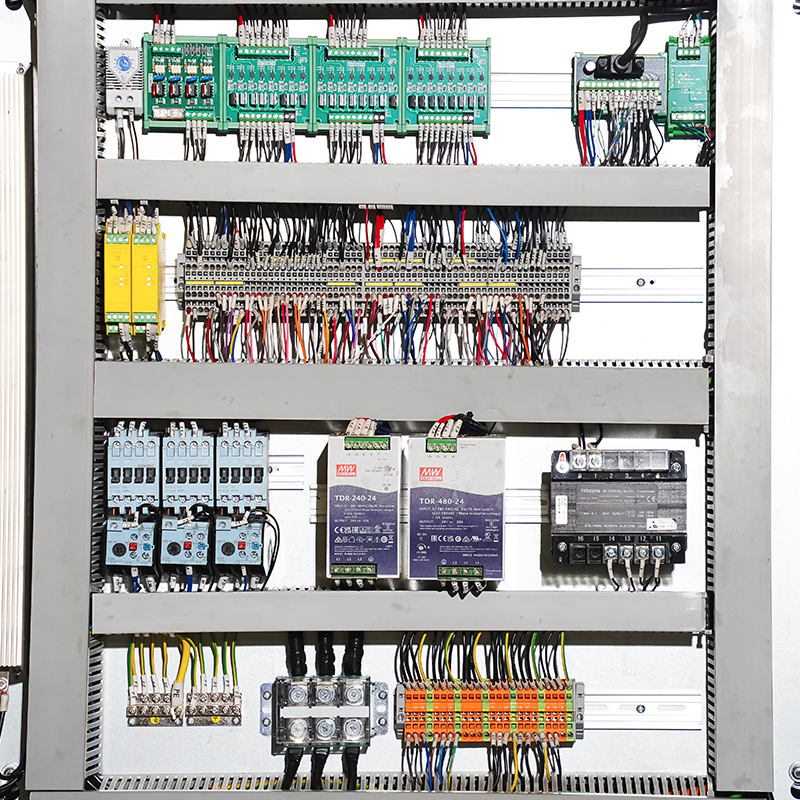

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ● | |
| HMI+Buttons | ● | |
| Inverter | ● | |
| 0-start (first cut option) | ○ | |
| Deviation detector | ● | |
| HYRAULICS | Hydraulic Blade tension | ● |
| Vise pressure differential valves | × | |
| Automatic chip conveyor (spiral) | × | |
| Automatic chip conveyor (belt) | ● | |
| Hydraulic saw guide clamping | ● | |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | × | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ● | |
| Roller type work table | ● | |
| MATERIAL FEEDING | Hydraulic driven | ● |

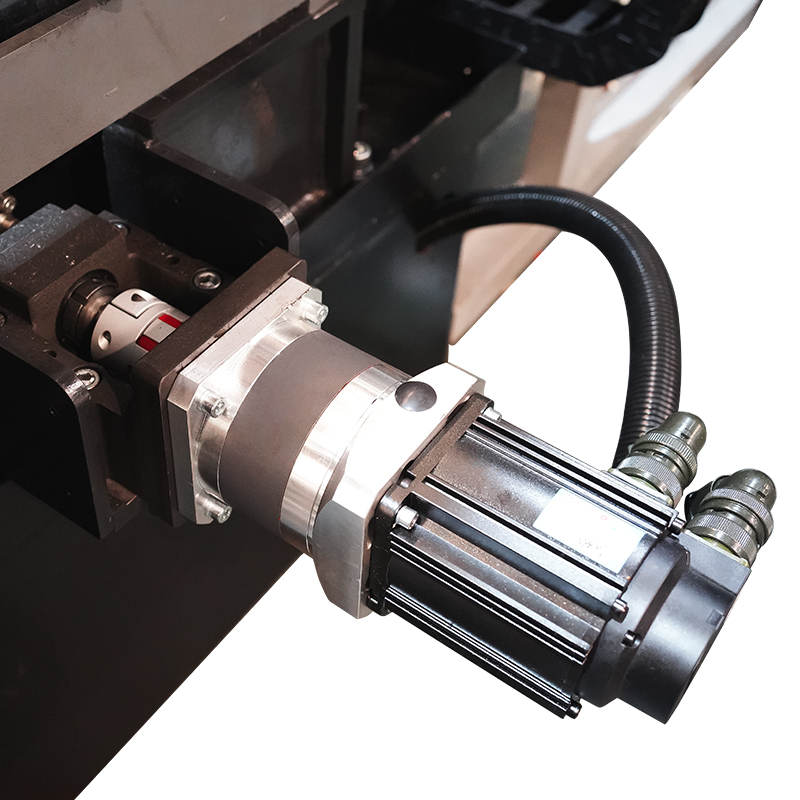

| Servo driven | ○ | |
| Mechanical structure | Main drive precision gear reducer | ● |
| Single Vise Clamping | × | |

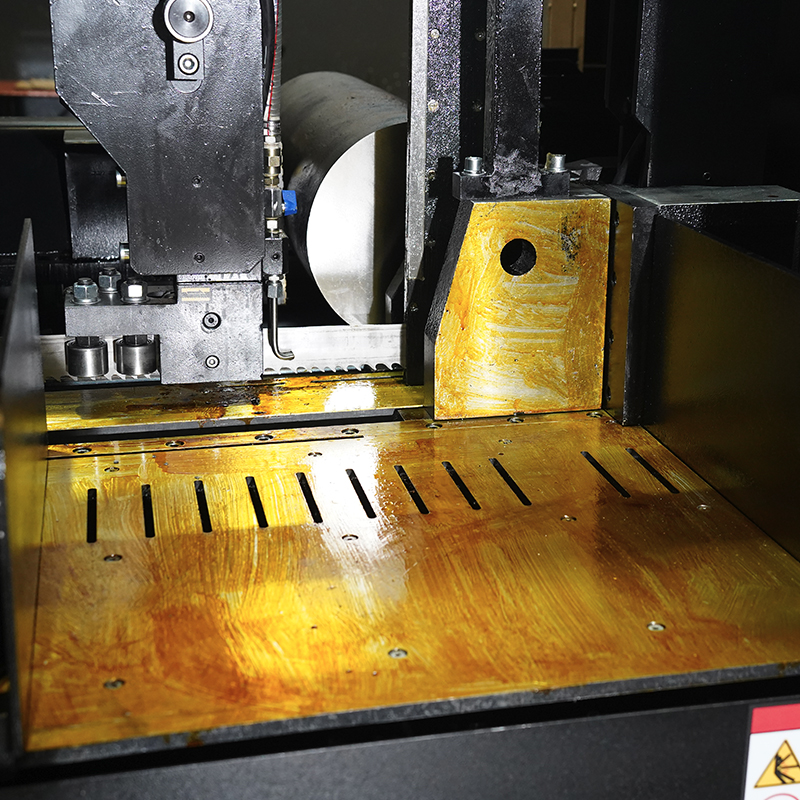

| Split Vise clamping | ● | |
| Hydraulic movable Guide arm | ● | |
| Other | Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
