- Specifications
- Configuration Table
| Specifications | |||

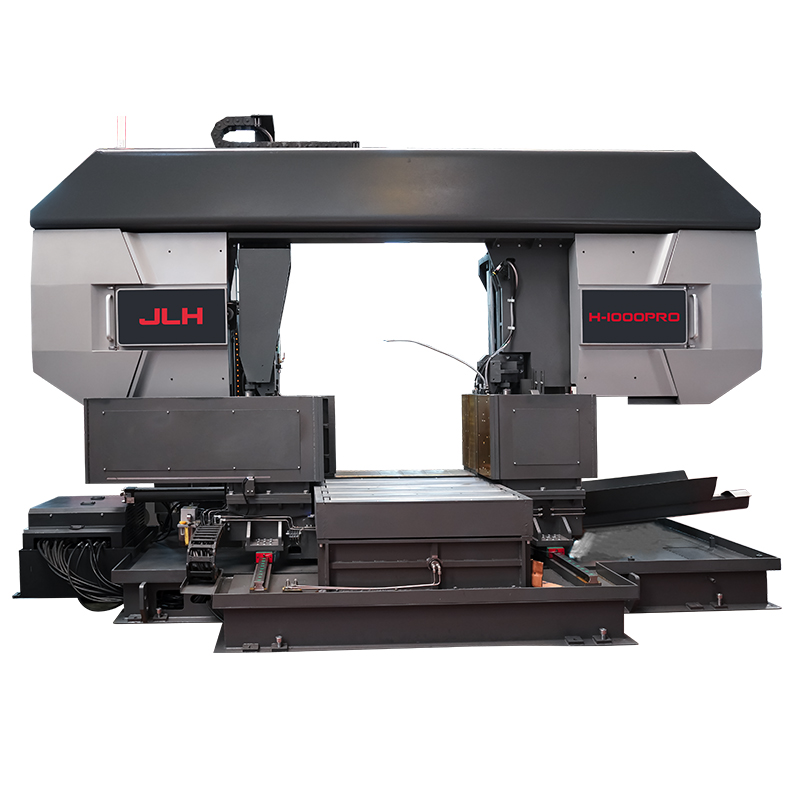

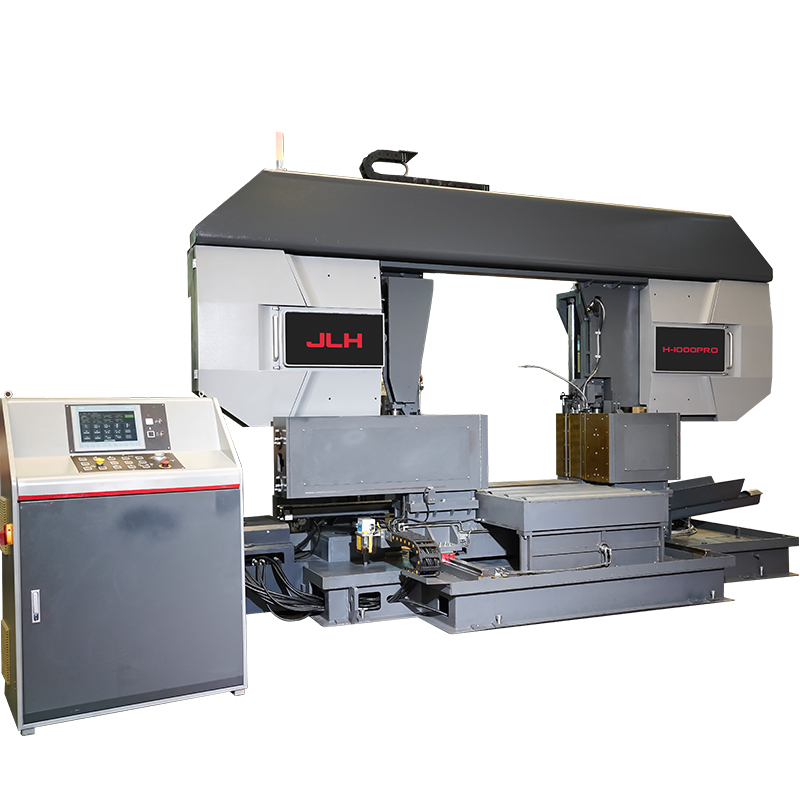

| H-1000PRO | |||
Cutting range | Cutting range round | Ø1000mm | Ø39.37in |
Cutting range square (W x H) | 1000*1000mm | 39.37*39.37in | |
Smallest size to be cut | 400*400mm | 15.8*15.8in | |
Clamping range | 400-1000mm | 15.75-39.37in | |
| Shortest length of cut-off piece | 50mm | 2in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 350mm | 13.78in | |
Shortest remnant length individual cut | 50mm | 2in | |
| Dimensions and weight | Length | 4300mm | 169.29in |
| Width incl. chip conveyor | 6000mm | 236.22in | |
| Height | 3100mm | 122.05in | |
| Material support height | 855mm | 33.66in | |
Total weight | ≈17000kg | ≈37485lb | |
| Performance characteristics | Total connected load | 33kw | 44hp |
Power of saw motor | 22kw | 30hp | |
Hydraulic motor | 3.75kw | 5hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
Automatic material feed length, single stroke | 500mm | 19.69in | |
Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
Dimensions of saw blade | 10900*67*1.6mm | 429.13*2.64*0.06in | |
| Configuration Table | ||
| Category of configuration | Functional description | H-1000PRO |
| Exterior Protection | CE standard fully enclosed protection | ● |
| Downfeed System | JLH-EHA | ● |
| Saw Master | ● | |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
Permanent Magnetic synch. Motor | ● | |
Sawbow anti-collision detection | ● | |
LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
Sawing Depth Control | ● | |

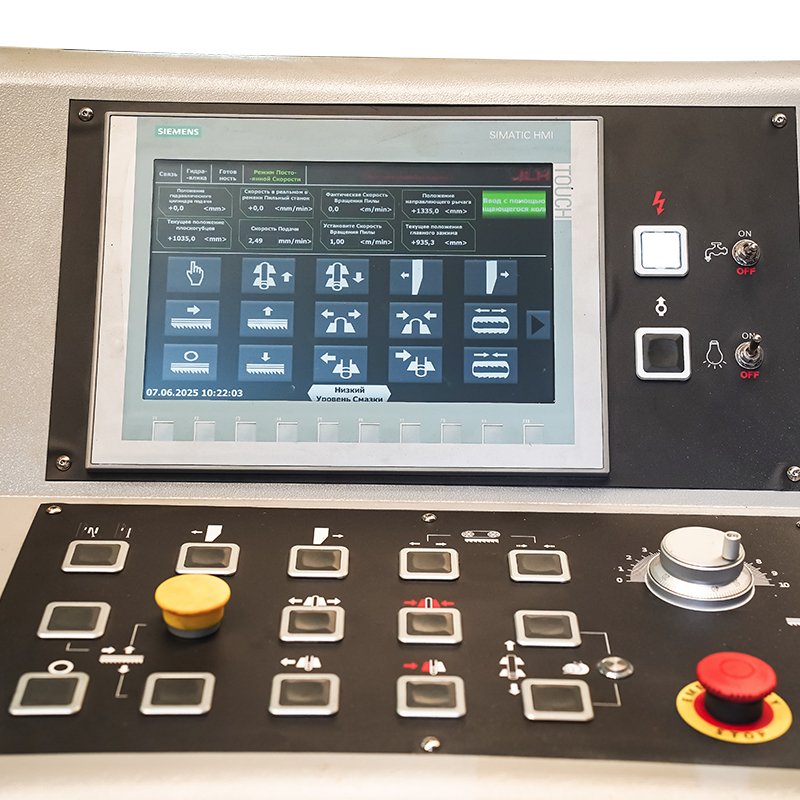

| HMI+Buttons | ● | |
| Inverter | ● | |
| 0-start (first cut option) | ○ | |
| Deviation detector | ● | |
| HYRAULICS | Hydraulic Blade tension | × |
| Vise pressure differential valves | ● | |
| Automatic chip conveyor (spiral) | ● | |
| Automatic chip conveyor (belt) | ● | |

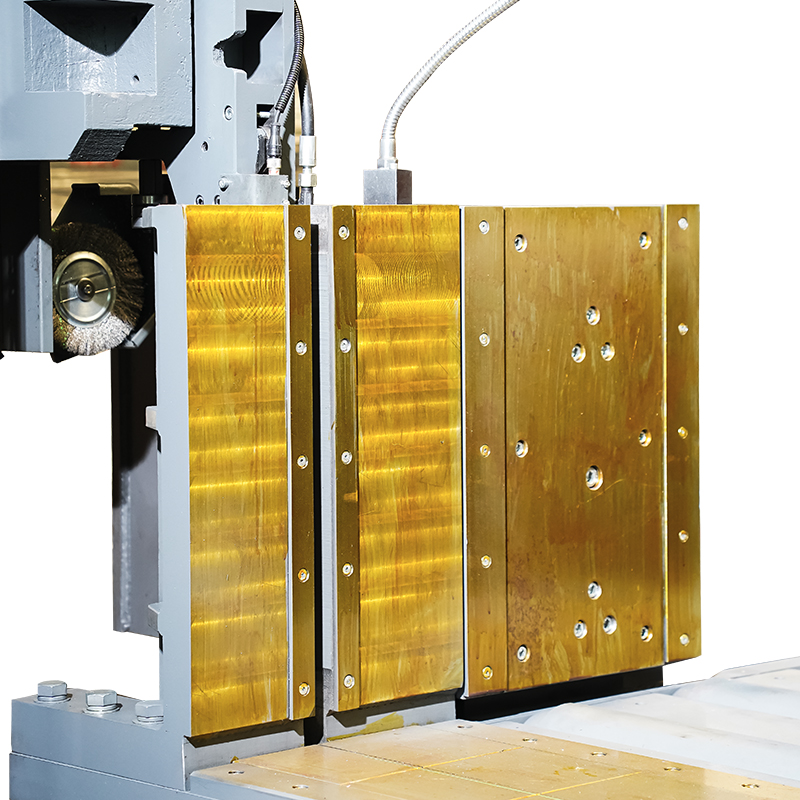

| Hydraulic saw guide clamping | ● | |
| Vise pressure regulator | × | |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | × | |
| Roller type work table | ● | |
| MATERIAL FEEDING | Hydraulic driven | ○ |
| Servo driven | ● | |

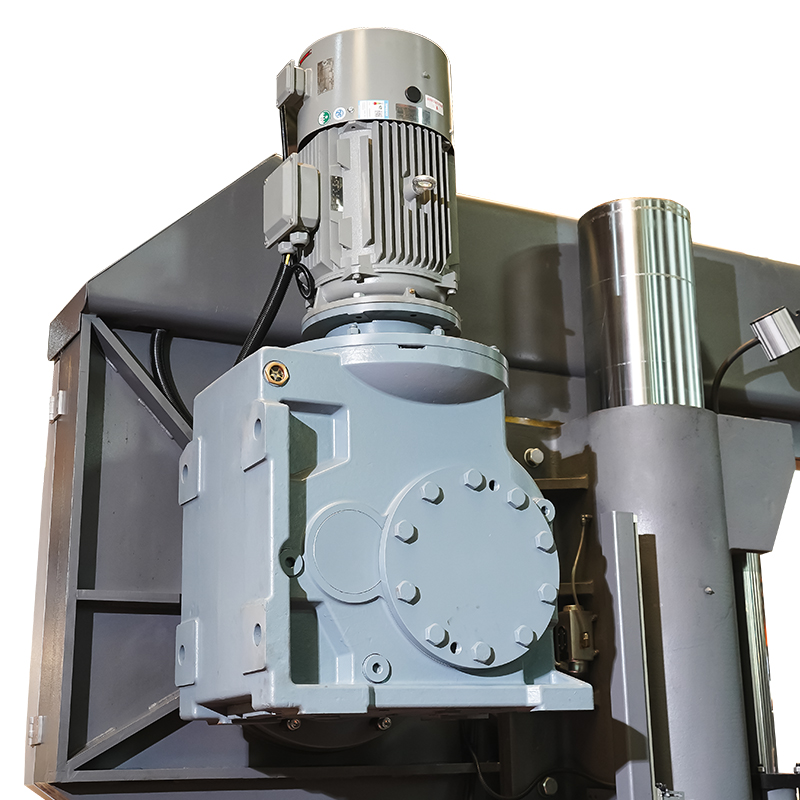

| Mechanical structure | Main drive precision gear reducer | ● |
| Single Vise Clamping | × | |
| Split Vise clamping | ● | |
| Hydraulic movable Guide arm | × | |
| Other | Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ | |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
