- Specifications
- Configuration Table
| Specifications | |||
| S-230DM ECO | |||
Cutting range | Cutting range 90° round | Ø230mm | Ø9in |
Cutting range 90° flat (W x H) | 310*230mm | 12.2*9in | |
Cutting range 45° round | Ø210mm | Ø8.3in | |
Cutting range 45° flat (W x H) | 210*210mm | 8.3*8.3in | |
Cutting range 60° round | Ø140mm | Ø5.5in | |
Cutting range 60° flat (W x H) | 140*140mm | 5.5*5.5in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-310mm | 0-12.2in | |
Shortest length of cut-off piece | 30mm | 1.2in | |
Shortest remnant length individual cut | 50mm | 2in | |
| Dimensions and weight | Length | 800mm | 31.5in |
| Width incl. chip conveyor | 1600mm | 63in | |
| Height | 1500mm | 59in | |
| Material support height | 880mm | 34.6in | |
Total weight | ≈470kg | ≈1036lb | |
| Performance characteristics | Total connected load | 2kw | 2.66hp |
Power of saw motor | 1.3-1.8kw | 1.7-2.4hp | |
Hydraulic motor | - | ||
Cutting speed infinitely variable with | 36/70m/min | 118/230ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
| Dimensions of saw blade | 2910*27*0.9mm | 114.6*1.06*0.03in | |
| Configuration Table | ||
| Category of configuration | Functional description | S-230DM ECO |
| Exterior Protection Sheet Metal | CE standard safety protection | ● |
| Downfeed System | Double valve feed control | × |
| Single valve feed control | ● | |

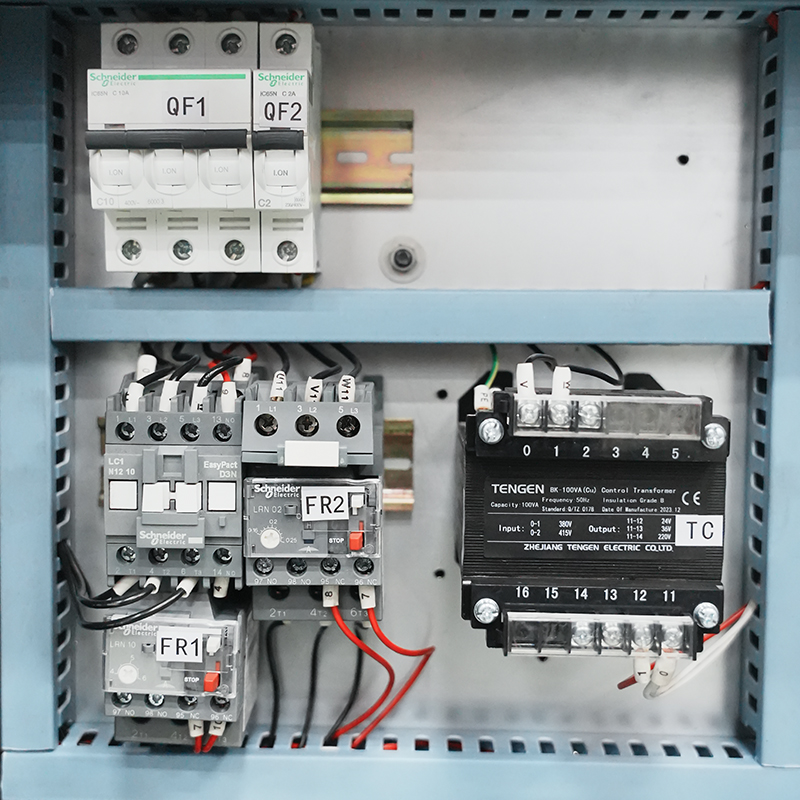

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
| LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |
| HMI+Buttons | × | |
| Inverter | × | |
| Deviation detector | × | |
| Automatic Angle sawing setting | × | |
| HYRAULICS | Vise pressure regulator | ○ |
| Motorized chip brush | × | |
| Top clamp | × | |
| Mist Spray device (1 L) | ○ | |
| Hydraulic cooling fan | × | |
| MATERIAL FEEDING | Hydraulic feeding | × |
| Servo feeding | × | |
| Mechanical structure | Single Vise Clamping | ● |
| Manual movable Guide arm | ● | |
| Other | Tool box (wire brush, levelling pads, spare paint) | × |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
