- Specifications
- Configuration Table
| Specifications | |||

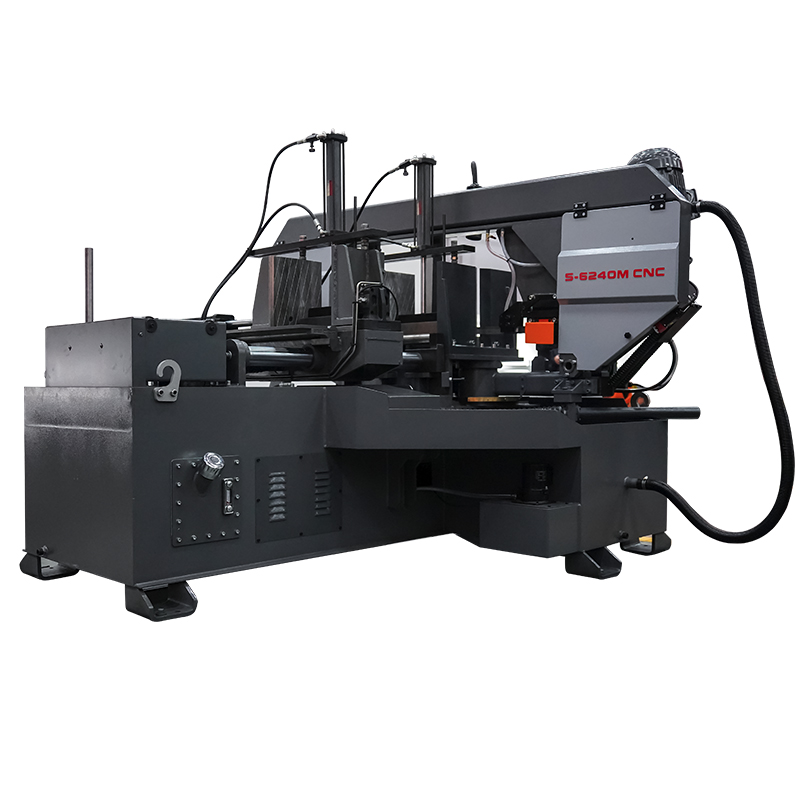

| S-6240M CNC | |||
Cutting range | Cutting range 90° round | Ø420mm | Ø16.5in |
Cutting range 90° flat (W x H) | 610*420mm | 24*16.5in | |
Cutting range 45° round | Ø400mm | Ø15.7in | |
Cutting range 45° flat (W x H) | 400*400mm | 15.7*15.7in | |
Cutting range 60° round | Ø280mm | Ø11in | |
Cutting range 60° flat (W x H) | 280*280mm | 11*11in | |
Smallest size to be cut | 10*10mm | 0.4*0.4in | |
Clamping range | 0-610mm | 0-24in | |
Shortest length of cut-off piece | 20mm | 0.8in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 250mm | 9.88in | |
Shortest remnant length individual cut | 50mm | 2in | |
| Dimensions and weight | Length | 3000mm | 118.1in |
| Width incl. chip conveyor | 3060mm | 120.5in | |
| Height | 1700mm | 66.9in | |
| Material support height | 905mm | 35.6in | |
Total weight | ≈1650kg | ≈3637lb | |
| Performance characteristics | Total connected load | 5kw | 6.6hp |

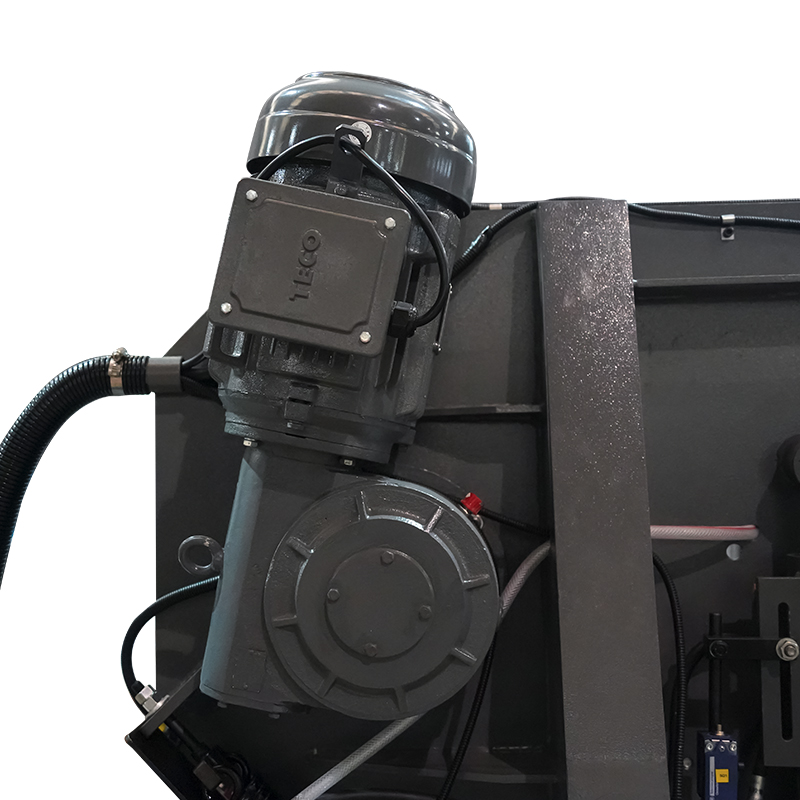

Power of saw motor | 3kw | 4hp | |
Hydraulic motor | 1.5kw | 2hp | |
Cutting speed infinitely variable with | 20-80m/min | 65.6-262.4ft/min | |
Saw feed speed | 1-300 mm/min | 0.04-11.8in/min | |
| Automatic material feed length, single stroke | 500mm | 19.69in | |
| Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
| Dimensions of saw blade | 5200*34*1.1mm | 204.7*1.3*0.04in | |
| Configuration Table | ||
| Category of configuration | Functional description | S-6240M CNC |
| Exterior Protection Sheet Metal | CE standard safety protection | ● |
| Downfeed System | Double valve feed control | ○ |
| Single valve feed control | ● | |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
| LED working light | ● | |
Laser line projection | ○ | |
Blade breakage detection | ● | |

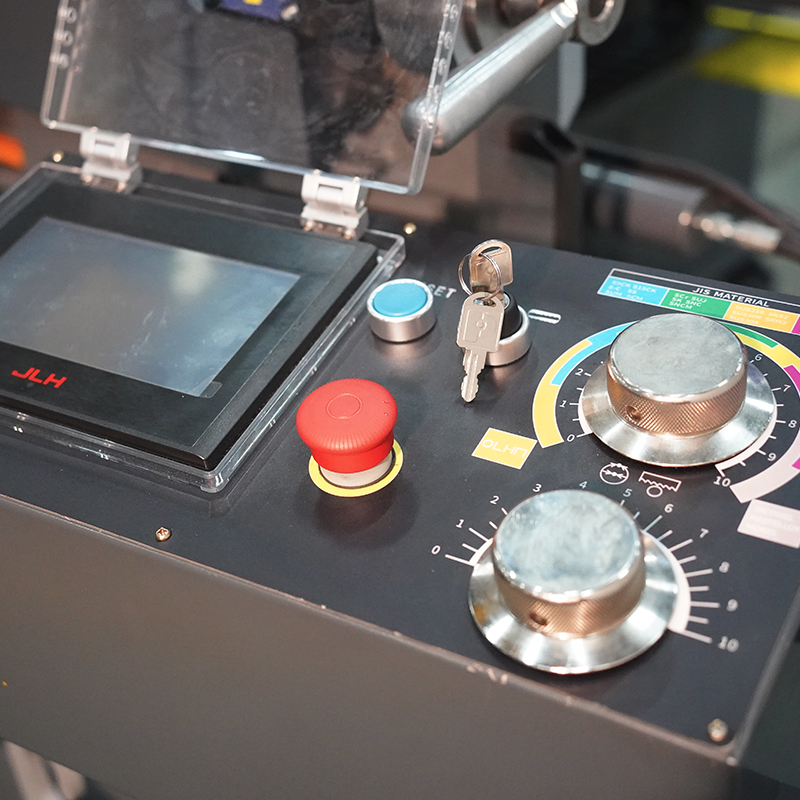

| HMI+Buttons | ○ | |
| Inverter | ● | |
| Deviation detector | ○ | |

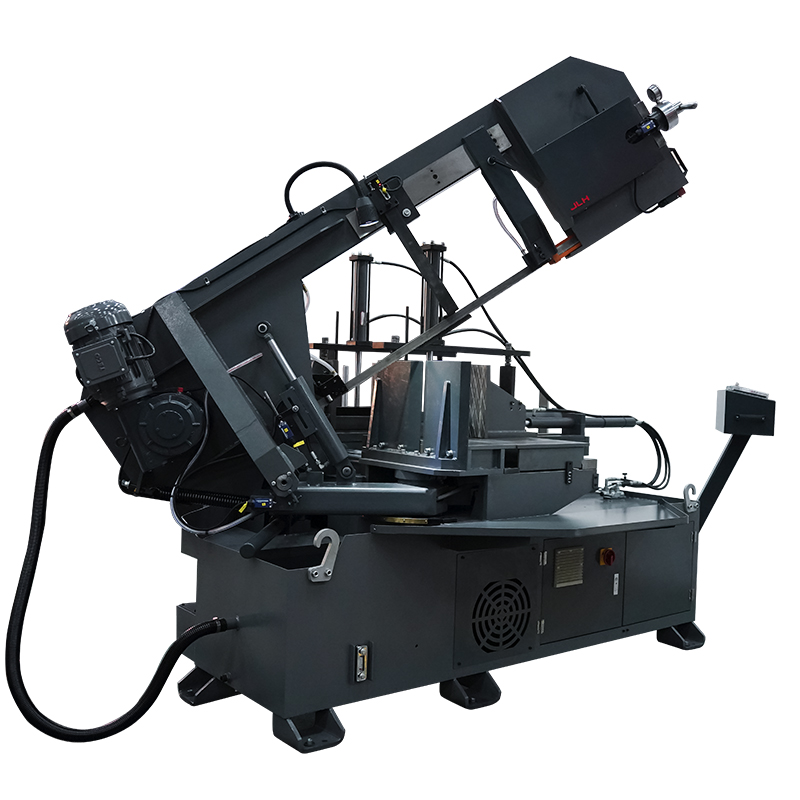

| Automatic Angle sawing setting | ● | |

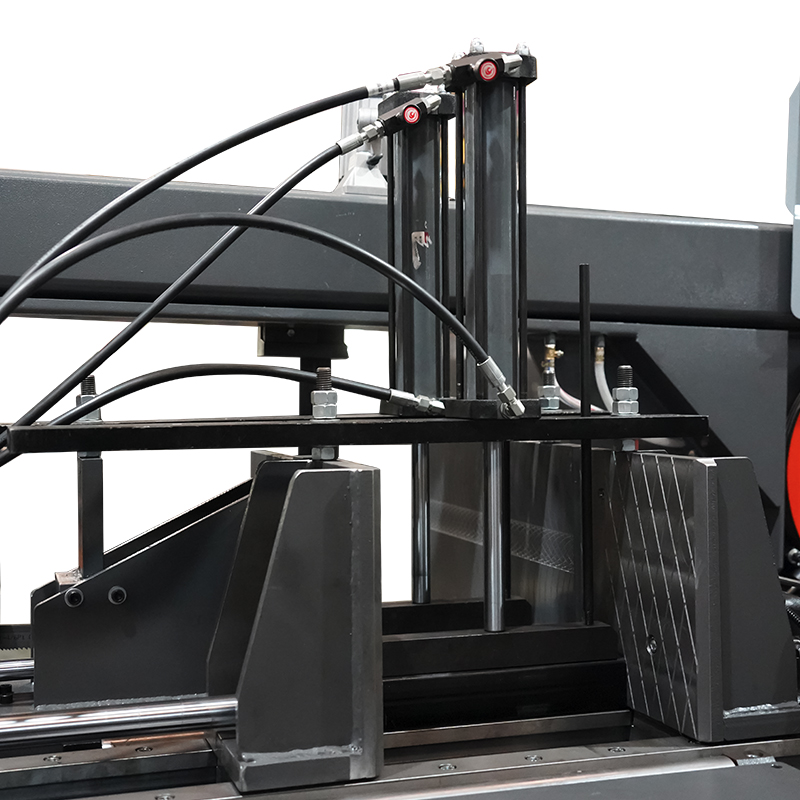

| HYRAULICS | Vise pressure regulator | ● |
| Motorized chip brush | ● | |
| Top clamp | ○ | |
| Mist Spray device (1 L) | ○ | |
| Hydraulic cooling fan | ● | |

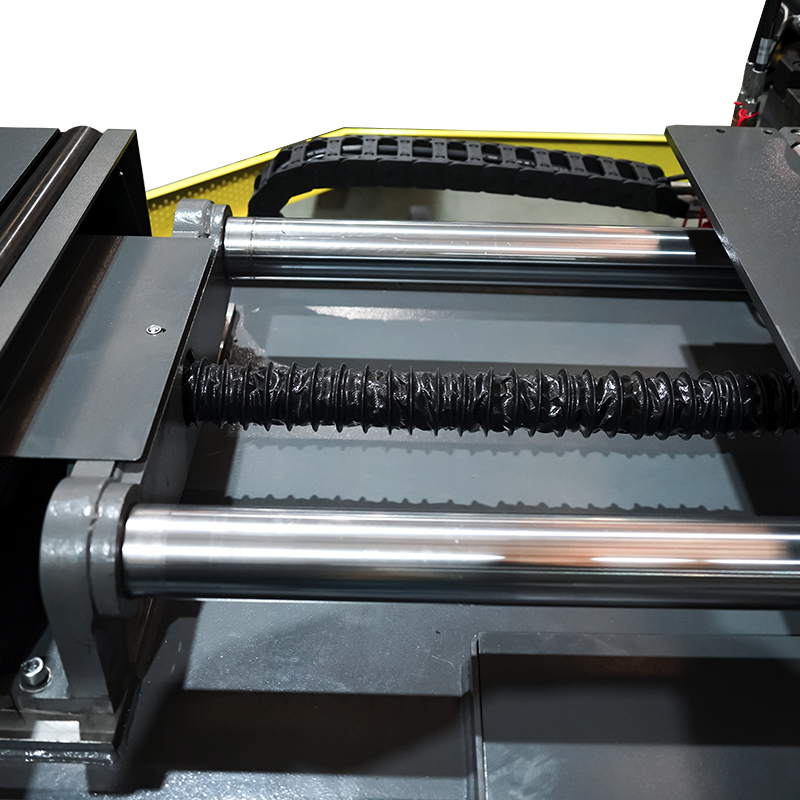

| MATERIAL FEEDING | Hydraulic feeding | ● |

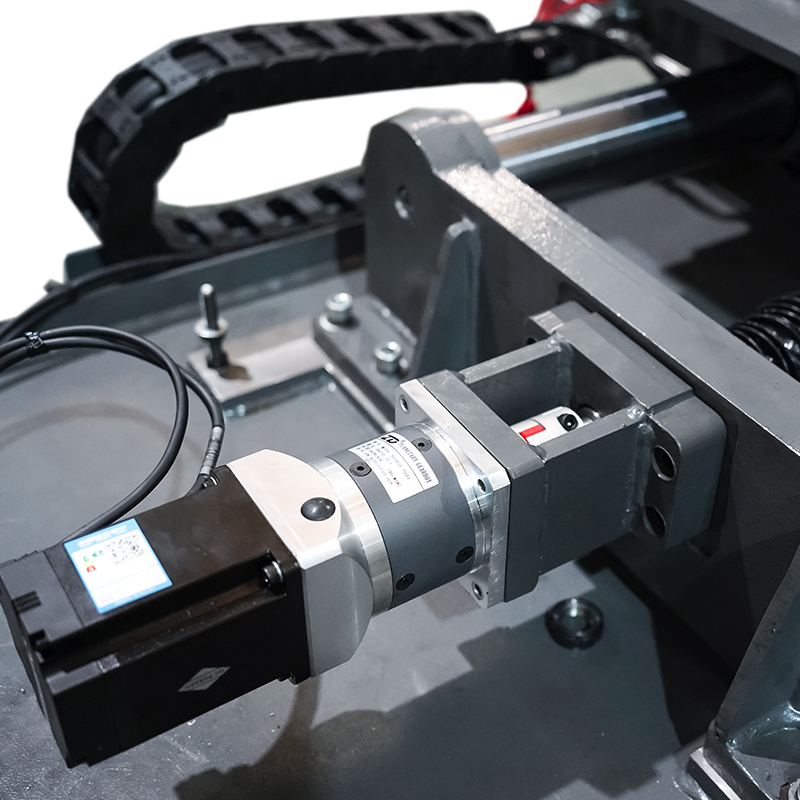

| Servo feeding | ○ | |
| Mechanical structure | Single Vise Clamping | ● |
| Manual movable Guide arm | ● | |
| Other | Tool box (wire brush, levelling pads, spare paint) | × |
| One piece Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
