Specifications

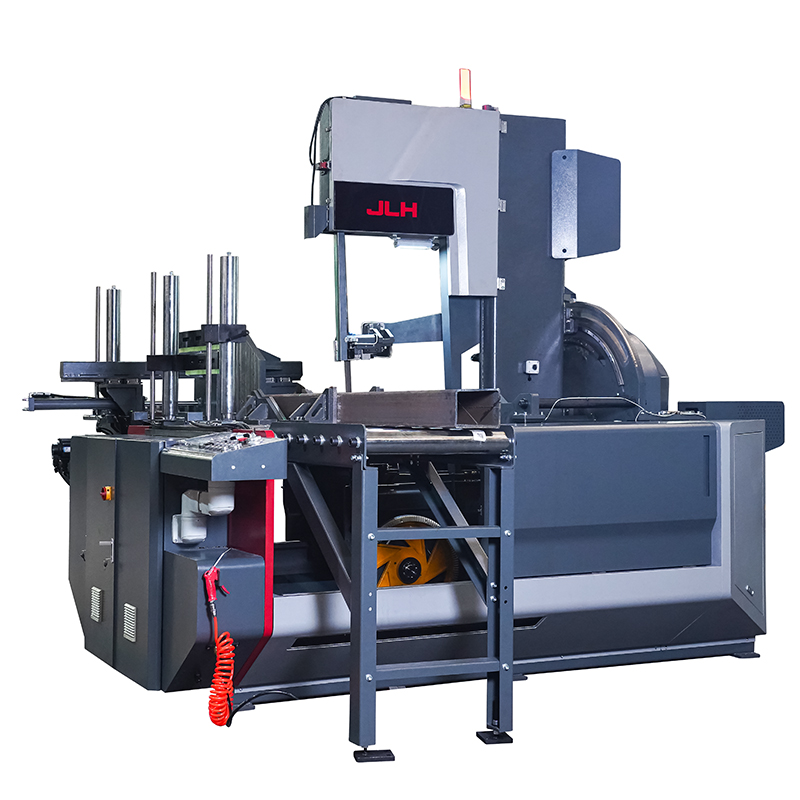

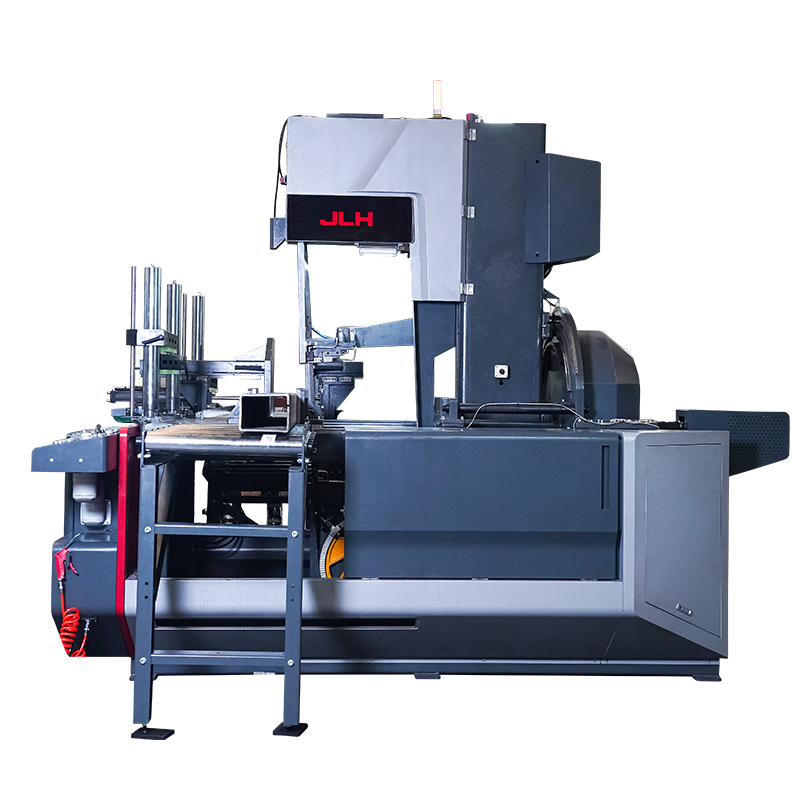

		V-20 DM PRO
Cutting range	Cutting range 90° round	Ø500mm	Ø20in
	Cutting range 90° flat (W x H)	500*730mm	20*28.7in
	Cutting range 45° round	Ø485mm	Ø19in
	Cutting range 45° flat (W x H)	500*485mm	20*19in
	Cutting range 60° round	Ø300mm	Ø11.8in
	Cutting range 60° flat (W x H)	500*300mm	20*11.8in
	Smallest size to be cut	10*10mm	0.39*0.39in
	Clamping range	10-500mm	0.39-20in
	Shortest length of cut-off piece	700mm	27.6in
	Shortest remnant length individual cut	700mm	27.6in
Dimensions and weight	Length	4580mm	180.3in
	Width incl. chip conveyor	3630mm	142.9in
	Height	2900mm	114.2in
	Material support height	1220mm	48in
	Total weight	≈4500kg	≈9921lb
Performance characteristics	Total connected load	9kw	12hp
	Power of saw motor	5kw	6.7hp
	Hydraulic motor	1.5kw	2hp
	Cutting speed infinitely variable with	20-110m/min	65.6-360.9ft/min
	Saw feed speed	1-300 mm/min	0.04-11.8in/min
	Rapid motion	2000mm/min	78.8in/min
	Automatic material feed length, single stroke	1250mm	49.2in
	Automatic material feed length, multiple stroke	9999mm	393.66in
	Dimensions of saw blade	5760341.1mm	226.771.340.043in

Configuration Table
Category of configuration	Functional description	V-20 DM PRO
Exterior Protection Sheet Metal	CE standard safety protection	●
Downfeed System	Servo feeding	●
ELECTRICS	CE Electrical Safety	●
	UL Electrical Safety	○
	LED working light	●
	Laser line projection	●
	Blade breakage detection	●
	Sawing depth control	●

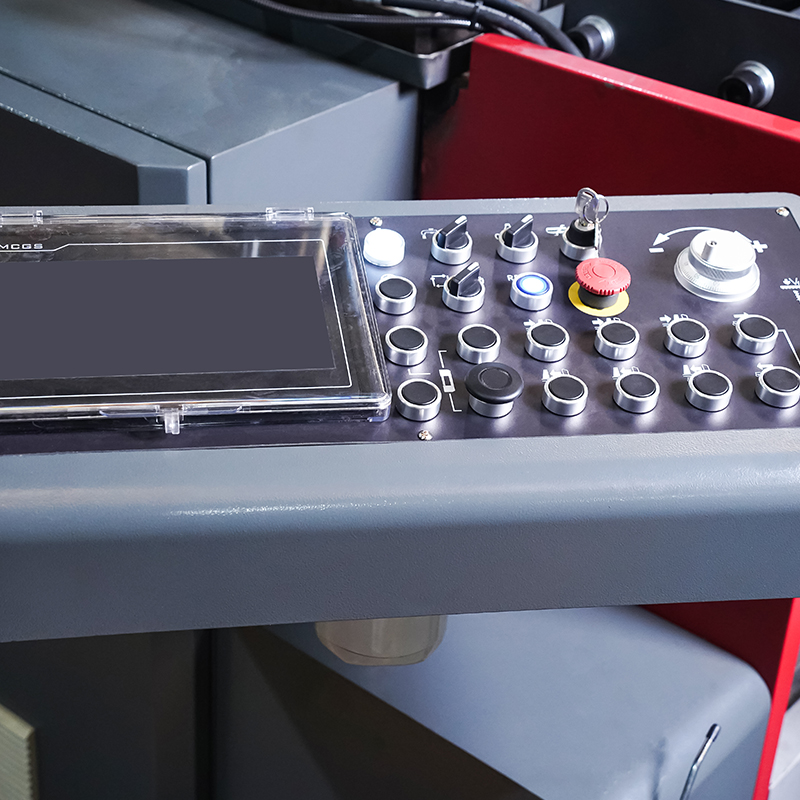

	HMI+Buttons	●
	Inverter	●
	Automatic Angle Sawing Setting (Servo)	●
HYRAULICS	Hydraulic Blade Tension	●
	Hydraulic Blade Guide Clamping	●
	Hydraulic Cooling Fan	●
	Auto Lubrication Device	●
	Simple Roller Table	○
MATERIAL FEEDING SYSTEM	Servo feed	●
Other	Single Vise Clamping	●
	Hydraulic Movable Guide Arm	●

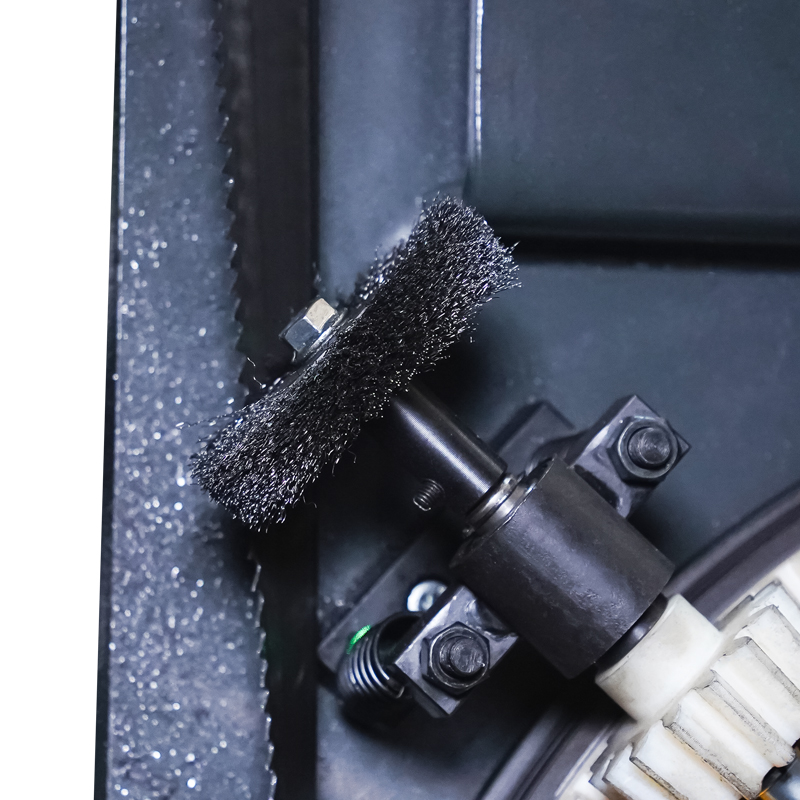

	Tool box (wire brush, levelling pads, spare paint)	●
	One piece Saw blade	●
	Transport underframe for containers	○
● : Standard ○ : Optional × : Non-optional
