| Specifications | ||

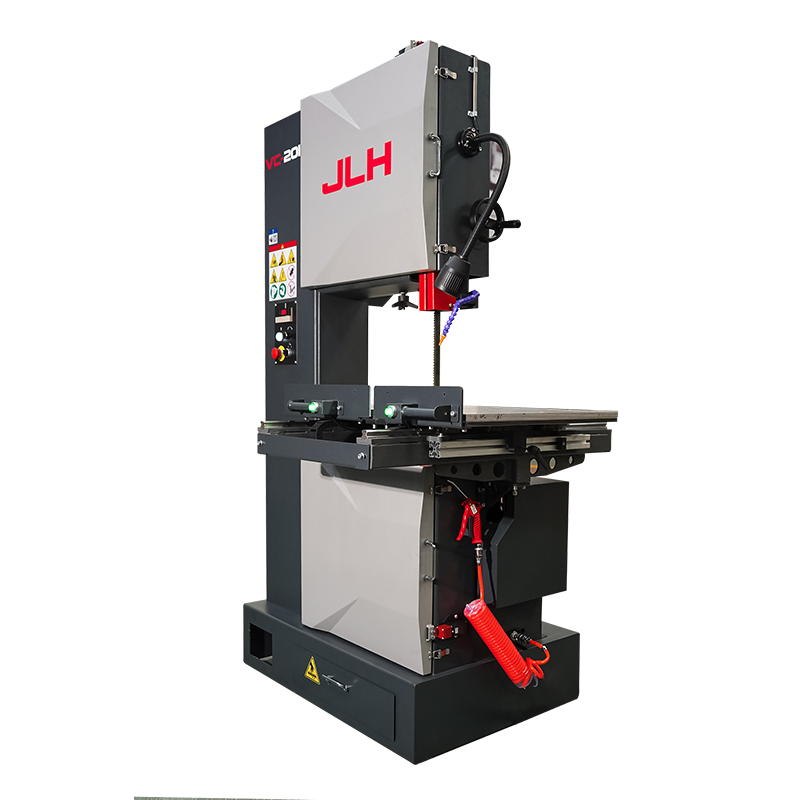

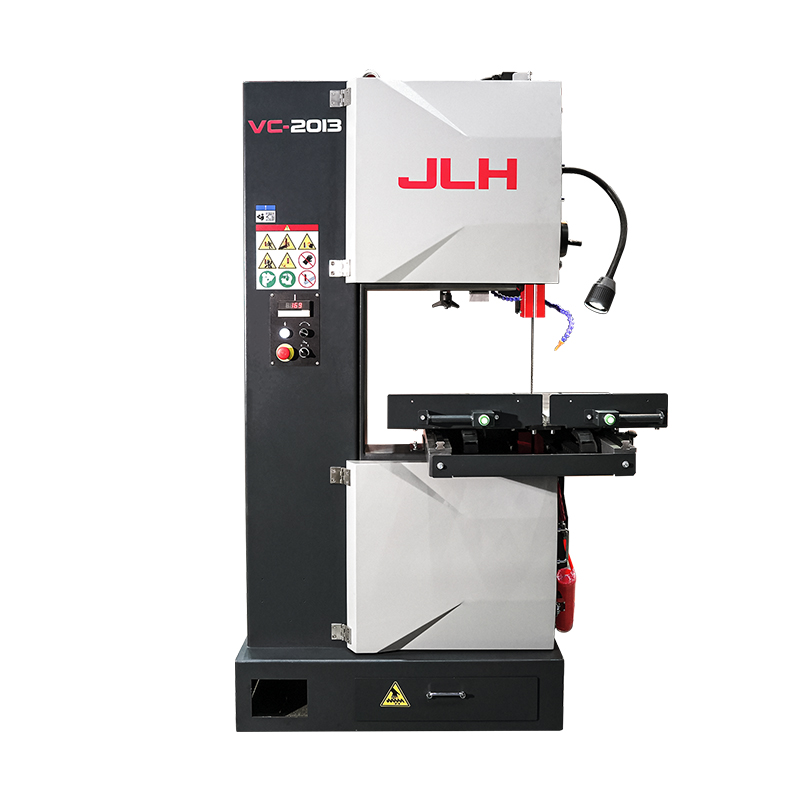

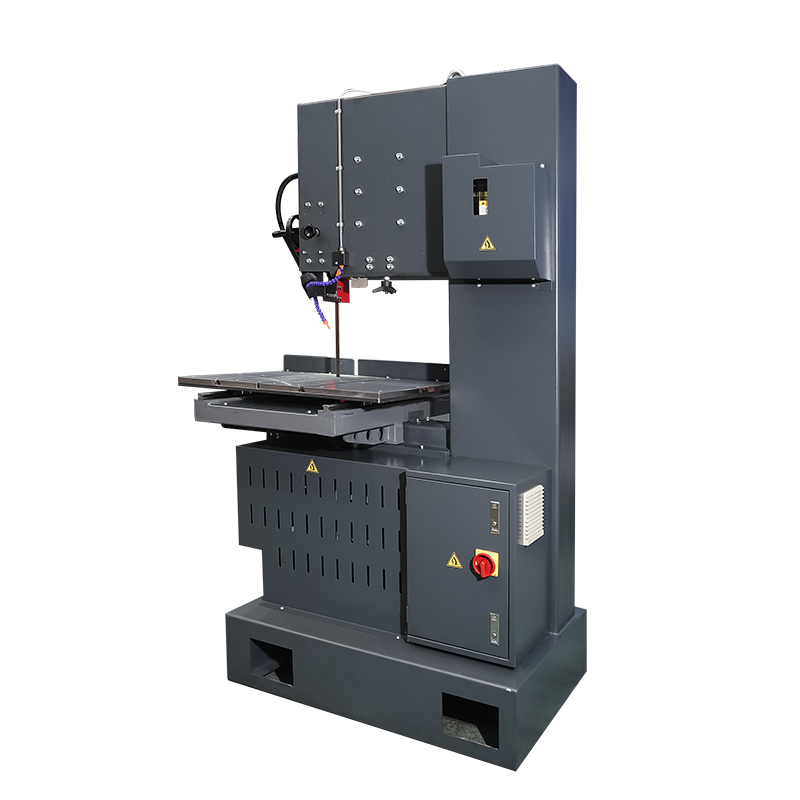

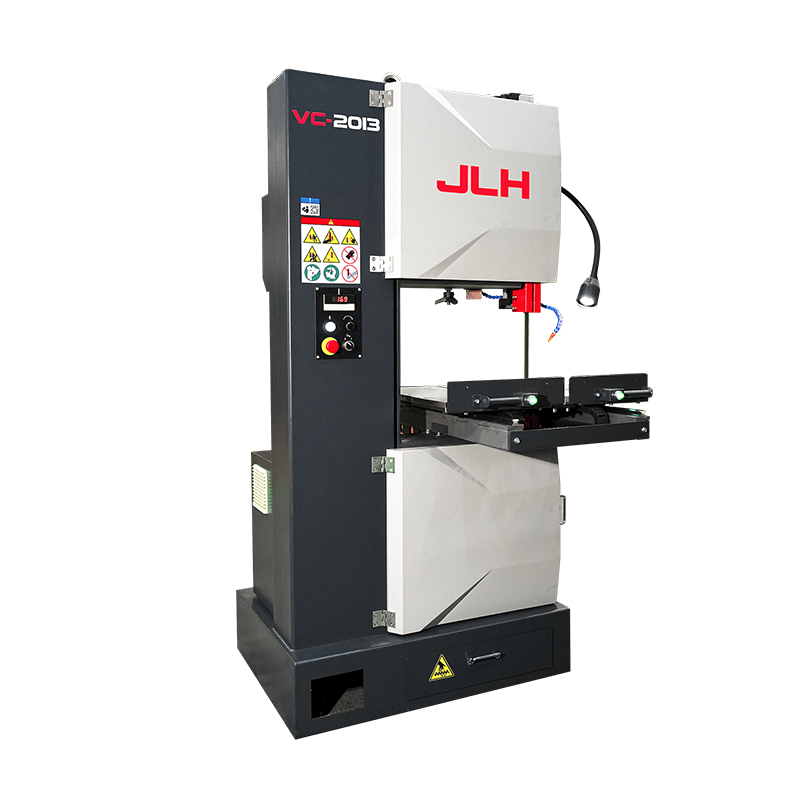

| VC-2013 | ||
Cutting capacity | right45° ~ left 10° | |
| 90° Height: 330mm | 13inch | |
| 90° Width: 510mm | 20inch | |
Band Saw Blade Specification | 3912×(9-27)mm | 154×(0.35-1.06)inch |
Cutting Speed | 30-300m/min | 98-984 ft/min |

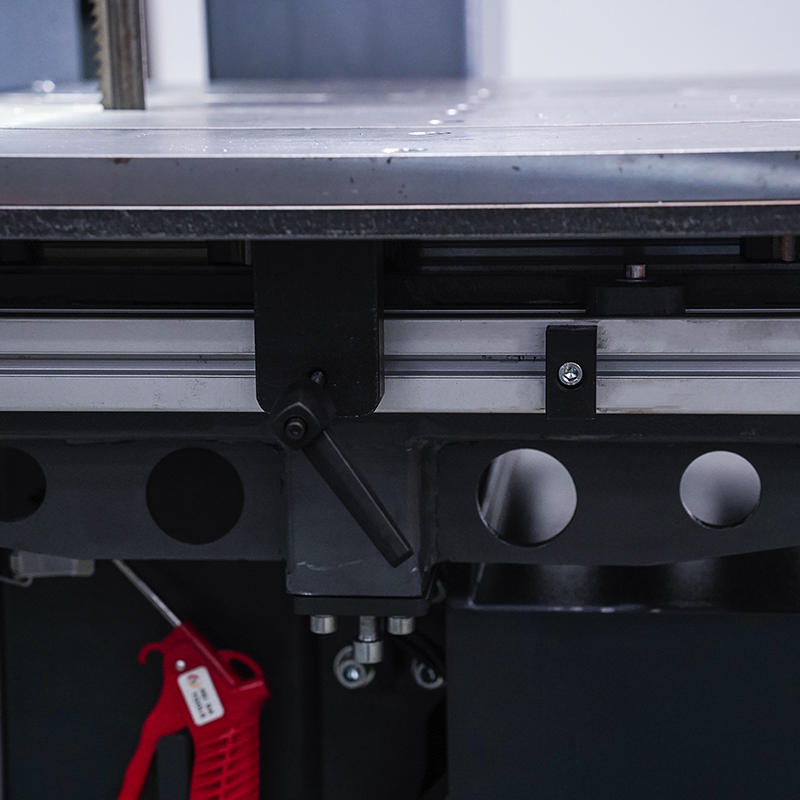

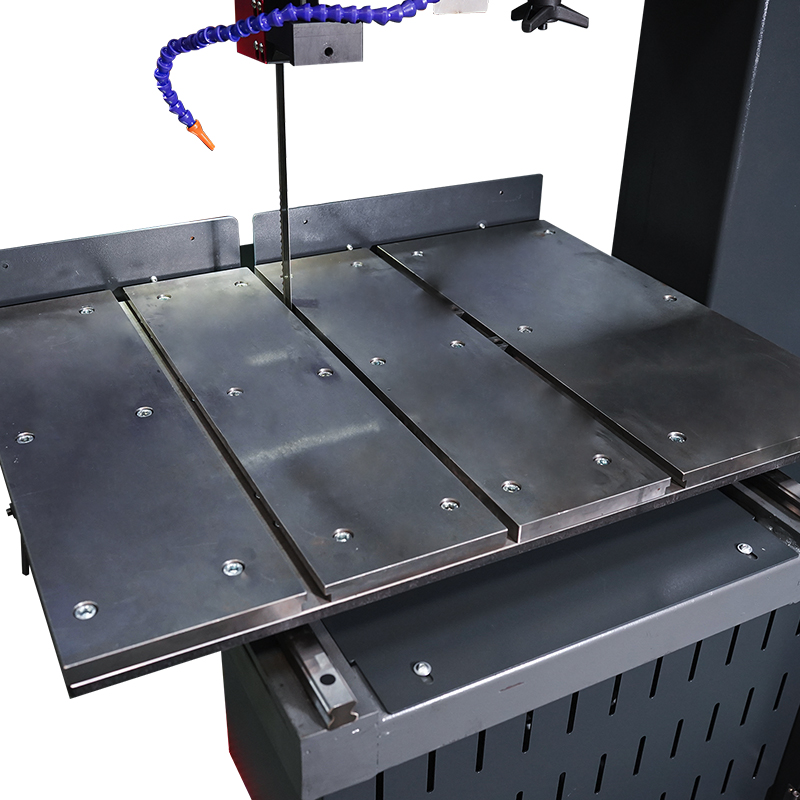

Workbenchsize | 800×500mm | 31.5×19.7 inch |
Cutting Method | Manual Push Cut | |
Band Saw Blade Tensioning Method | Manual Push Cut | |
Main Drive Method | Servo motor+reducer | |
Main Motor Power | 1.5kw | 2hp |
