| Specifications | |||

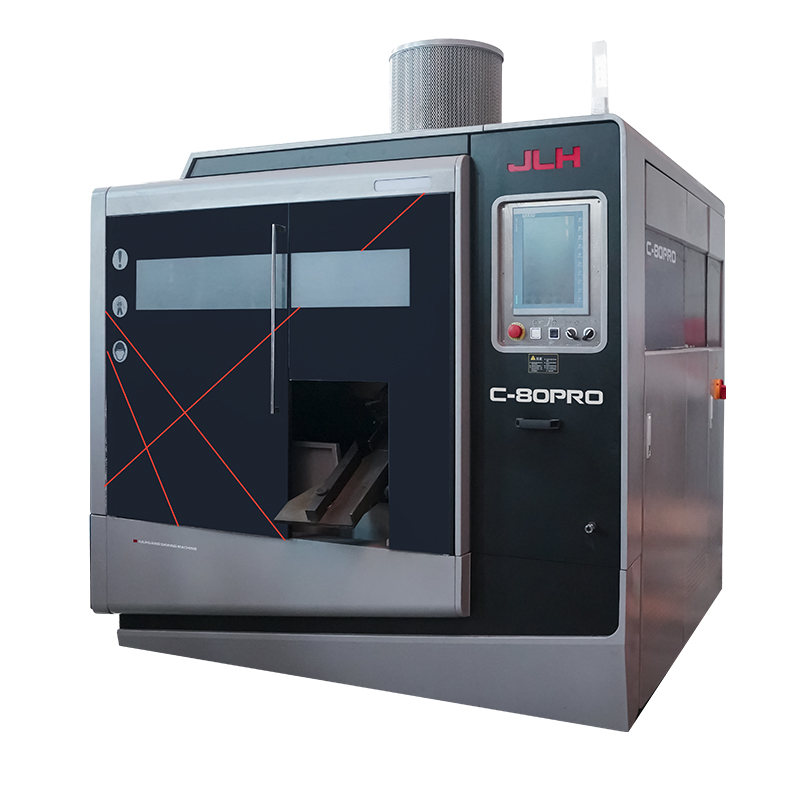

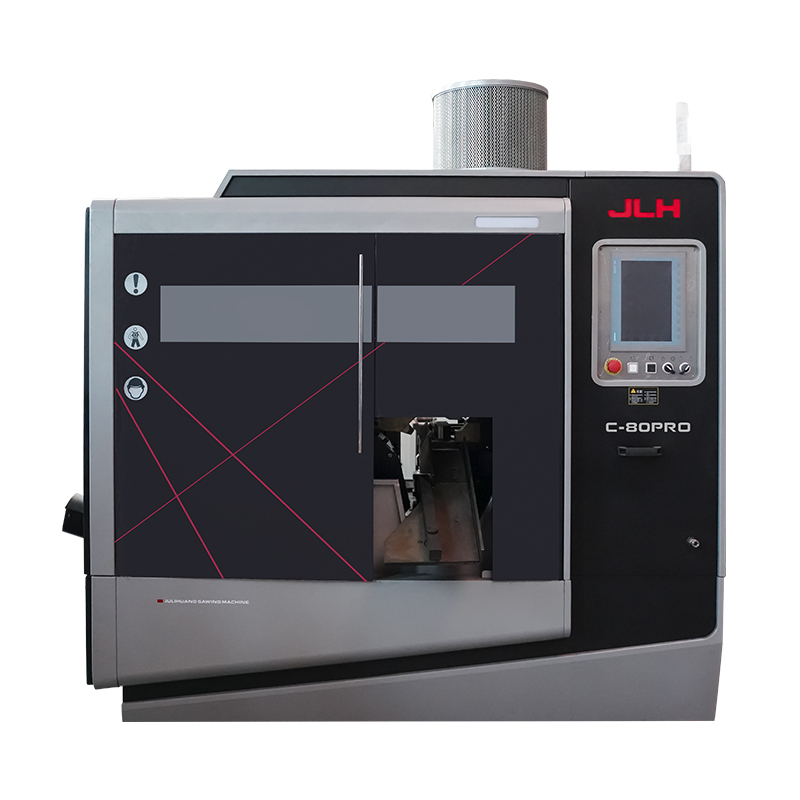

| C-80PRO | |||
Cutting range | Cutting range round | Ø10-Ø80mm | Ø0.39-Ø3.14in |
Cutting range square | 10mm-60mm | 0.39in*2.36in | |
Shortest length of cut-off piece | 5mm | 0.2in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 65mm+a | 2.55in+a | |
Shortest remnant length individual cut | 30mm+a | 1.18in+a | |
| Dimensions and weight | Length | 2300mm | 90.55in |
| Width incl. chip conveyor | 2260mm | 88.97in | |
| Height | 2210mm | 87in | |
| Material support height | 925mm | 36.4in | |
Total weight | ≈3950kg | ≈8690lb | |
| Performance characteristics | Total connected load | 18kw | 24hp |
Power of saw motor | 11kw | 14.6hp | |
Hydraulic motor | 2.2kw | 3hp | |
Cutting speed infinitely variable with | 30-160r/min | ||
Saw feed speed | 0.3-30mm/s | 0.011-1.2in/s | |
| Rapid motion | 150mm/s | 5.9in/s | |
| Automatic material feed length, single stroke | 800mm | 31.49in | |
| Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
| Saw blade diameter | Ø315mm | Ø12.4in | |
| Saw blade bores | Ø32 | Ø1.25in | |
| Saw blade thickness | 2mm*2.3mm | 0.078in*0.009in | |
| Configuration Table | ||
| Category of configuration | Functional description | C-80PRO |
| Exterior Protection Sheet Metal | CE standard safety protection | ● |
| SAW FEED SYSTEM | 45 degree servo feed | ● |
| 45 degree servo feed | × | |
| JLH-EHA | ○ | |
| Saw Master | ○ | |

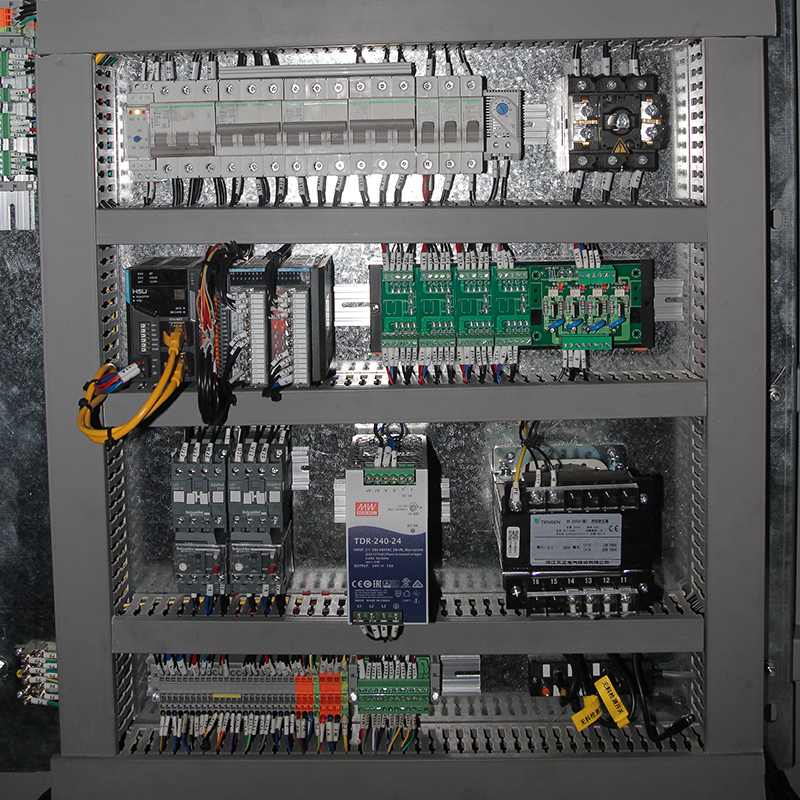

| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
| Main drive permanent magnet motor | ● | |
| HMI+Buttons | ● | |
Inverter | ● | |
Mistspray system (2L) | ● | |
| Dust collection device | ● | |
| Cutting pipe blast device | ● | |
| Cabinet air conditioner | ● | |
| LED working light | ● | |

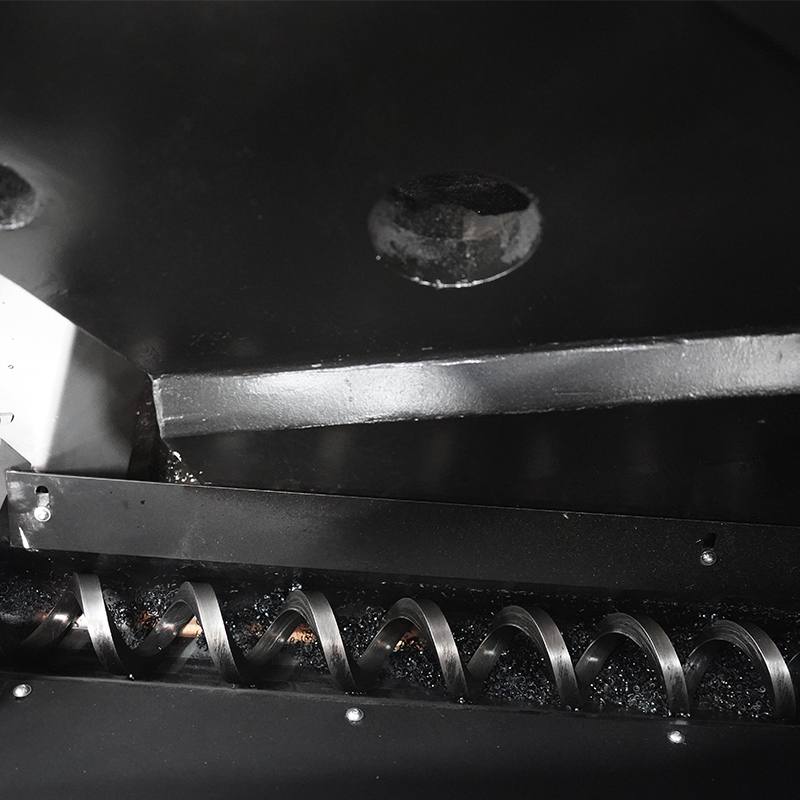

| HYRAULICS | Automatic chip conveyor (spiral) | ● |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ● | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ● | |
| MATERIAL FEEDING | Roller type work table | × |
| Simple Roller table | ● | |
| 0.8M Servo Feed | ● | |
| 1.5M power output material table | ○ | |
| 2M Servo Power output material table | ○ | |
| Third vise | ○ | |
| 5,5m inclined powered magazine (rectangular material) | ○ | |
| 5,5m inclined powered magazine (round material) | ○ | |
| 5,5m belt infeed magazine (round material) | ○ | |
| Other | Sawdust collection Cart 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| Circular Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
