- Specifications
- Configuration Table
| Specifications | |||

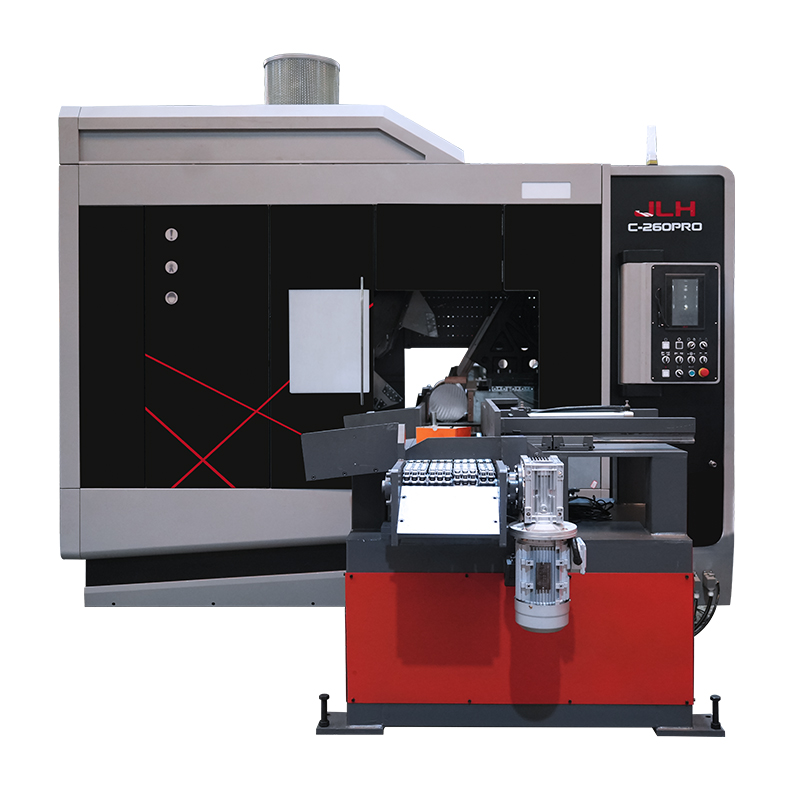

| C-260PRO | |||
Cutting range | Cutting range round | Ø100-Ø260mm | Ø3.93-Ø10.24in |
Cutting range square | 100mm*200mm | 3.93in*7.87in | |
Shortest length of cut-off piece | 15mm | 0.6in | |
Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 100mm+a | 3.94in+a | |
Shortest remnant length individual cut | 80mm+a | 3.15in+a | |
| Dimensions and weight | Length | 2800mm | 110.24in |
| Width incl. chip conveyor | 4500mm | 177.17in | |
| Height | 3000mm | 118.11in | |
| Material support height | 925mm | 36.4in | |
Total weight | ≈11500kg | ≈25353lb | |
| Performance characteristics | Total connected load | 65kw | 87hp |
Power of saw motor | 45kw | 60hp | |
Hydraulic motor | 5.5kw | 7.3hp | |
Cutting speed infinitely variable with | 20-80r/min | ||
Saw feed speed | 0.3-30mm/s | 0.011-1.2in/s | |
| Rapid motion | 150mm/s | 5.9in/s | |
| Automatic material feed length, single stroke | 1000mm | 39.37in | |
| Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
| Saw blade diameter | 840mm | Ø33.1in | |
| Saw blade bores | Ø80mm | Ø3.15in | |
| Saw blade thickness | 3.2mm*4mm | 0.125in*0.157in | |
| Configuration Table | ||
| Category of configuration | Functional description | C-260PRO |
| EXTERIOR PROTECTION | CE standard fully enclosed protection | ● |
| SAW FEED SYSTEM | 45 degree servo feed | × |
| 45 degree servo feed | ● | |
| JLH-EHA | ○ | |
| Saw Master | ○ | |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
| Main drive permanent magnet motor | ● | |
| HMI+Buttons | ● | |
Inverter | ● | |
Mistspray system (2L) | ● | |
| Dust collection device | ● | |
| Cutting pipe blast device | ● | |
| Cabinet air conditioner | ● | |
| LED working light | ● | |
| HYRAULICS | Automatic chip conveyor (spiral) | ● |
| Vise pressure regulator | ● | |
| Motorized chip brush | ● | |
| Top clamp | ● | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ● | |
| MATERIAL FEEDING | Roller type work table | ● |
| Simple Roller table | × | |
| 0.8M Servo Feed | ● | |
| 1.5M power output material table | ● | |
| 2M Servo Power output material table | ○ | |
| Third vise | × | |
| 5,5m inclined powered magazine (rectangular material) | × | |
| 5,5m inclined powered magazine (round material) | × | |
| 5,5m belt infeed magazine (round material) | ● | |
| Other | Sawdust collection Cart 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| Circular Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
