- Specifications
- Configuration Table
| Specifications | |||

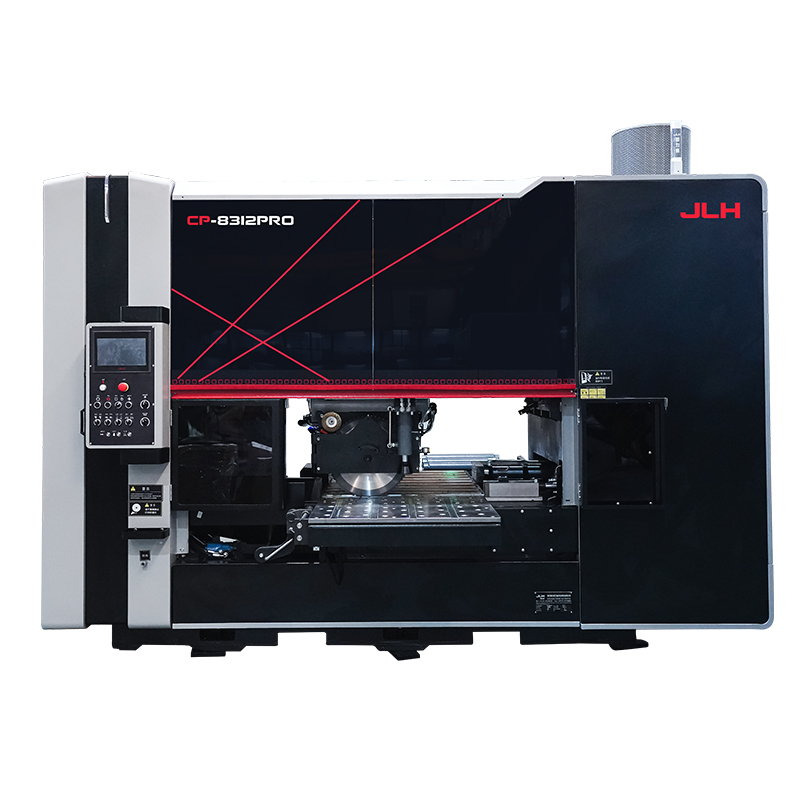

| CP-8312PRO | |||
Cutting range | Cutting range square (W x H) | 830*130mm | 32.67*5.1in |
Shortest length of cut-off piece | 20*20mm | 0.8*0.8in | |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 100mm | 4in | |
Shortest remnant length individual cut | 40mm | 1.6in | |
| Dimensions and weight | Length | 2500mm | 98.4in |
| Width incl. chip conveyor | 3700mm | 145.7in | |
| Height | 2700mm | 106.3in | |
| Material support height | 720mm | 8.4in | |
Total weight | ≈7700kg | ≈16975lb | |
| Performance characteristics | Total connected load | 35kw | 46.7hp |

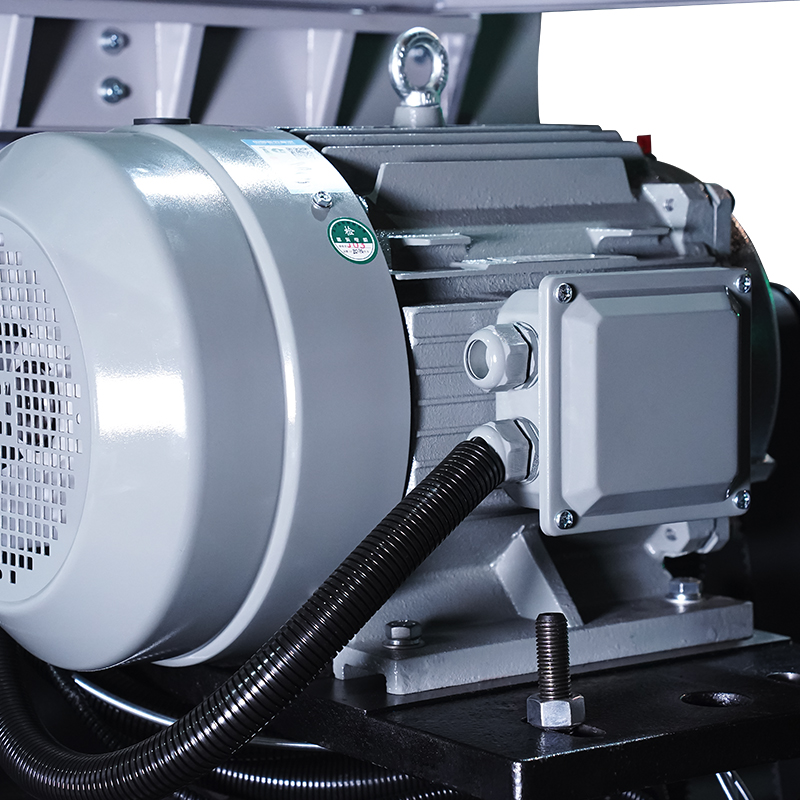

Power of saw motor | 30kw | 40hp | |
Hydraulic motor | 2.2kw | 2.9hp | |
Cutting speed infinitely variable with | 40-100rpm/min | ||
Saw feed speed | 1-700mm/min | 0.04-27in/s | |
| Automatic material feed length, single stroke | 500mm | 19.69in | |
| Automatic material feed length, multiple stroke | 9999mm | 393.66in | |
| Saw blade diameter | Ø460mm | Ø18.11 | |
| Saw blade bores | Ø50mm | Ø1.96 | |
| Saw blade thickness | 2.7mm*2.25mm | 0.1in*0.08in | |
| Configuration Table | ||
| Category of configuration | Functional description | CP-8312PRO |
| Exterior Protection Sheet Metal | CE standard fully enclosed protection | ● |
| SAW FEED SYSTEM | 0 degree servo feed | ● |
| Saw Master | ○ | |
| ELECTRICS | CE Electrical Safety | ● |
UL Electrical Safety | ○ | |
| Permanent Magnetic synch. Motor | ● | |

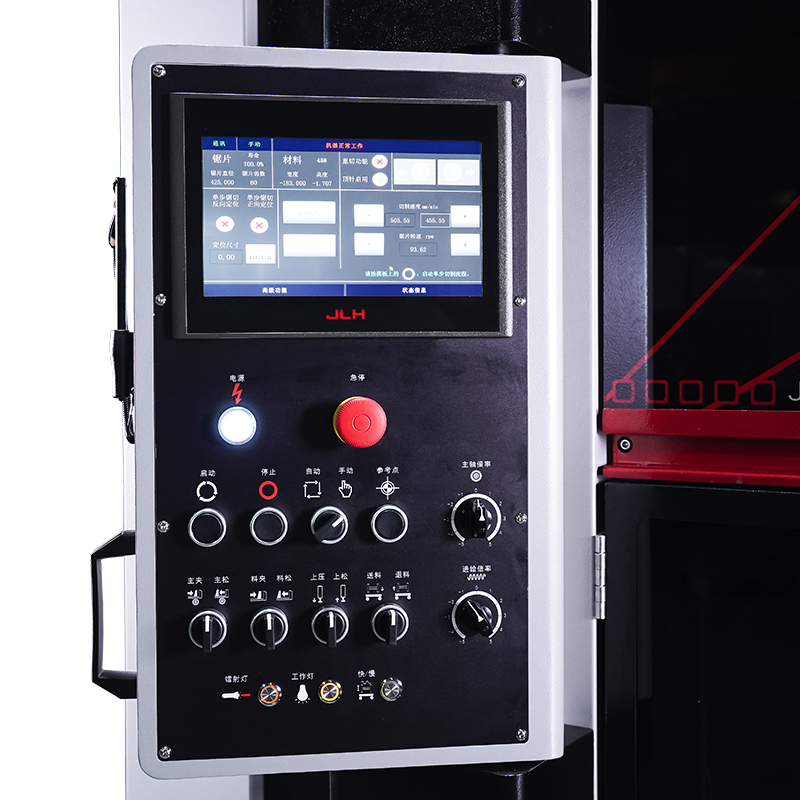

| HMI+Buttons | ● | |
Inverter | ● | |
Mistspray system (2L) | ● | |

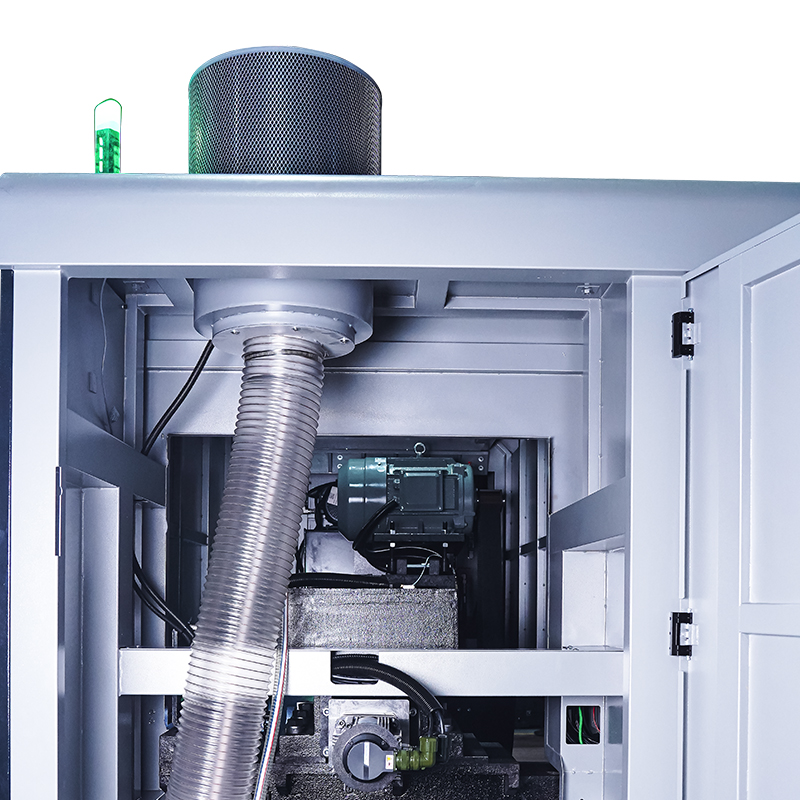

| Dust collection device | ● | |
| Cutting pipe blast device | × | |
| Cabinet air conditioner | ● | |
| LED working light | ● | |
| HYRAULICS | Automatic chip conveyor (spiral) | ● |
| Vise pressure regulator | ○ | |

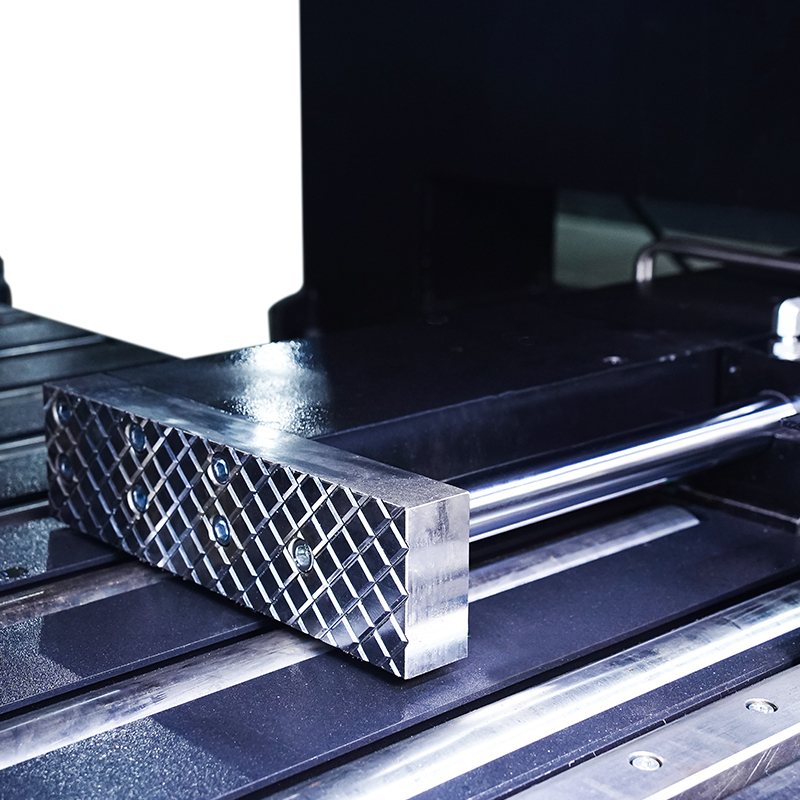

| Top clamp | ● | |
| Hydraulic cooling fan | ● | |
| Auto Lubrication device | ○ | |
| MATERIAL FEEDING | Roller type work table | ● |
| Servo Feed | ● | |
| Asian/European metric units | Units: mm/kw/L/m/min | ● |

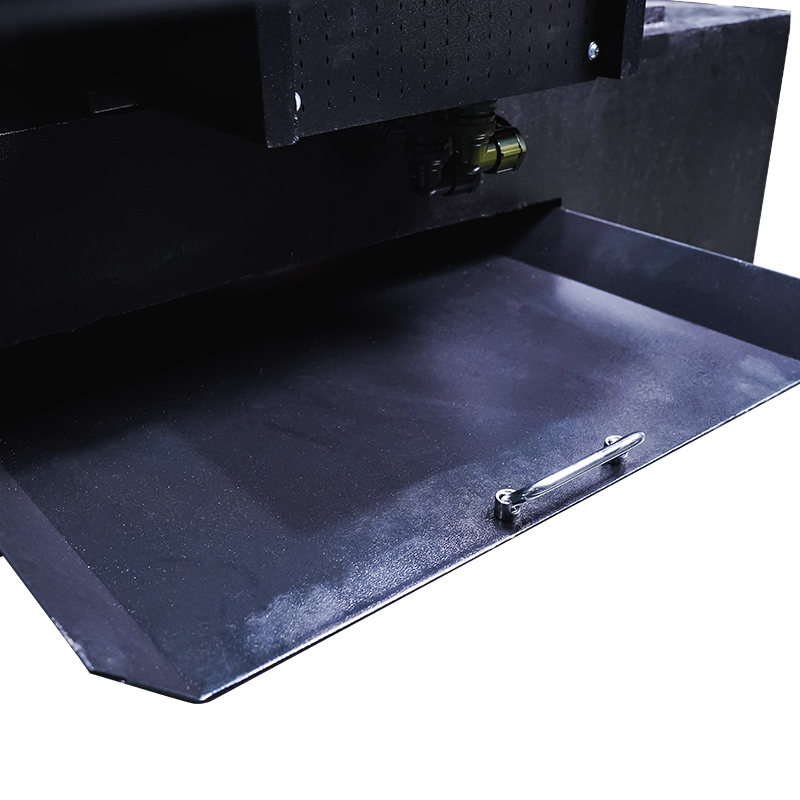

| Other | Sawdust collection Cart 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● | |
| Saw blade | ● | |
| Transport underframe for containers | ○ | |
| ● : Standard ○ : Optional × : Non-optional | ||
