- Specifications
- Configuration Table

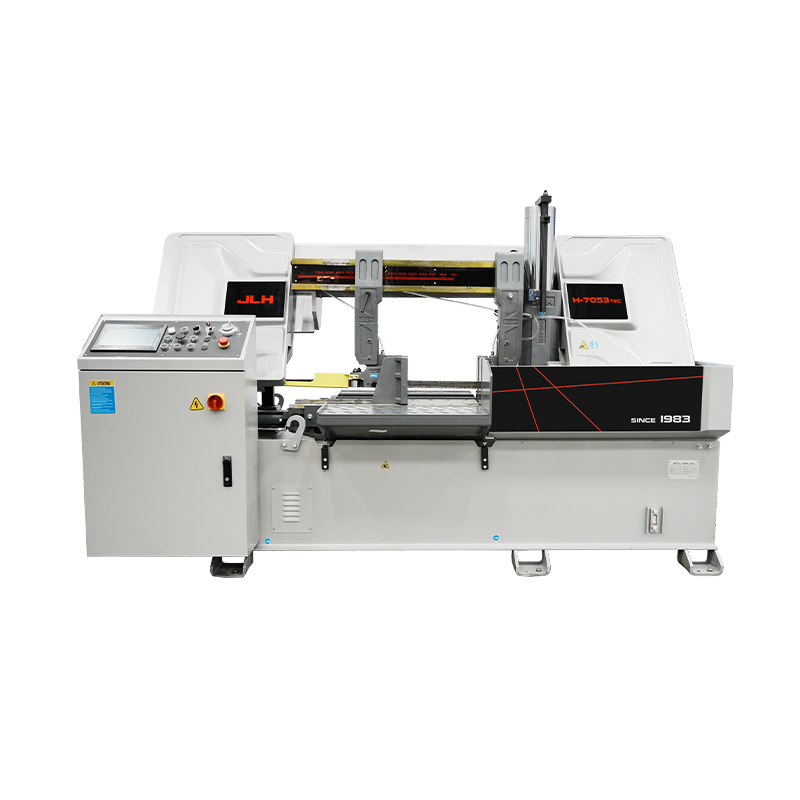

| Specifications | H-7053TEC |
Cutting range round | φ530mm /φ21in |
Cutting range square (W x H) | 700*530mm 27.5*21in |
| Smallest size to be cut | 20*20mm 0.8*0.8in |
| Clamping range | 0-700mm/0-27.5in |
| Length | 1400mm/55.1in |
| Width incl. chip conveyor | 3480mm/137in |
| Height | 2230mm/87.8in |
Material support height | 860mm/33.86in |
| Total weight | ≈2800KG/6172lb |
| Total connected load | 9.5kw/12.67hp |
| Power of saw motor | 7.5kw/10hp |
| Hydraulic motor | 1.5kw/2hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 6650*54*1.6mm 261.8* 2.1 *0.06in |
| Functional description | H-7053TEC |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ○ |
Blade breakage detection | ● |
Sawing Depth Control | ○ |

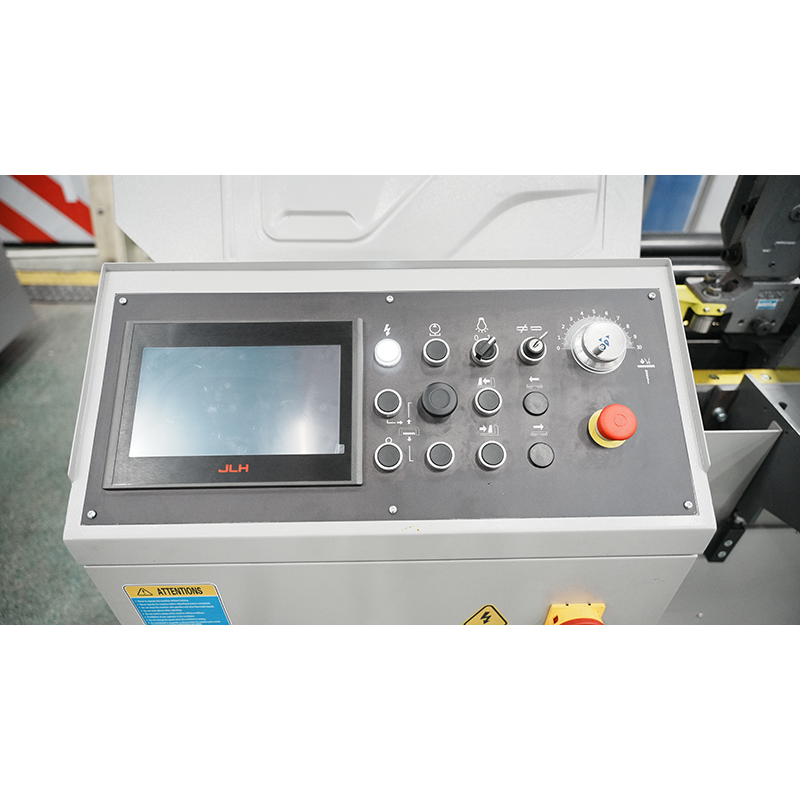

| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ○ |

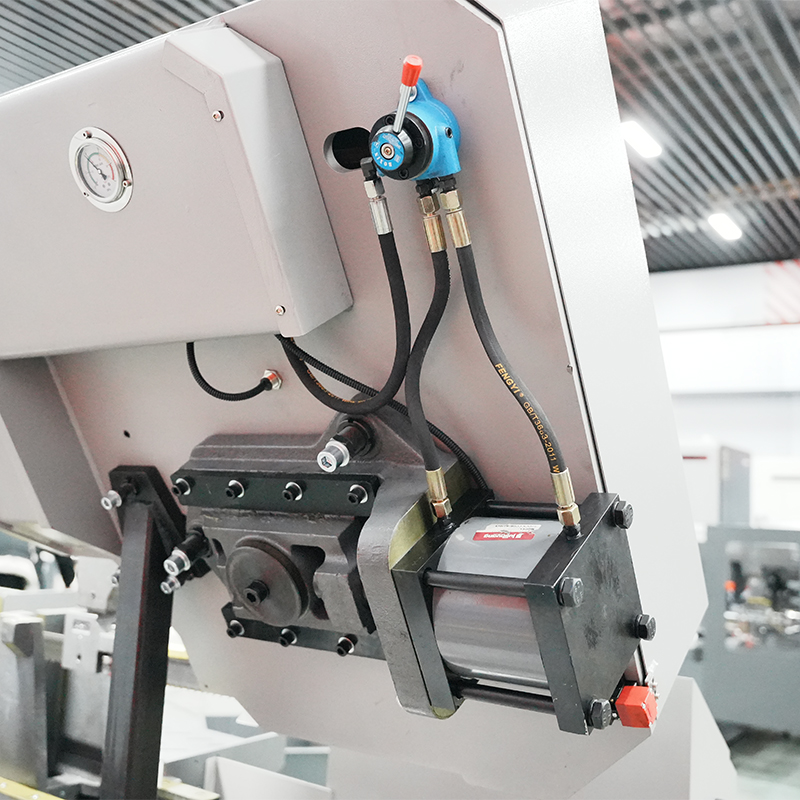

| Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● |

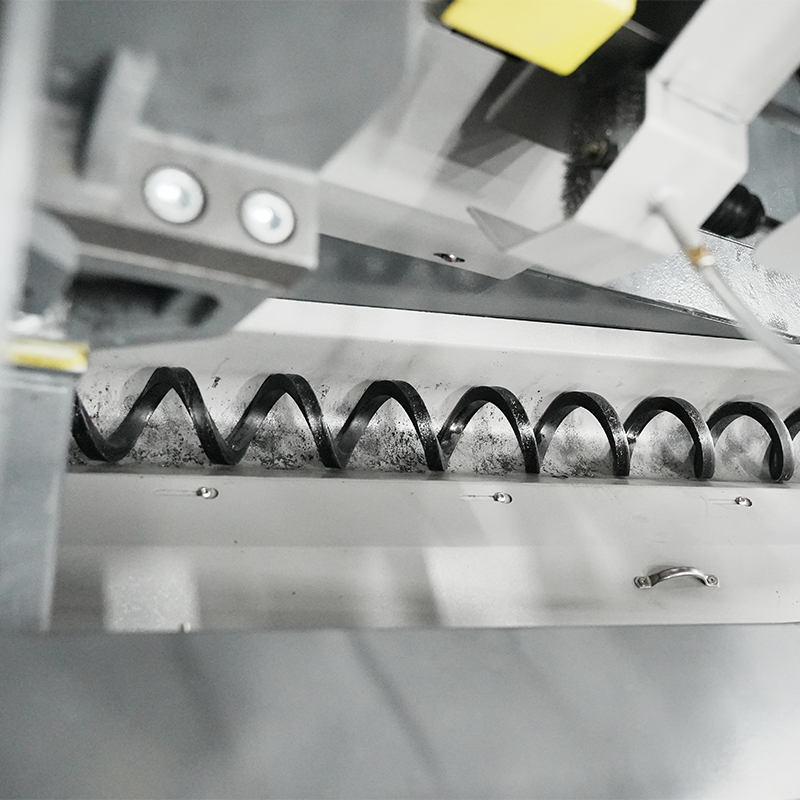

| Automatic chip conveyor (spiral) | ● |
| Hydraulic blade guide clamping | ○ |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | ○ |
| Hydraulic cooling fan | ● |
| Main drive precision gear reducer | ● |

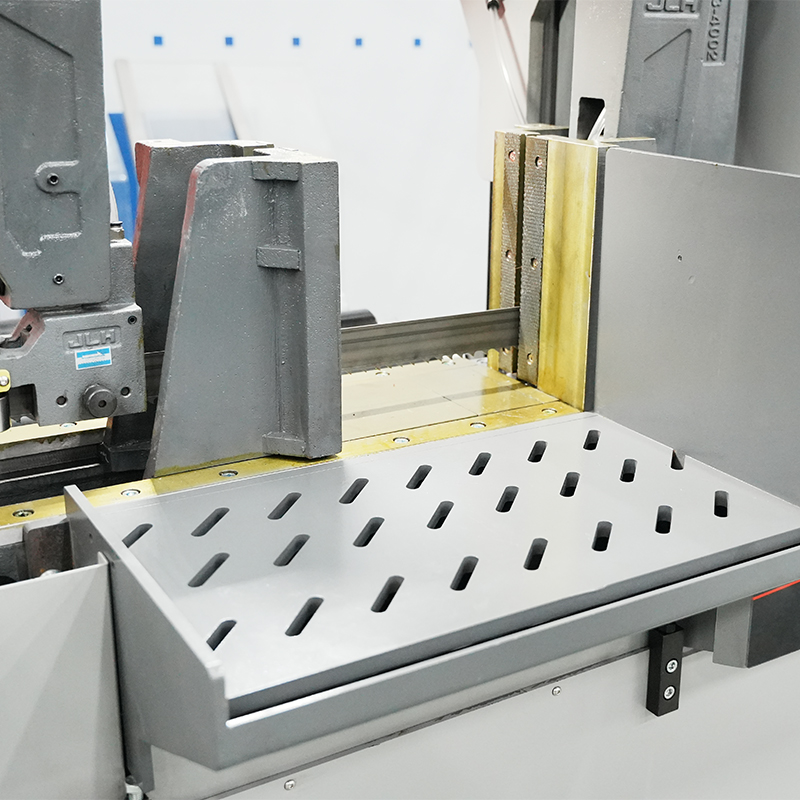

| Split Vise clamping | ● |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
